Delta VFD-L Series User Manual

5
VFD-L Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-19

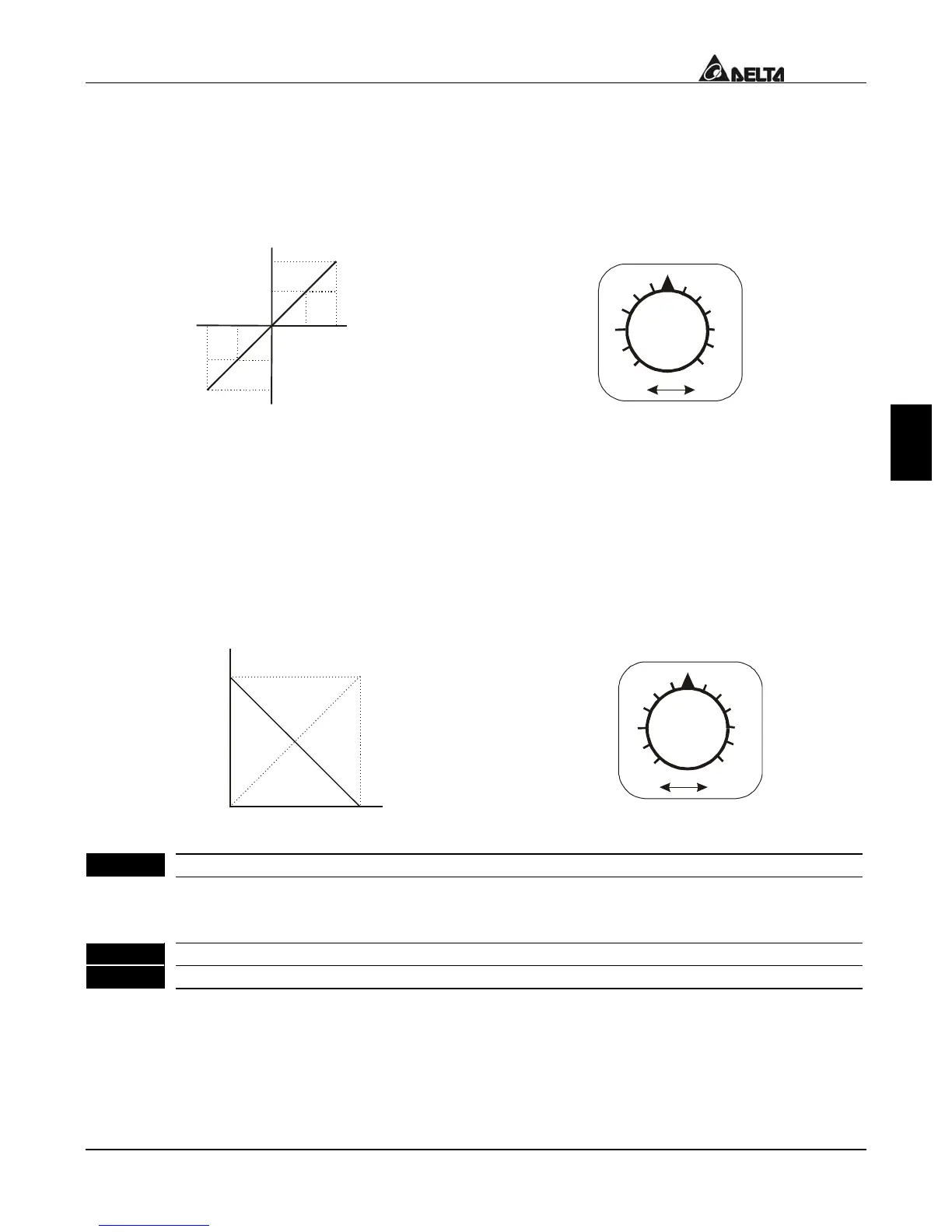

Example 7:
In this example, the potentiometer is programmed to run a motor is both forward and reverse
direction. A motor will be idle when the potentiometer position is at mid-point of its scale.
Using Pr.4-03 will disable the external FWD and REV controls.
Hz
0V
10V
0
60
Potentiometer Scale
Max.
Output
Freq.
Pr.1-00
Parameter Settings
Pr.1-00=60Hz--Max. output Freq.
Pr.4-00=30Hz--Potentiometer bias freq.
Pr.4-01=1 -- bias polarity
Pr.4-02=200% -- pot. freq. gain
Pr.4-03=1 -- pot. REV motion enable
60Hz
30Hz
0Hz
0V
5V
10V
30Hz
60Hz
REV
FWD
REV.
FWD.
60
Example 8:
In this example, the option of anti-slope is shown. Anti-slope is used in an application where
control of pressure, temperature, or flow is needed. Under a high pressure or flow situation,
a sensor will generate a large signal such as 20 mA or 10V. With anti-slope enable, the
large signal will slow or stop the AC drive
Hz
0V
4mA
10V
20mA
30
0
60
Potentiometer Scale
Max.
Output
Freq.
60Hz
Pr.1-00
0Hz
0V
4mA
10V
20mA
Parameter Settings
Pr.1-00=60Hz--Max. output Freq.
Pr.4-00=60Hz--Potentiometer bias freq.
Pr.4-01=1 -- bias polarity
Pr.4-02=100% -- pot. freq. gain
Pr.4-03=2
anti-slope
4 - 04
M
ulti-function Input Terminal (M0, M1)
F
actory Setting: d 1
Settings d 0 to d 20
4 – 05
M
ulti-function Input Terminal (M2)
F
actory Setting: d 6
4 – 06
M
ulti-function Input Terminal (M3)
F
actory Setting: d 7
Settings d0, d 4 to d 20

Delta VFD-L Series Specifications

General

Control Method	V/F Control
Output Voltage	0 to Input Voltage
Cooling Method	Fan Cooling
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Protection	Over-voltage, Over-current, Overheat, Under-voltage, Short circuit
Braking Unit	Built-in
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Digital Inputs	5 programmable digital inputs
Analog Input	0-10V, 4-20mA
Communication Interface	RS-485 (Modbus)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	90% RH, non-condensing
Altitude	Up to 1000m without derating
Input Voltage	200-240V, 380-480V
