From the diagram shown below, the original setting accel/decel time will be for
reference when the function of the S-curve is enabled. The actual accel/decel time
will be determined based on the S-curve selected (d1 to d7).

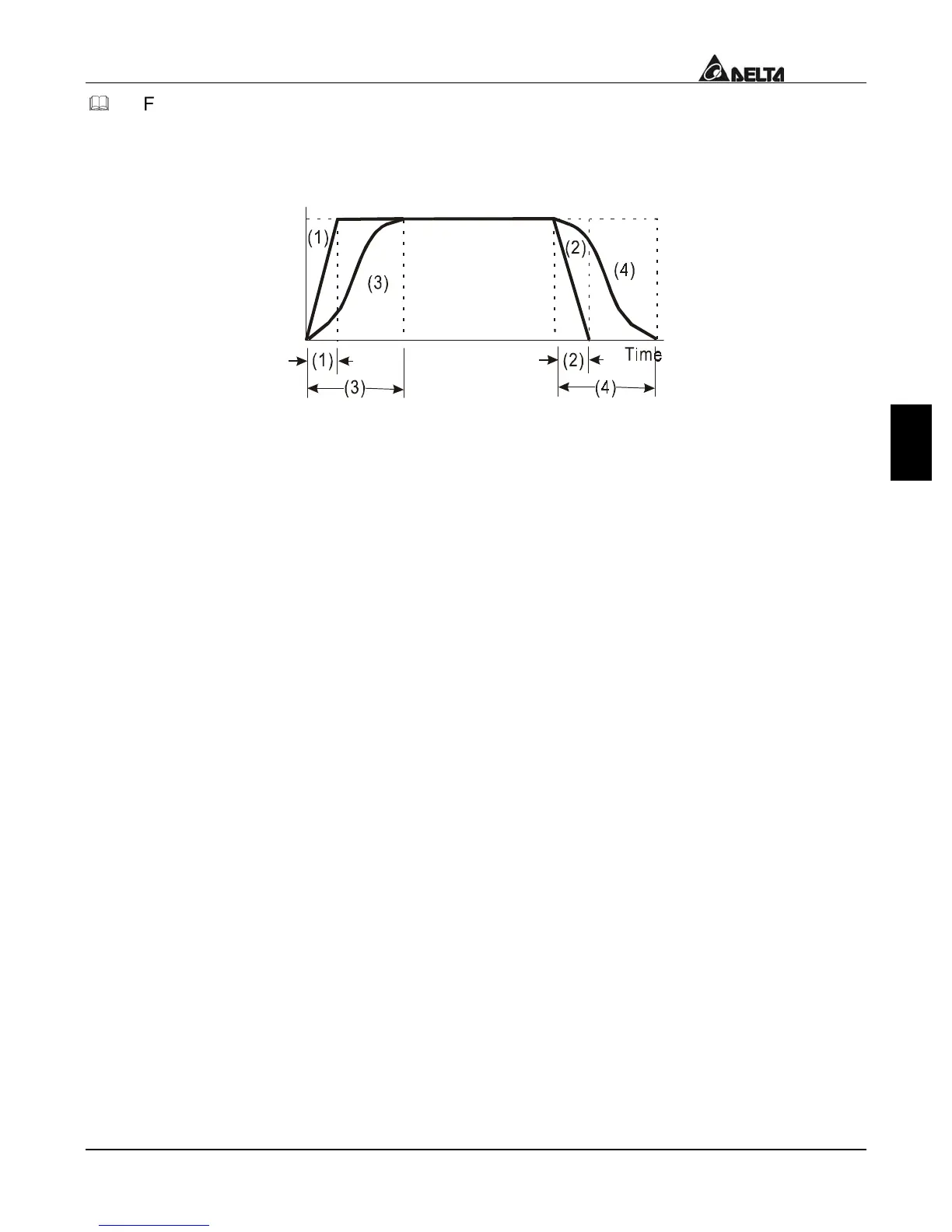

Freq.
Accel/Decel characteristics
(1), (2) Disabling S curve
(3), (4) Enabling S curve

Delta VFD-L Series Specifications

General

Control Method	V/F Control
Output Voltage	0 to Input Voltage
Cooling Method	Fan Cooling
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Protection	Over-voltage, Over-current, Overheat, Under-voltage, Short circuit
Braking Unit	Built-in
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Digital Inputs	5 programmable digital inputs
Analog Input	0-10V, 4-20mA
Communication Interface	RS-485 (Modbus)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	90% RH, non-condensing
Altitude	Up to 1000m without derating
Input Voltage	200-240V, 380-480V
