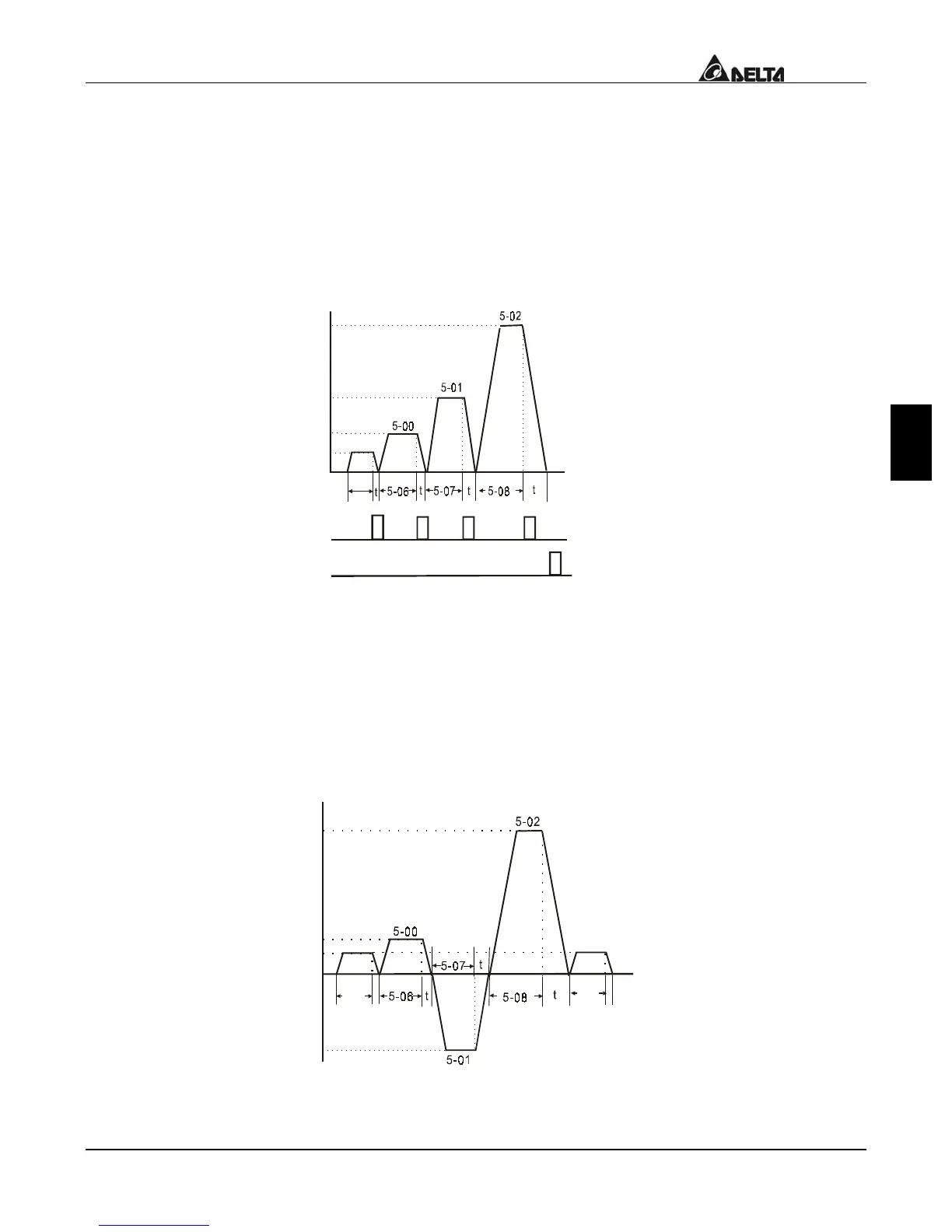

Example 3 (Pr. 5-03 = d3) Execute one cycle step by step:
The example shows how the PLC can perform one cycle at a time, within a complete
cycle. Each step will use the accel/decel times in Pr.1-09 to Pr.1-12. It should be
noticed that the time each step spends at its intended frequency is diminished, due to the
time spent during accel/decel.
Frequency
40Hz
30Hz
20Hz
15Hz
10Hz
0Hz
Program step
complete
When 3-03=11
Program operation
completed
When 3-03=12
5Hz
5-05
Master freq.=5Hz
5-00=10 Hz
5-01=20
Hz
5-02=40 Hz
4-06=16
5-03=d3
5-04=d0
5-05=10
5-06=10
5-07=12
5-08
Sec
Sec
Sec
=15 Sec
Time
(Sec)
Example 4 (Pr. 5-03 =d 4) Continuously execute PLC cycles step by step:
In this explanation, the PLC program runs continuously step by step. Also shown are
examples of steps in the Reverse direction.
Frequency
40Hz
20Hz
15Hz
10Hz
0Hz
Time
(Sec)
FWD
REV
t
5-05
Master freq.=5Hz
5-00=10 Hz
5-01=20
Hz
5-02=40 Hz
4-06=17
3-03=12
5-03=d4
5-04=d0
5-05=10
5-06=10
5-07=12
5-08
Sec
Sec
Sec
=15 Sec
t
5-05

Delta VFD-L Series Specifications

General

Control Method	V/F Control
Output Voltage	0 to Input Voltage
Cooling Method	Fan Cooling
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Protection	Over-voltage, Over-current, Overheat, Under-voltage, Short circuit
Braking Unit	Built-in
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Digital Inputs	5 programmable digital inputs
Analog Input	0-10V, 4-20mA
Communication Interface	RS-485 (Modbus)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	90% RH, non-condensing
Altitude	Up to 1000m without derating
Input Voltage	200-240V, 380-480V
