XSC firmware Electrical characteristics
XBee®-PRO 900HP/XSC RF Modules
185

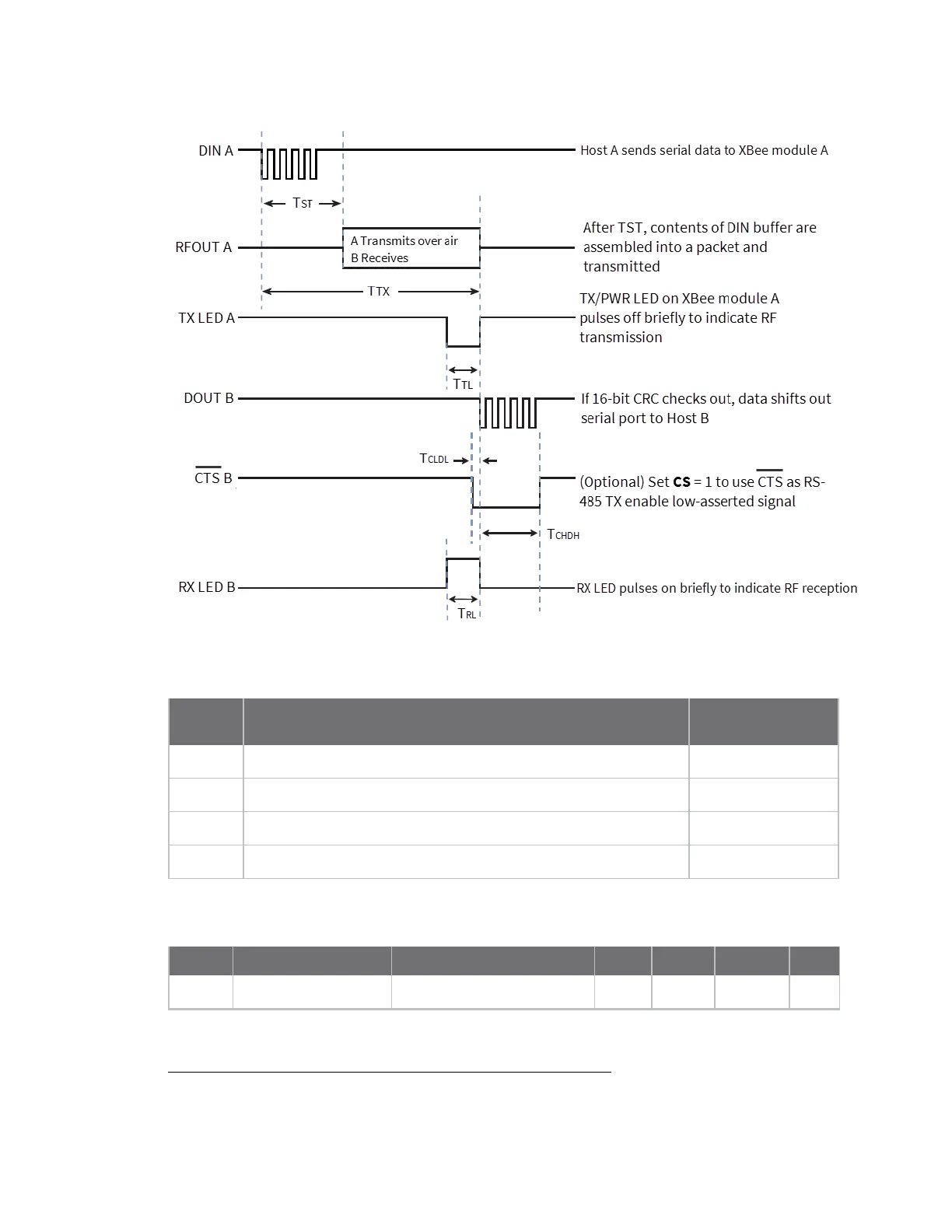

The following table provides typical AC characteristics when SY = 0. The symbols correspond with the
previous two figures.
Symbol Description
9600 baud rate
(32 byte packet)
T
TX
Latency from the time data is transmitted until received 72.0 ms
T
TL
Time that TX/PWR pin is driven low 16.8 ms
T
RL
Time that RX LED pin is driven high 25.6 ms
T
ST
Channel Initialization Time 35.0 ms
The following table provides typical DC characteristics when V
CC
= 3.0 - 3.6 VDC.
Symbol Parameter Condition Min Typical Max Units
V
cc
Modulesupplyvoltage 3.0
1
3.6 V
1
The minimum voltage for S3B is 2.1 V, however maximum power is reduced and sensitivity may degrade.
