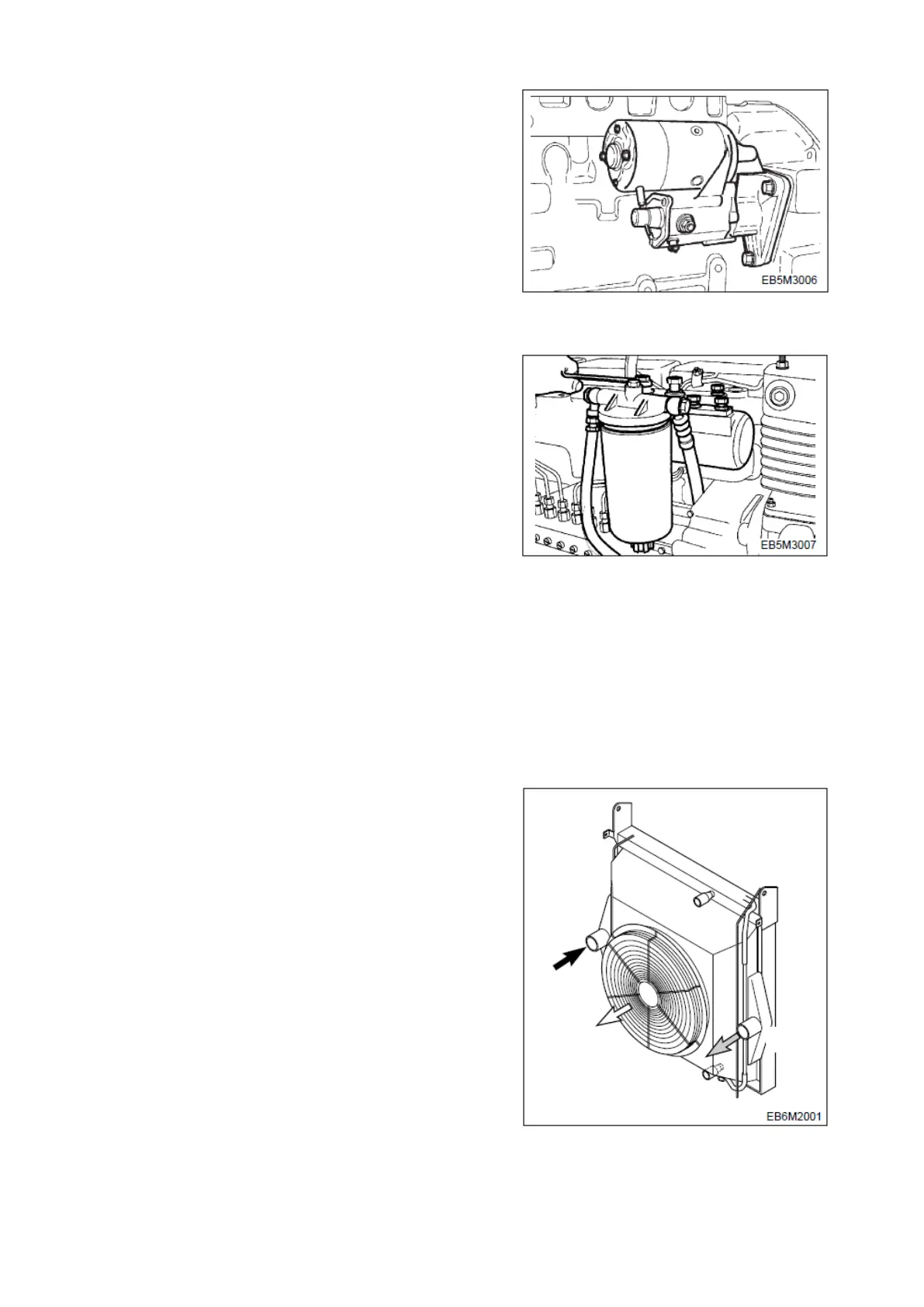

3.1.8 Starter
Unscrew the starter fixing nuts and remove the starter
being careful not to damage its gears.
3.1.9 Fuel filter
Remove the hollow screws of filter and tear down fuel
supply and discharge rubber hose.
Remove fuel filter fixing bolts and disassemble the fuel
filter. (If the fuel filter is of cartridge type, disassemble
the cartridge element only.)
3.1.10 Breather
Loosen the clamp screw to remove the rubber hose.
3.1.11 Intercooler (D1146TI, DE08TIS)
Tear down the various hoses and air pipes from the inter
cooler.
Remove the intercooler fixing bolts and tear it down.
SPC000006 5ton Diesel Engine
Page 32
