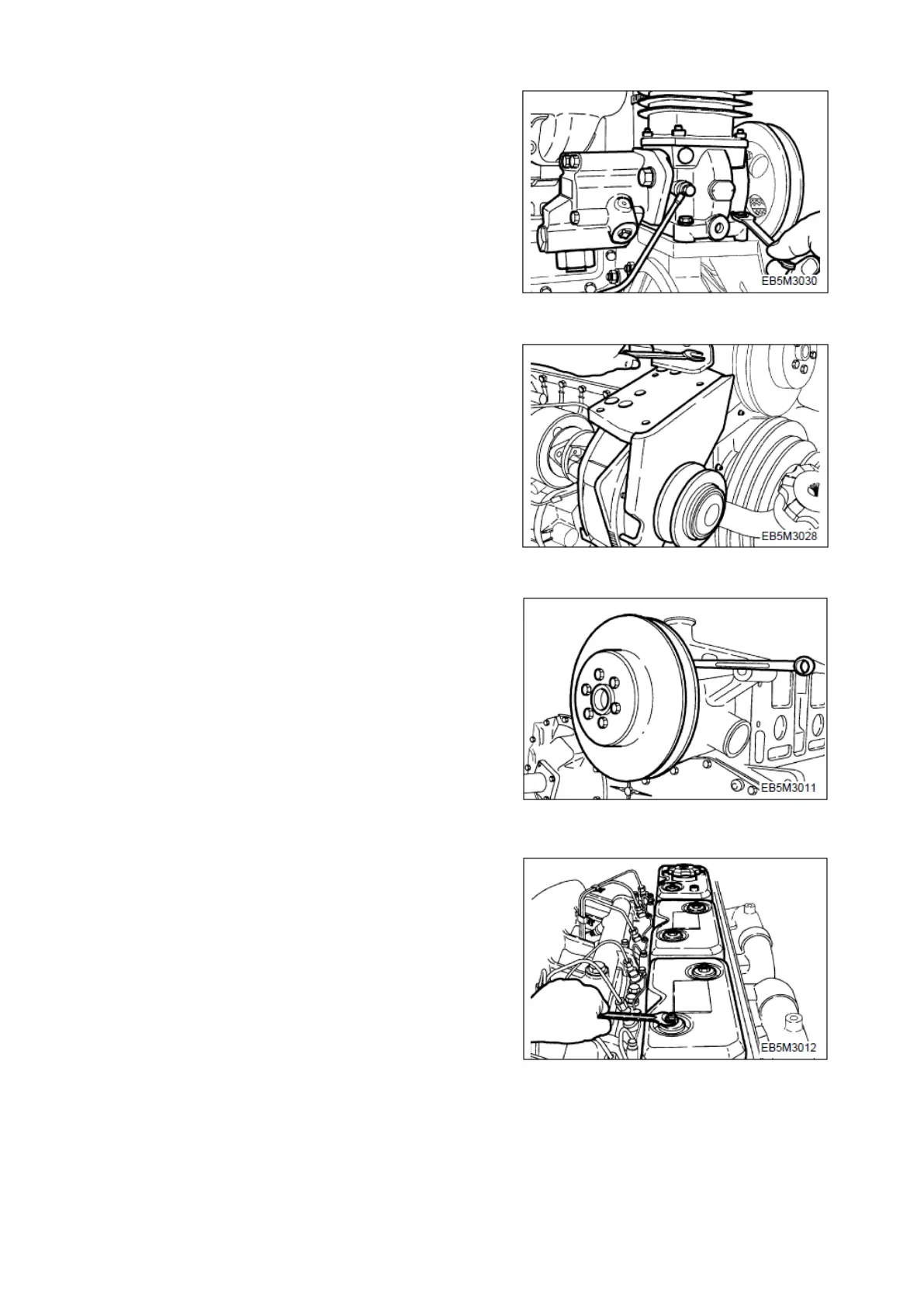

3.1.16 Air compressor
Remove the oil pipe between cylinder block and air
compressor.
Unscrew the air compressor fixing bolts and take off the
air compressor.
3.1.17 Idle pulley
Unscrew the idle pulley fixing bolts and take off the idle
pulley.
3.1.18 Water pump
Unclamp the rubber hose connected to the oil cooler.
Unscrew the water pump fixing bolts from the cylinder
block and take off the water pump.
3.1.19 Cylinder head cover
Remove the head cover fixing bolts and lift the cylinder
head cover.
SPC000006 5ton Diesel Engine
Page 34
