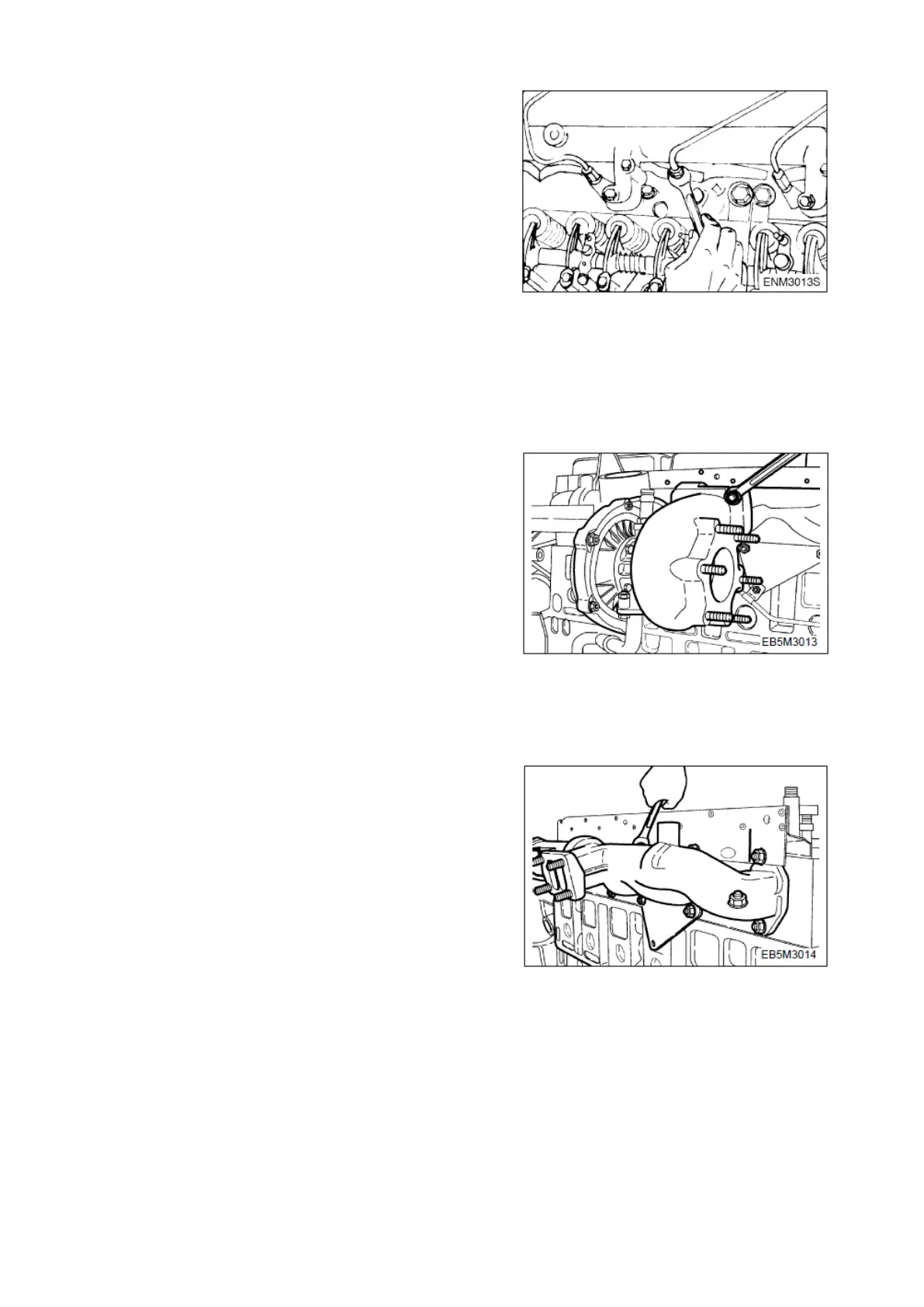

3.1.20 Fuel injection nozzle
Unscrew the fuel injection pipe between the injection
pump and nozzle and take off the pipe.
Install a special jig on the nozzle holder, and then pull
out the nozzle as striking the hammer of the jig
backwardly.
Caution :
Take care not to damage the nozzle at disassembly.
Take out the seal ring from the nozzle hole of the
cylinder head and discard it.
3.1.21 Turbo charger (D1146TI, DE08TIS)
Remove the oil supply pipe and oil return pipe between
the turbo charger and the cylinder block.
Unclamp the rubber hose connected the intercooler and
air cleaner.
Unscrew the turbo charger fixing nuts and take off the
turbo charger from the exhaust manifold.
3.1.22 Exhaust manifold
Unscrew the exhaust manifold fixing nuts and remove
the heat shield from the exhaust manifold.
Then disassemble the exhaust manifold and gasket.
Scrap the used gasket.
5ton Diesel Engine SPC000006
Page 35
