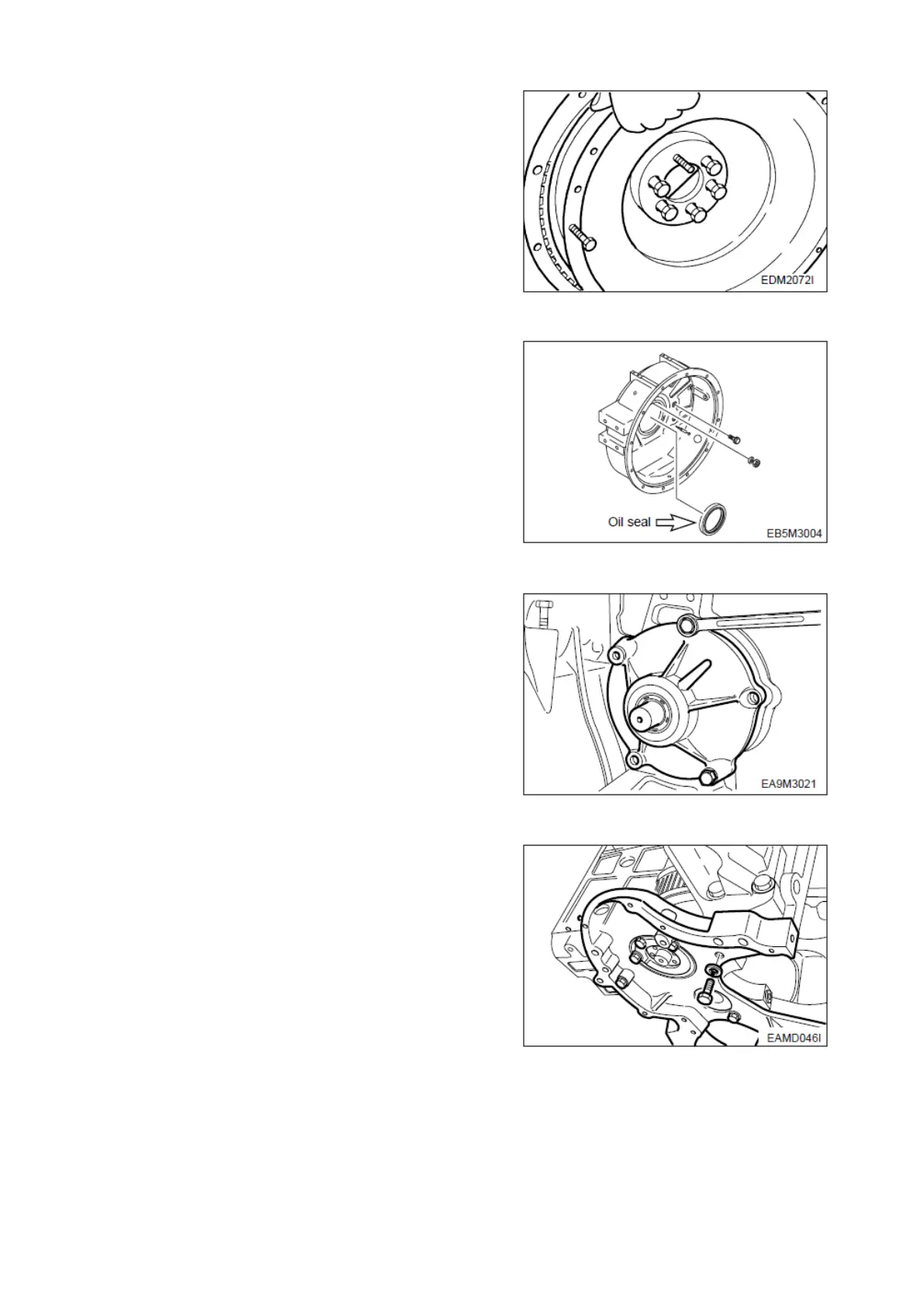

3.1.36 Fly wheel
Remove the flywheel fixing bolts and disassemble it.
The bolt removal is done by the reverse order of
assembling and by the steps.
3.1.37 Fly wheel housing
Remove the flywheel housing fixing bolts and
disassemble the flywheel housing.
Disassemble the oil seal of flywheel housing.
3.1.38 Injection pump drive gear
Unscrew the drive gear housing fixing bolts and remove
the drive gear assembly.
3.1.39 Timing gear case
Remove the timing gear case assembling bolts.
By tapping lightly with a urethane hammer the right and
left back of timing gear case‘s connecting part,
disassemble the timing gear case.
SPC000006 5ton Diesel Engine
Page 42
