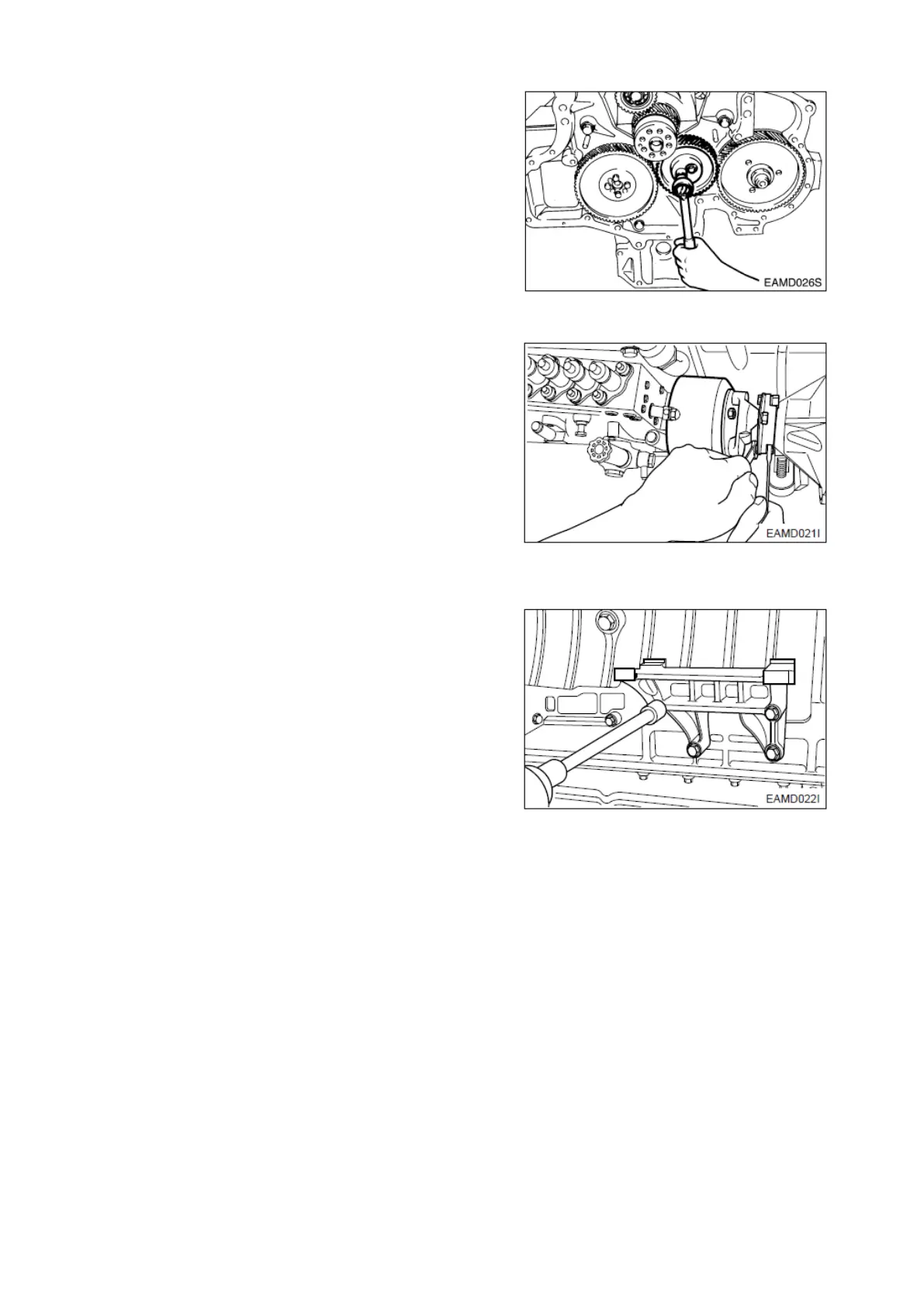

Unscrew two bolts fixing the idle gear, then remove the
idle gear and its pin.
3.1.34 Fuel injection pump
Disassembly the oil hose for lubrication.
Remove the bolts and nuts of injection pump flange.
Unscrew the injection pump fixing bolts and remove the
injection pump by lifting it up.
Remove the bracket fixing bolts of injection pump, and
disassemble by pulling the injection pump backward.
3.1.35 Water chamber cover
Unscrew the fixing bolts and remove the water chamber
cover.
Remove the remnant gasket thoroughly.
5ton Diesel Engine SPC000006
