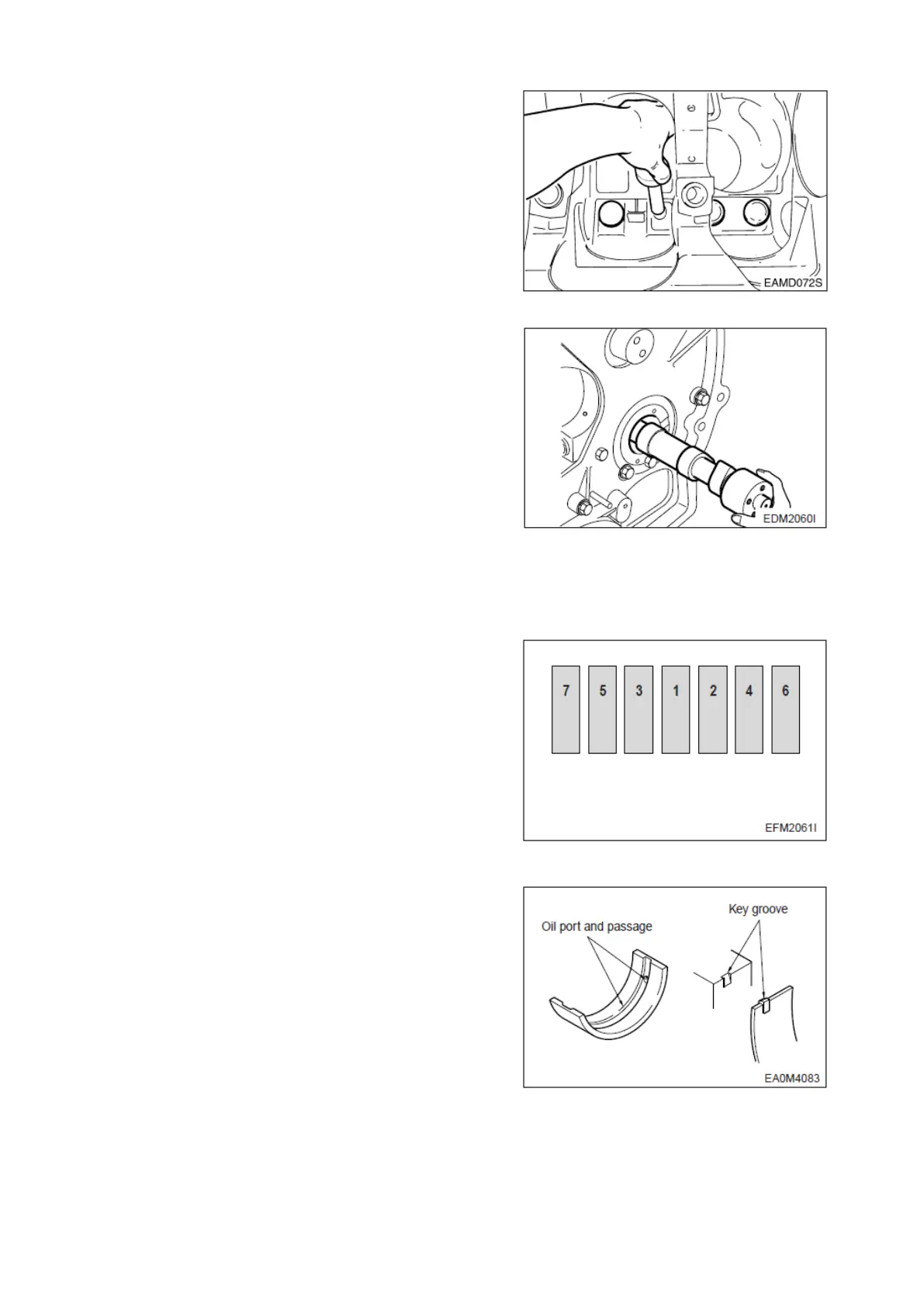

Apply engine oil to the entire face of the tappets and
slide them into the tappet holes on the cylinder block.
Wet the cam bush inside diameter and camshaft with
oil, and carefully assemble them while turning the
camshaft.
Caution:
Be careful not to generate a damage to camshaft and
bush.
Check to see that the camshaft rotates smoothly.
3.3.5 Crankshaft
Install the main bearing (refer to assemble sequence:
right figure) machined with two holes in the cylinder
block so that the key is aligned with the key groove, then
apply oil to the bearing surface.
SPC000006 5ton Diesel Engine
Page 64
