3.3.10 Water chamber cover
Coat the adhesive over the water chamber cover
(Particular around bolt holes) and after attaching the
gasket, assemble it to the cylinder block using the bolts
for assembling.
As for tightening of bolts, after primarily tightening the
bolts located at the both ends of cover (4ea at both sides)
and middle bolts (Upper, lower 2ea) , tighten the rest.

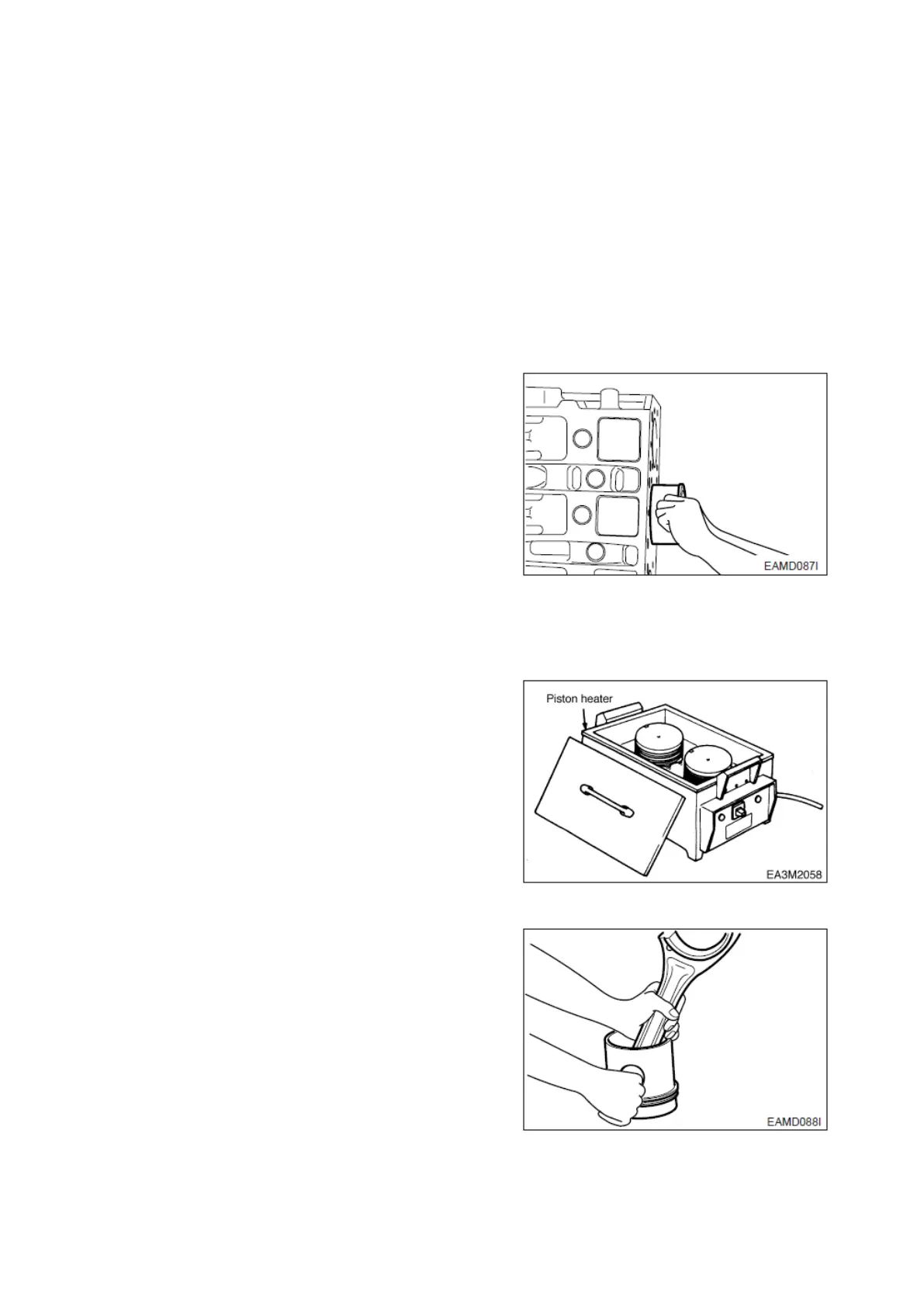

3.3.11 Cylinder liner
Stand the cylinder block so that the flywheel faces
downward.
Thoroughly clean the liner flange fitting surface and
bore inside with compressed air to prevent the entry of
foreign substances.
After the cleaning operation, make the cylinder liner
dried up and push it into the cylinder block by hand.
Wet the liner inside diameter with engine oil.
3.3.12 Piston and connecting rod
Use a piston heater to heat the piston approximately
100 °C (212 °F) for 5 minutes.
Align the piston pin hole with the oiled connecting rod
small end and press the piston pin (by lightly tapping
with a rubber hammer) to assemble the connecting rod
with the piston.
5ton Diesel Engine SPC000006
Page 69
