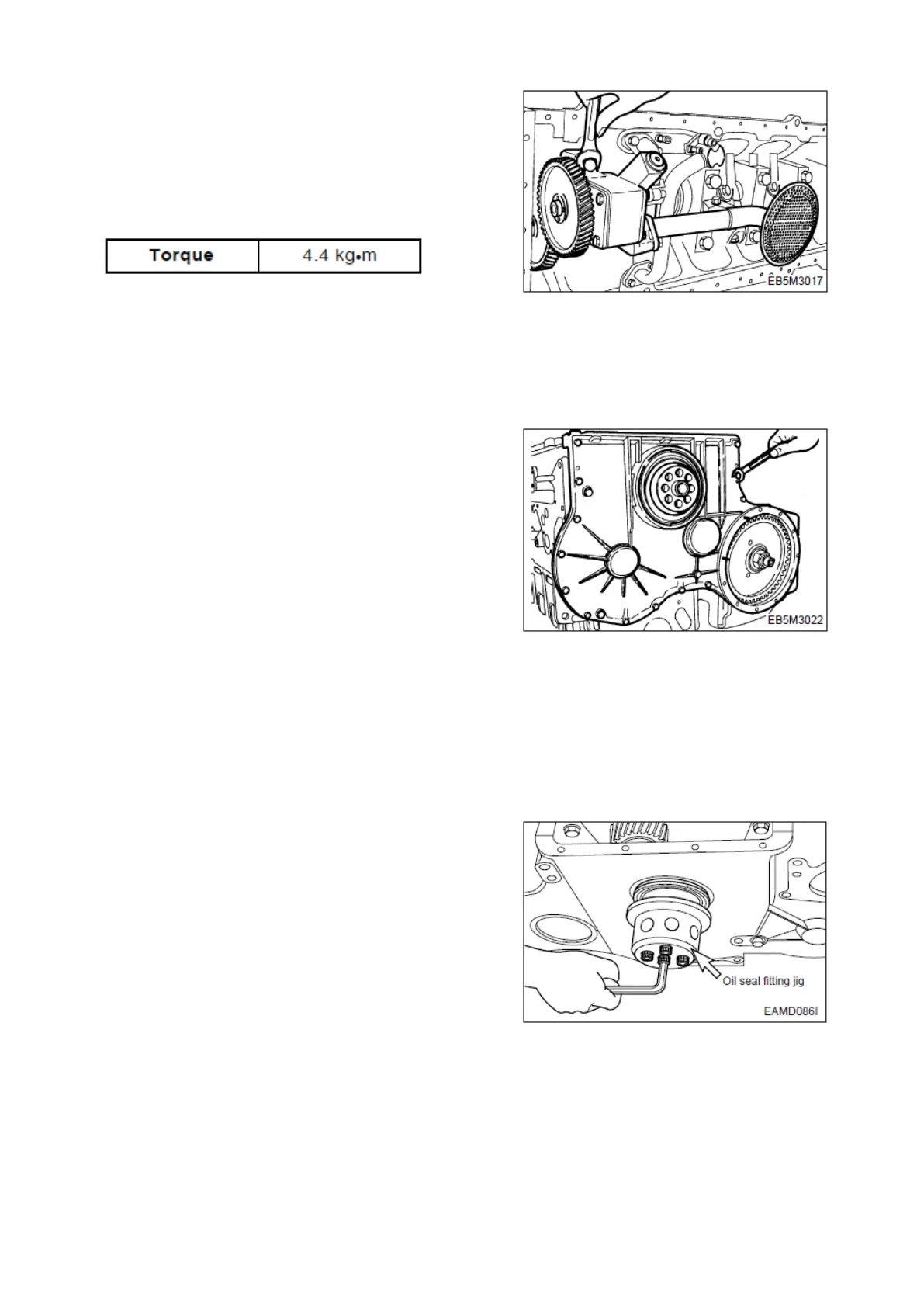

3.3.17 Oil pump and oil pipe
Install a dowel pin in the No.7 bearing cap, then
assemble the oil pump by tapping lightly with urethane
hammer.
Tighten the assembling bolts with specified torque.
Assemble the oil suction pipe with the delivery pipe to
oil pump by the bolts.
3.3.18 Timing gear case cover
Install dowel pin on the timing gear case.
Mount a gasket by aligning the fixing bolt holes with
those on the gasket.
Align the dowel pin with the cover pin hole, then install
the cover with light tap.
Tighten the fixing bolts beginning with the oil pan
fitting face.
Caution:
In the assembling, be careful not to be damaged by
the crankshaft.
3.3.19 Front oil seal
Apply lubricating oil to the outside of the oil seal and
the oil seal hole of the timing gear case cover.
Put the new oil seal on the oil seal hole of timing gear
case cover aligning the center of them, then assemble
the oil seal using an oil seal fitting jig.
SPC000006 5ton Diesel Engine
Page 76
