3.3.20 Water pump
Mount a new gasket.
Install the water pump on the cylinder block and
tighten the assembling bolts with specified torque.
Connect water pipes and by-pass pipe to the water
pump.
Connect a water pipe to the expansion tank.
3.3.21 Vibration damper

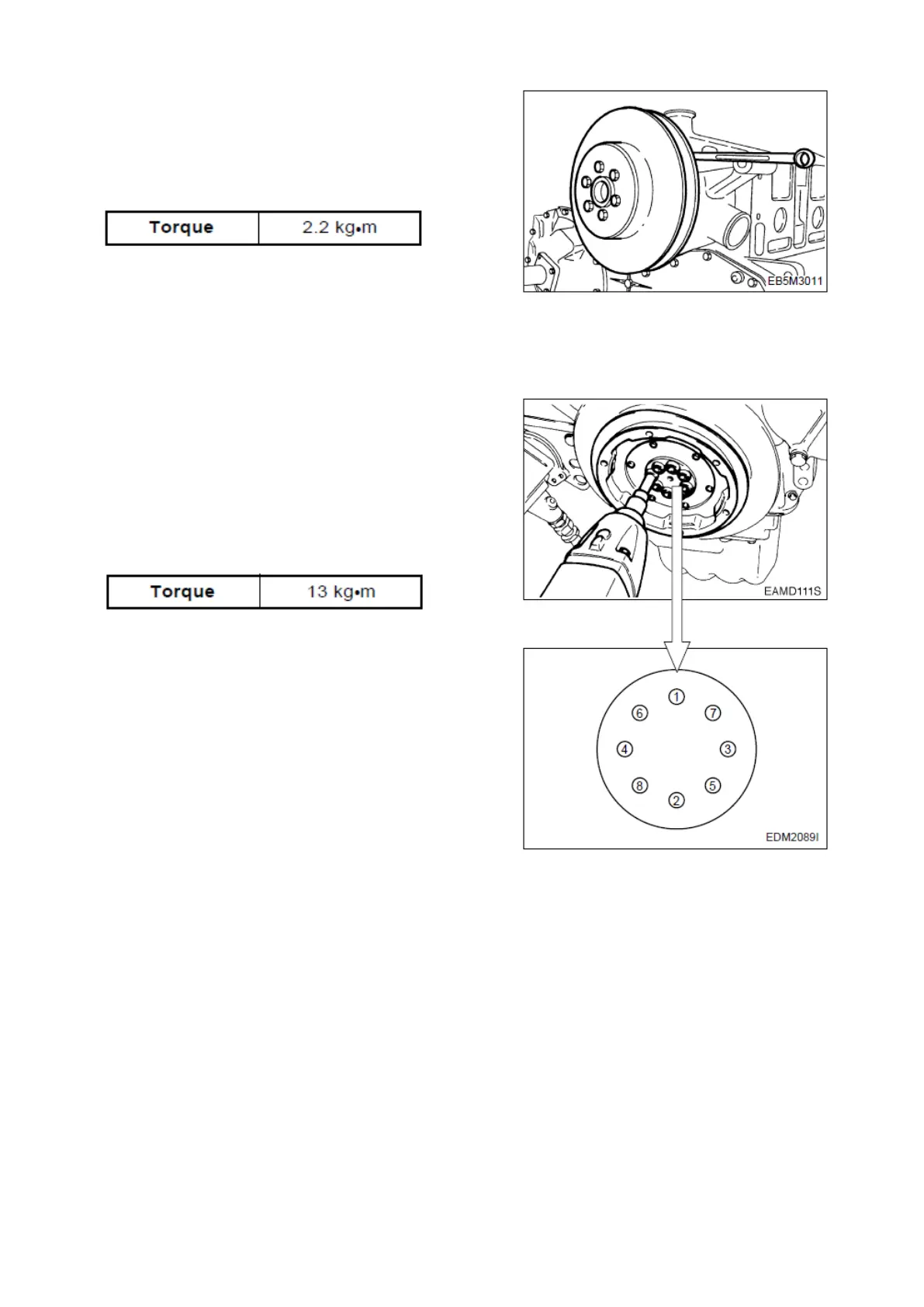

Insert the vibration damper to the crankshaft, and
assemble by tightening the assembling bolts at the
specified tightening torque according to bolt tightening
order. (refer to right figure.)
3.3.22 Oil pan
Remove the gaskets thoroughly that project at the
timing gear case, case cover of cylinder block, and the
contacting part of flywheel housing by means of a
scraper.
Caution:
Be careful for the gasket pieces not fall into the
engine during the work.
Coat the silicone at the gasket part that was removed
(Contacting part), and attach the new oil pan gasket.
