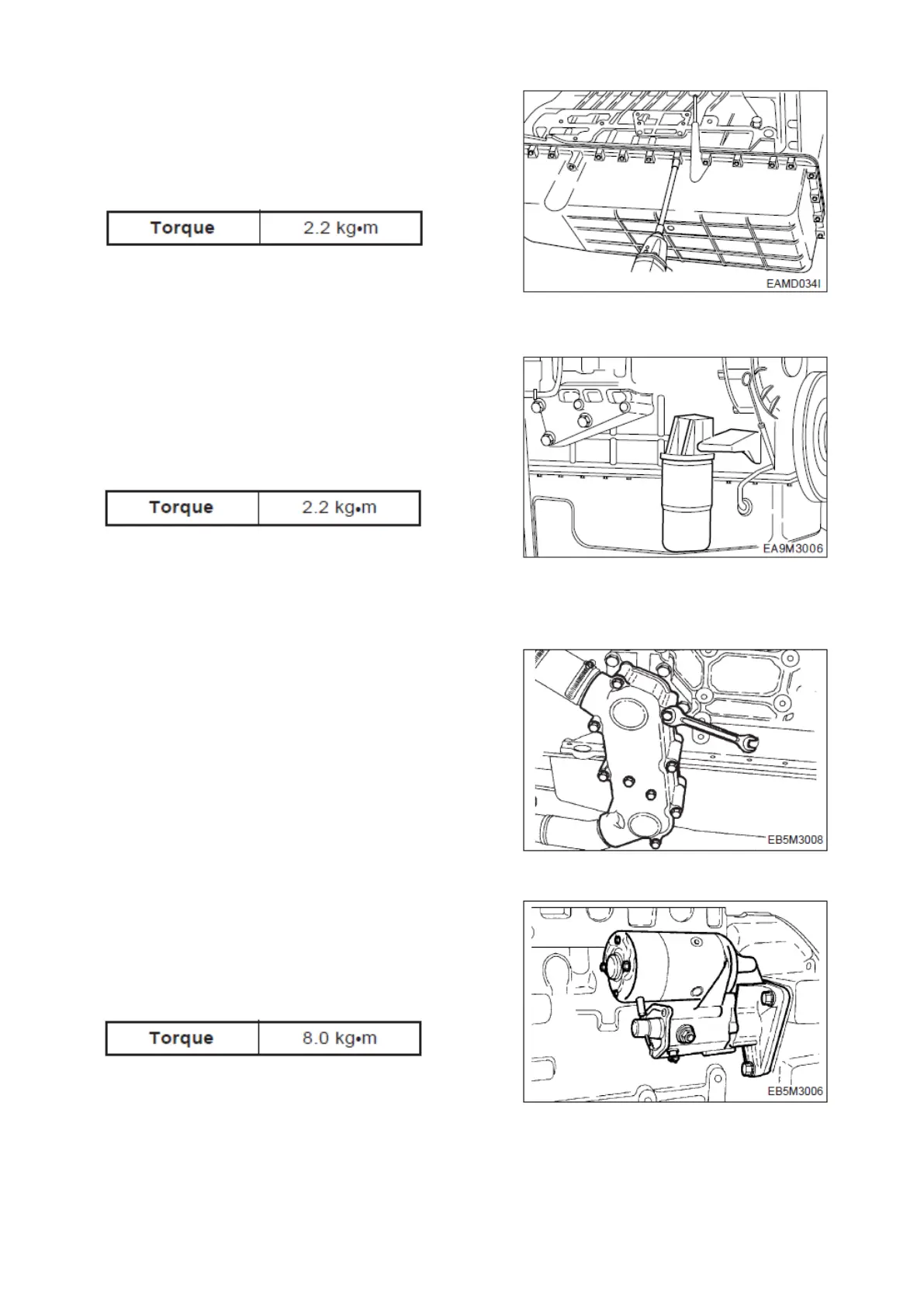

Assemble the oil pan by tightening the oil pan
assembling bolts, and when tightening bolts, primarily
tighten the bolts (4ea) at the both ends, and then tighten
the rest bolts to specified torque.
Caution:
Align the bolt holes with gasket holes to prevent
damage to the gasket and tighten.
3.3.23 Oil filter
Install the oil filter onto the cylinder block, and tighten
the fixing bolts.
Apply engine oil to the oil filter cartridge o-ring and
assemble the cartridge using a filter wrench.
3.3.24 Oil cooler
Install the gasket on the cylinder block.
Assemble the oil cooler by tightening the assembling
bolts.
Connect the cooling water pipe with the cooling water
pump and tighten a hose clamp.
3.3.25 Starter
Assemble the starter in position on the flywheel
housing.
SPC000006 5ton Diesel Engine
Page 78
