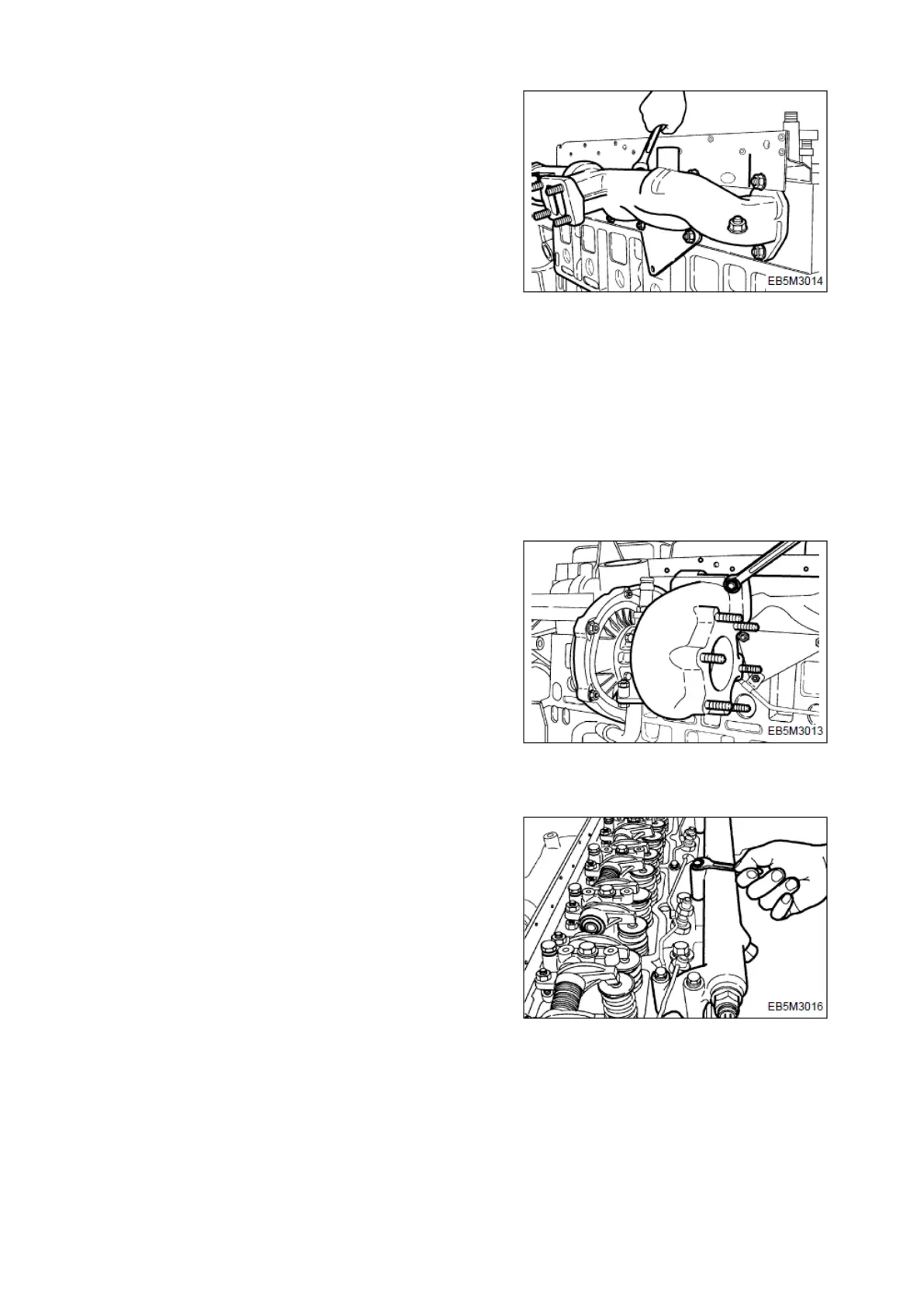

3.3.30 Exhaust manifold
Install the exhaust manifold gasket over the stud bolts
by aligning the gasket with the exhaust port on the
cylinder head so that the face and back of the gasket
can be positioned correctly.
Semi-assemble the exhaust manifold and install the
heat resisting plate.
Assemble them by tightening the assembling bolts.
The tightening order of bolts is from the middle to left
and right alternately.
Caution:
For upper and lower bolts differ in the length, so use
the correct bolts.
3.3.31 Turbocharger (D1146TI, DE08TIS)
Fit a new gasket over the stud bolts of the exhaust
manifold before tightening those turbocharger fixing nuts.
Install the oil supply pipe and return pipe.
Tighten the clamps of rubber hose that is connected
air pipe to the intercooler.
3.3.32 Cooling water pipe
Attach a new gasket on the cylinder head.
Install the cooling water pipe and tightening the fixing
bolt on it.
5ton Diesel Engine SPC000006
Page 83
