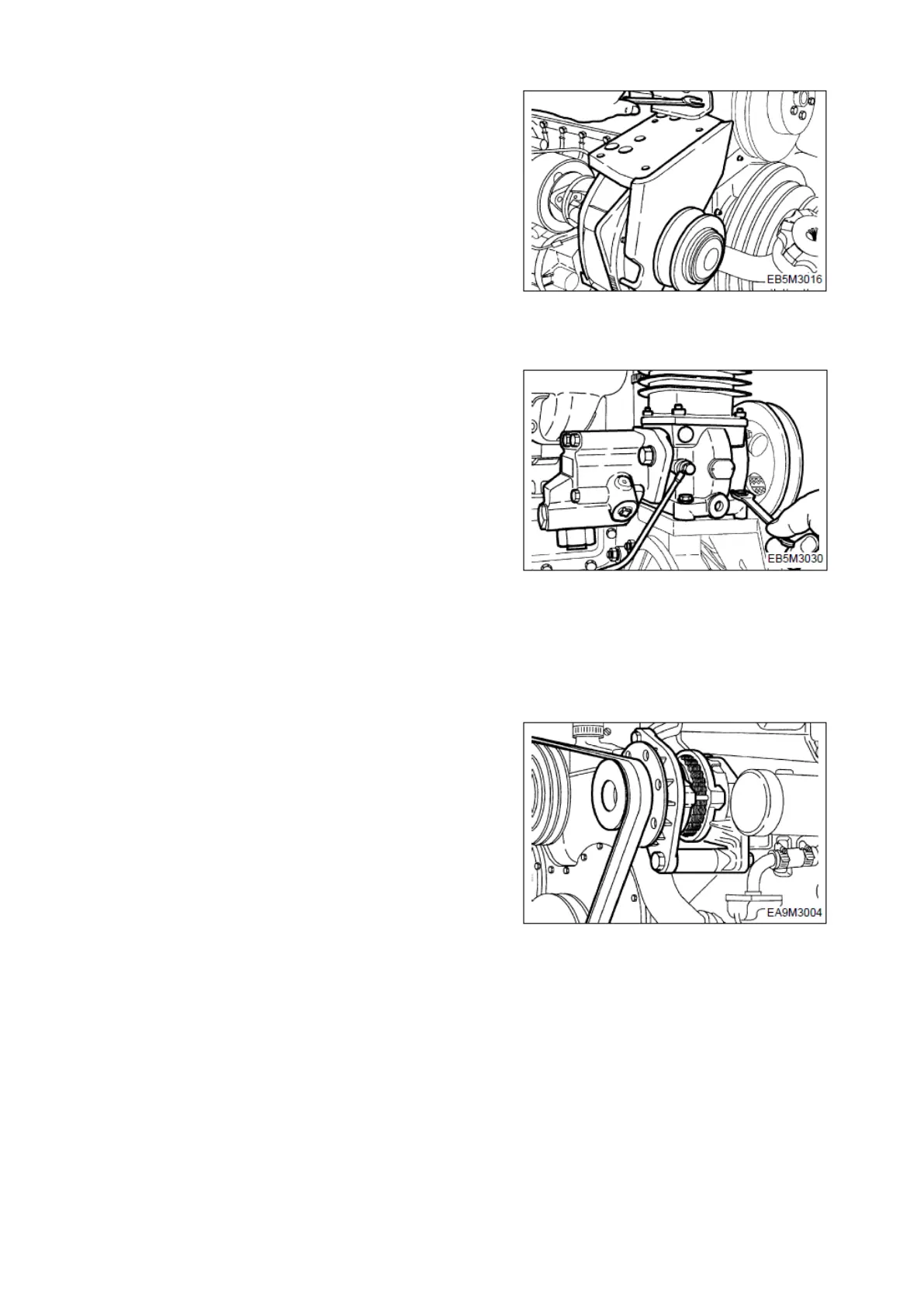

3.3.33 Idle pulley
Assemble the air compressor mounting bracket on the
timing gear case.
Install the idle pulley on the air compressor mounting
bracket and tightening the fixing bolt.
3.3.34 Air compressor & power steering pump
Couple the power steering oil pump to the air
compressor with the driving dog engaged.
Insert the O-ring coated with grease into the oil outlet
of the air compressor.
Place the air compressor on the mounting bracket
carefully and tighten the fixing bolts to the specified
torque. (Carefully damage the O-ring)
Assemble the oil feed pipe.
3.3.35 Alternator
Install the alternator mounting bracket and supporter
to the cylinder block, then tighten the fixing bolts.
Install the alternator with fixing bolts to the mounting
bracket.
SPC000006 5ton Diesel Engine
Page 84
