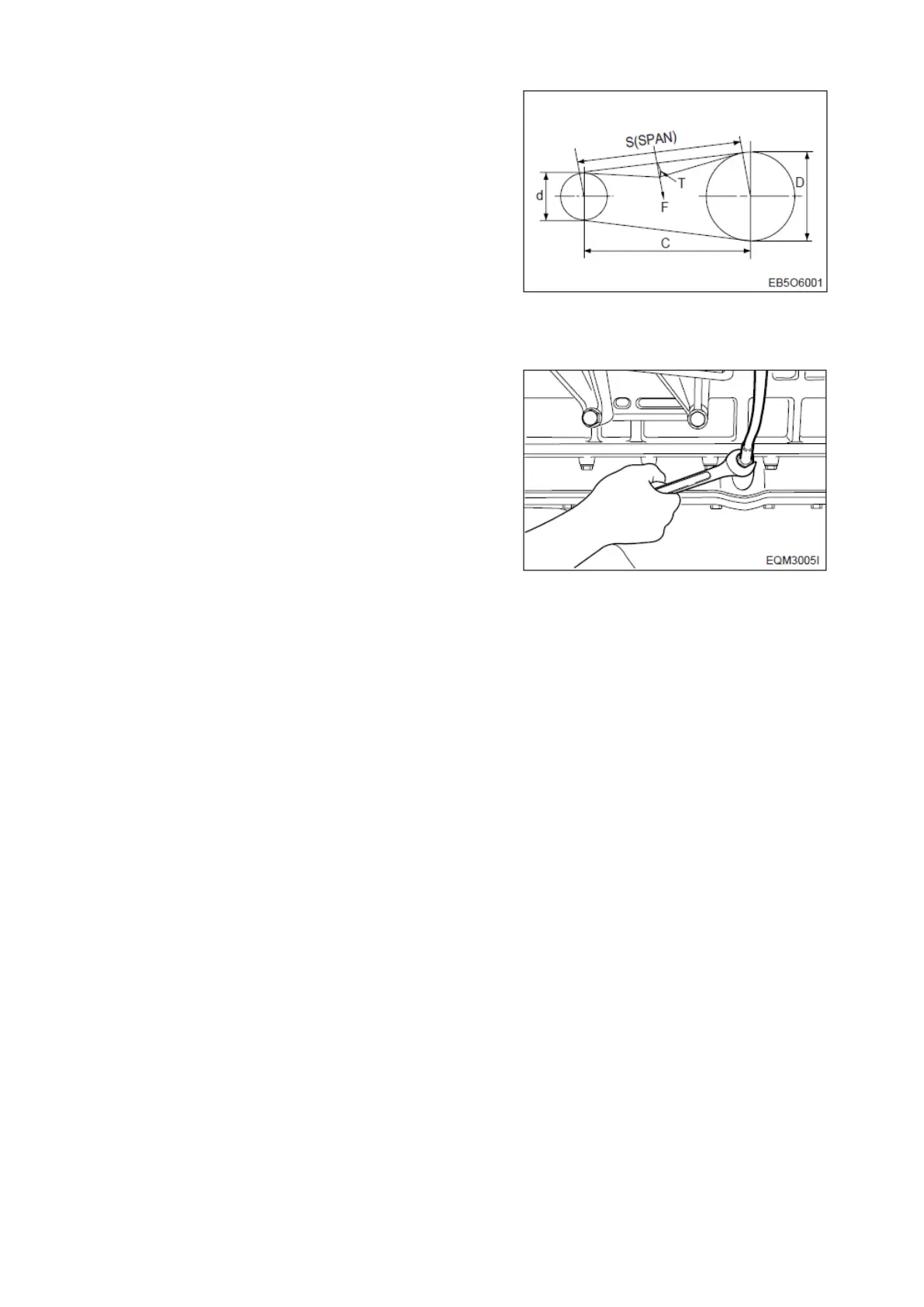

Poly belt will be properly tensioned if the deflection force
―F‖ is applied midway between the belt‘s tangent points
with the pulley.
T = 0.015 X S (about 1.5 mm per 100mm)
3.3.42 Oil level gauge
Apply sealant (Locktite #262) to the bottom side of the
guide tube.
Then assemble the guide tube and oil level gauge on
the oil pan.
3.3.43 Others
Assemble by connecting the other oil and fuel hoses.
5ton Diesel Engine SPC000006
Page 87
