1.1 CAST-IRON GEARBOX CONTROL
1 . 1 . 1 Version 1: Standard Version (without WK and
2-stage pressure control valve)
1.1.1.1 DISASSEMBLY
Separate shift-control housing and channel plate
from gear case (Figure 1 ...3).
Loosen socket head screws, install two adjusting
screws (Arrows) and remove shift-control housing.
Now, remove gaskets and intermediate plate.
( S ) Adjusting screws (M8) 5870 204 011
Now, remove gaskets and intermediate plate.
Remove delivery lines.
Loosen socket head screws and separate channel
plate as well as gaskets and intermediate plate from
the gear case.
Transmission and Torque Converter SPC000007
Page 15

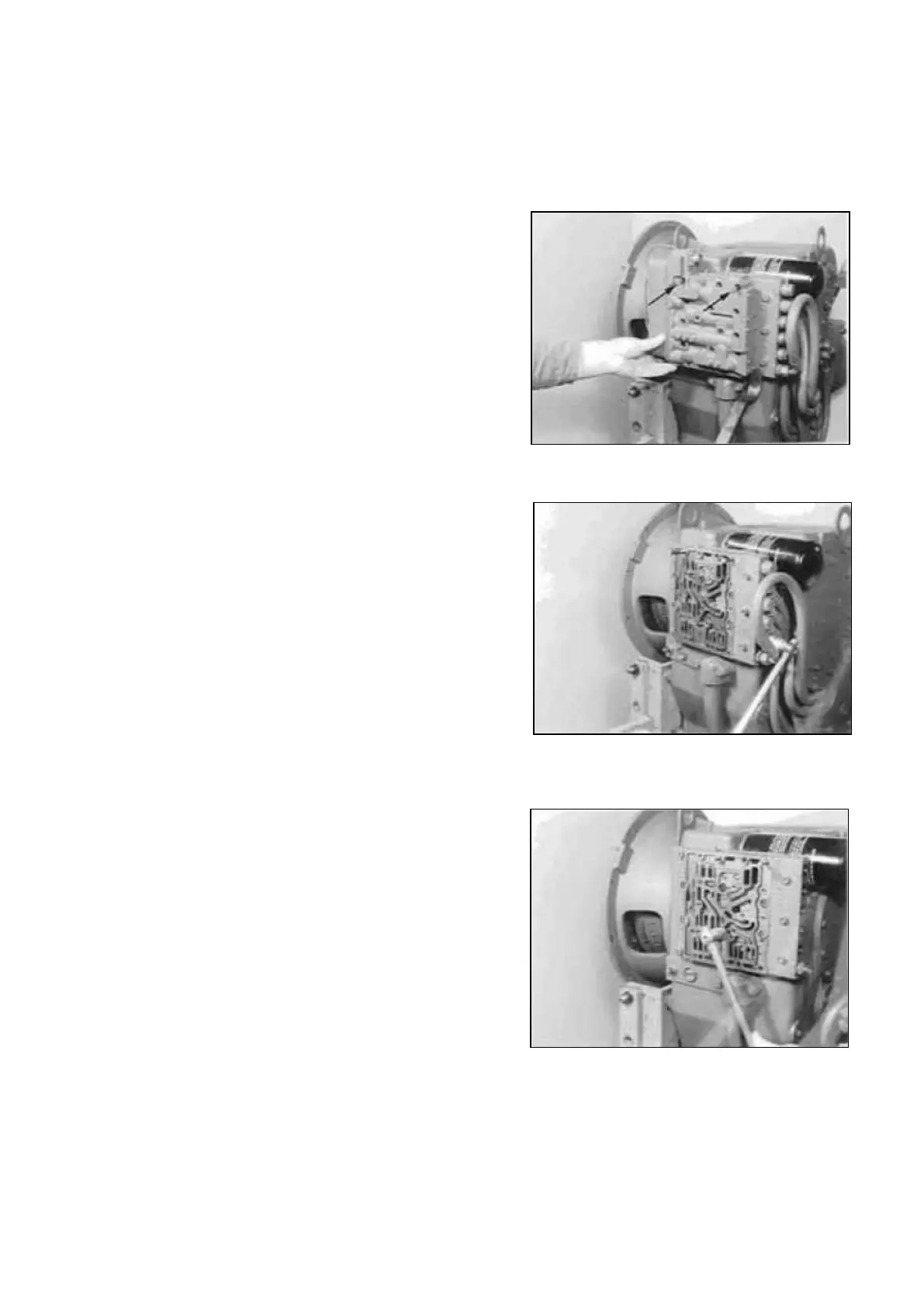

Figure 1
