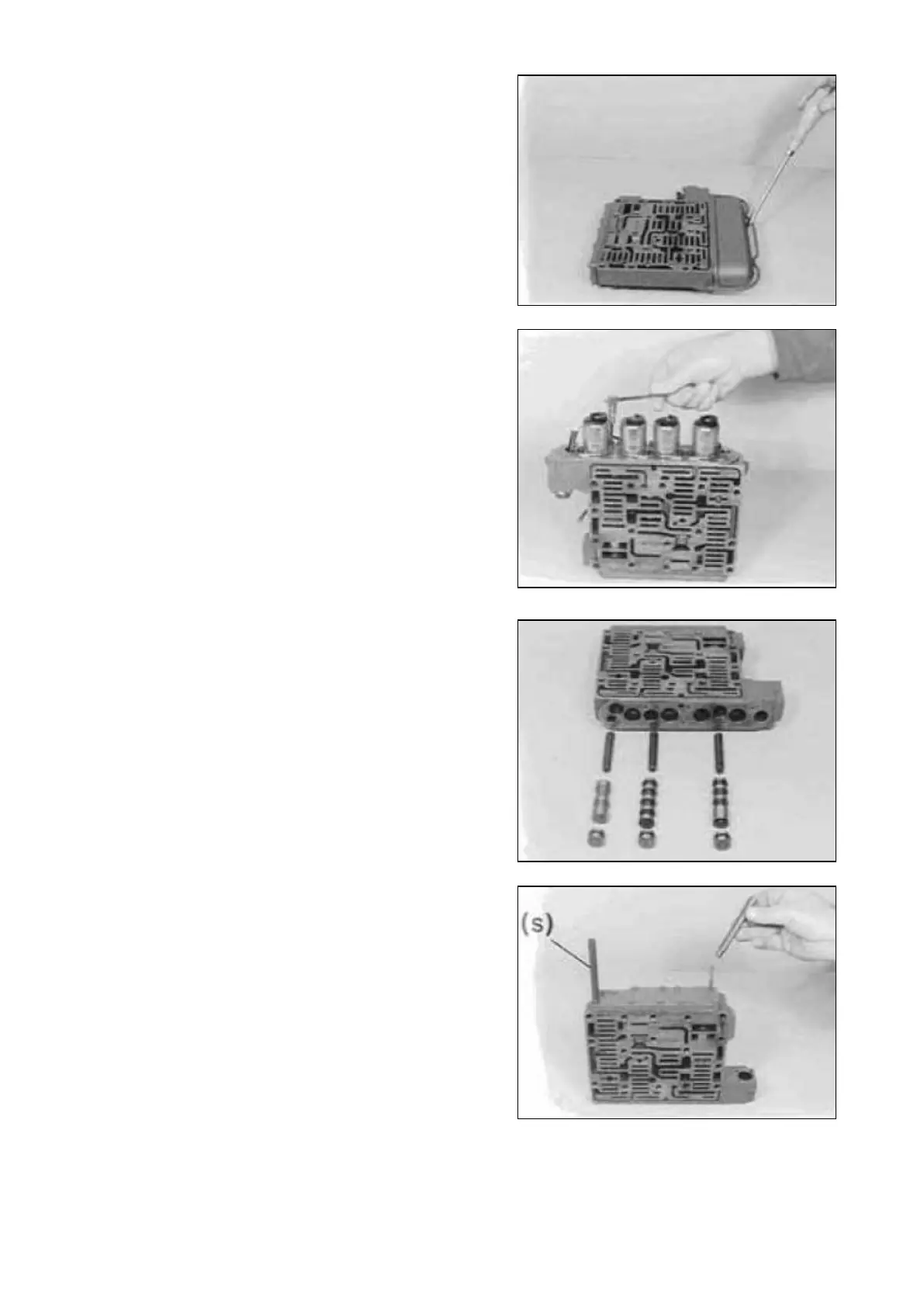

Relax spring clip and remove cover.
Pull off cable shoes, loosen the socket head screws
and remove solenoid valves.
Remove components, see Figure on the right!
Loosen two hex. head screws and fix shift-control
housing provisionally, using Special Tool ( S ).
Now, loosen the remaining hex. head screws and
separate cover (is spring-loaded) from the valve
body by uniform loosening of the nuts ( S ).
( S ) Adjusting screws (M5) 5870 204 036
with nut
( S ) Adjusting screws (M6) 5870 204 049
with nut
SPC000007 Transmission and Torque Converter
Page 16
