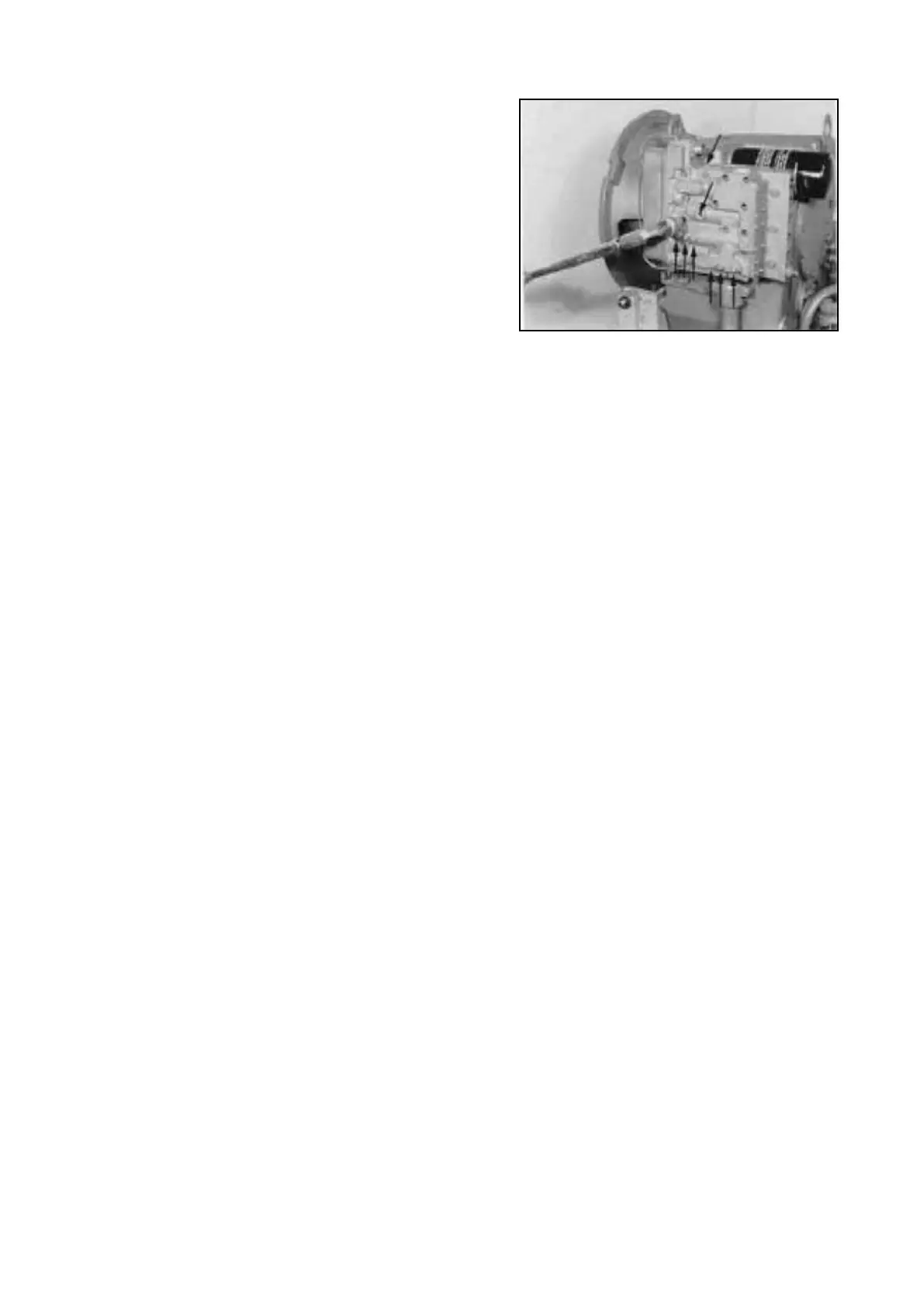

Place gearbox control assembly against shoulder
and fasten it by means of socket head screws.
Torque limit (M8/8.8) 23 Nm
NOTE :
Pay attention to the position of the different screws
(lengths) !
Employ new sealing rings for the screw plugs (see
Arrows) and install them !
Now, install delivery lines, see Perspective
Illustrations in the corresponding Spare Parts List !
Transmission and Torque Converter SPC000007
Page 23
