1 . 2 . 1 . 2 REASSEMBLY
see also Illustrated Tables, Page 1.26
and 1.27 !
NOTE :
Check all components for damage and renew if
necessary !
Check free travel of the moving parts in the housing
prior to the installation !
Spools can be exchanged individually !
Oil components prior to the reassembly !

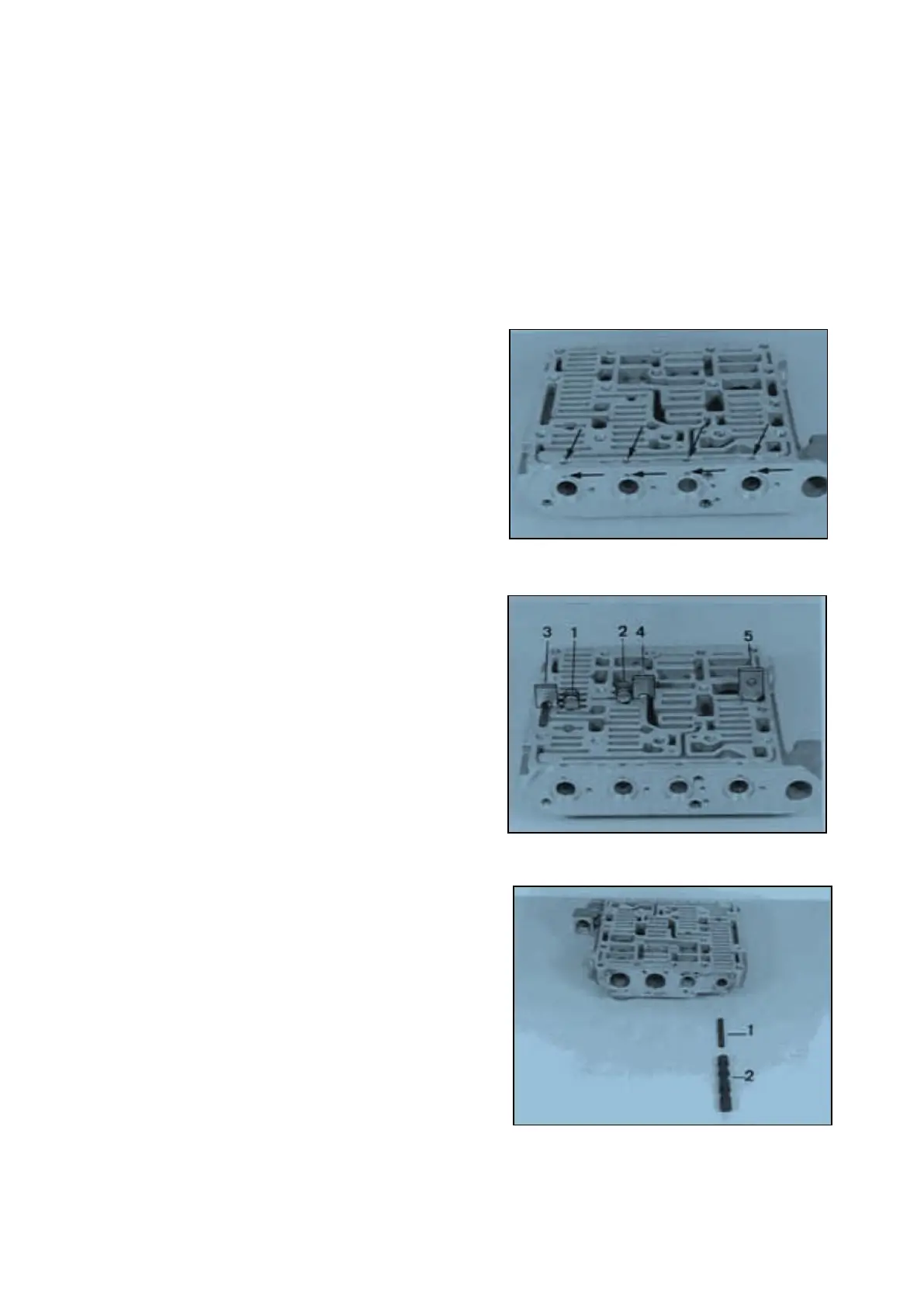

Close the bores by means of balls (8 pieces Φ 4,50
mm).
Introduce detent blocks (1 and 2) into the bores and
fix them by means of stop plates (3 and 4).
Install detent block (5).
NOTE ;
Pay attention to the installation position !
Install components :
1 = Spool (total length = 86,00 mm)
2 = Spring (L
o
= 53,40 mm)
NOTE ;
L
o
= Length of the unloaded spring !
SPC000007 Transmission and Torque Converter
Page 28
