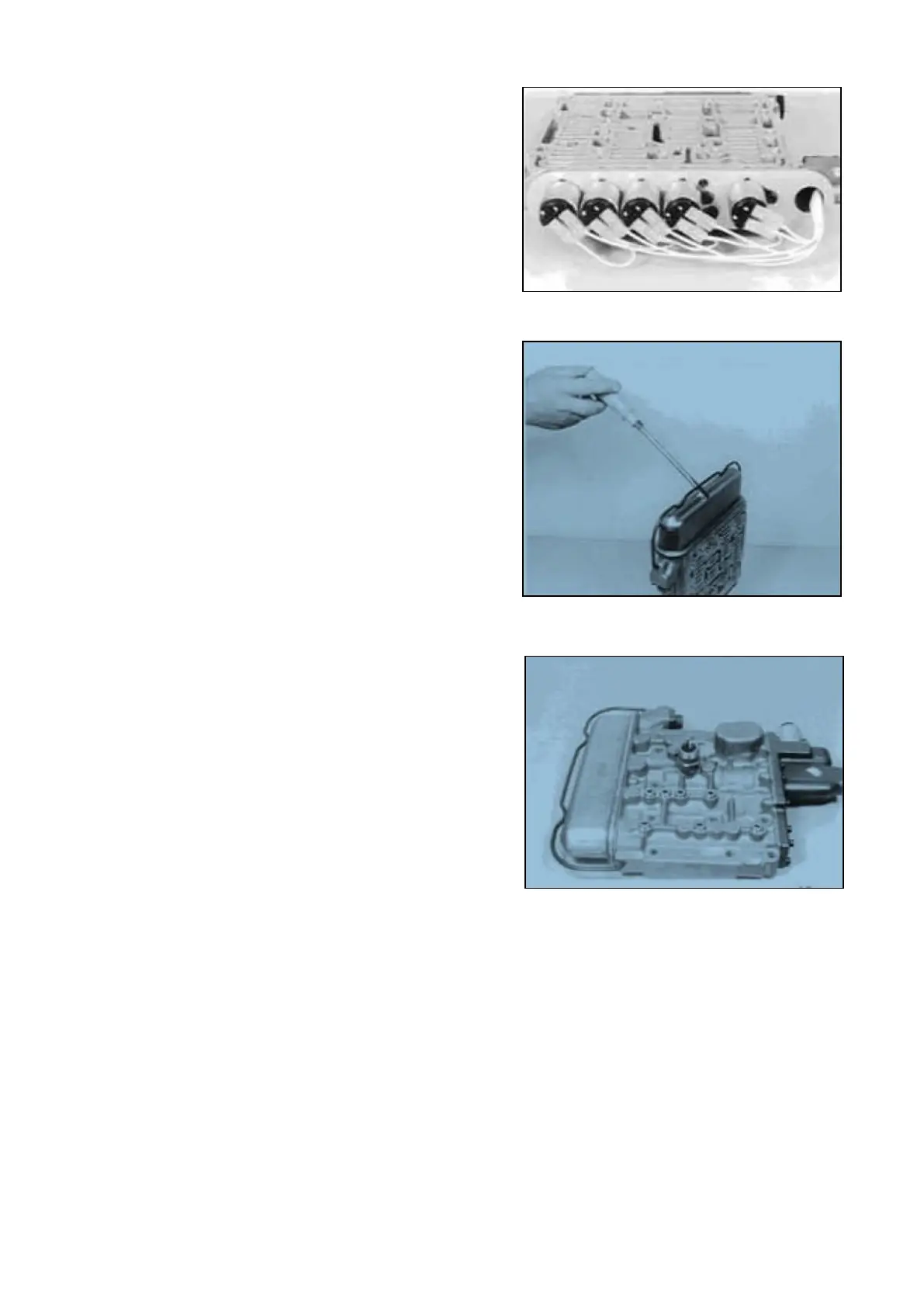

Connect solenoid valves according to the Illustration
on the right..
Mount new O-Ring (164.2 x 5.7) and fix cover by
means of clamping collar.
Install screw plugs as well as control pressure
sender (according to the Version).
NOTE :
The Reassembly of the channel plate as well as the
attachment of the gearbox control is treated on
Page 32 ... 34 !
Pay attention to the Perspective Illustration of the
corresponding Sparc Parts List !
( S ) Adjusting screws (M8) 5870 204 011
SPC000007 Transmission and Torque Converter
Page 42
