1.3.1.2 REASSEMBLY
see also Illustrated Tables, Page 55and
56 !
NOTE :
Check all components for damage and renew if
necessary !
Check free travel of the moving parts in the housing
prior to the installation !
Spools can be exchanged individually !
Oil components prior to the reassembly !
Employ new O-Rings for all screw plugs (8 pieces)
and install them.

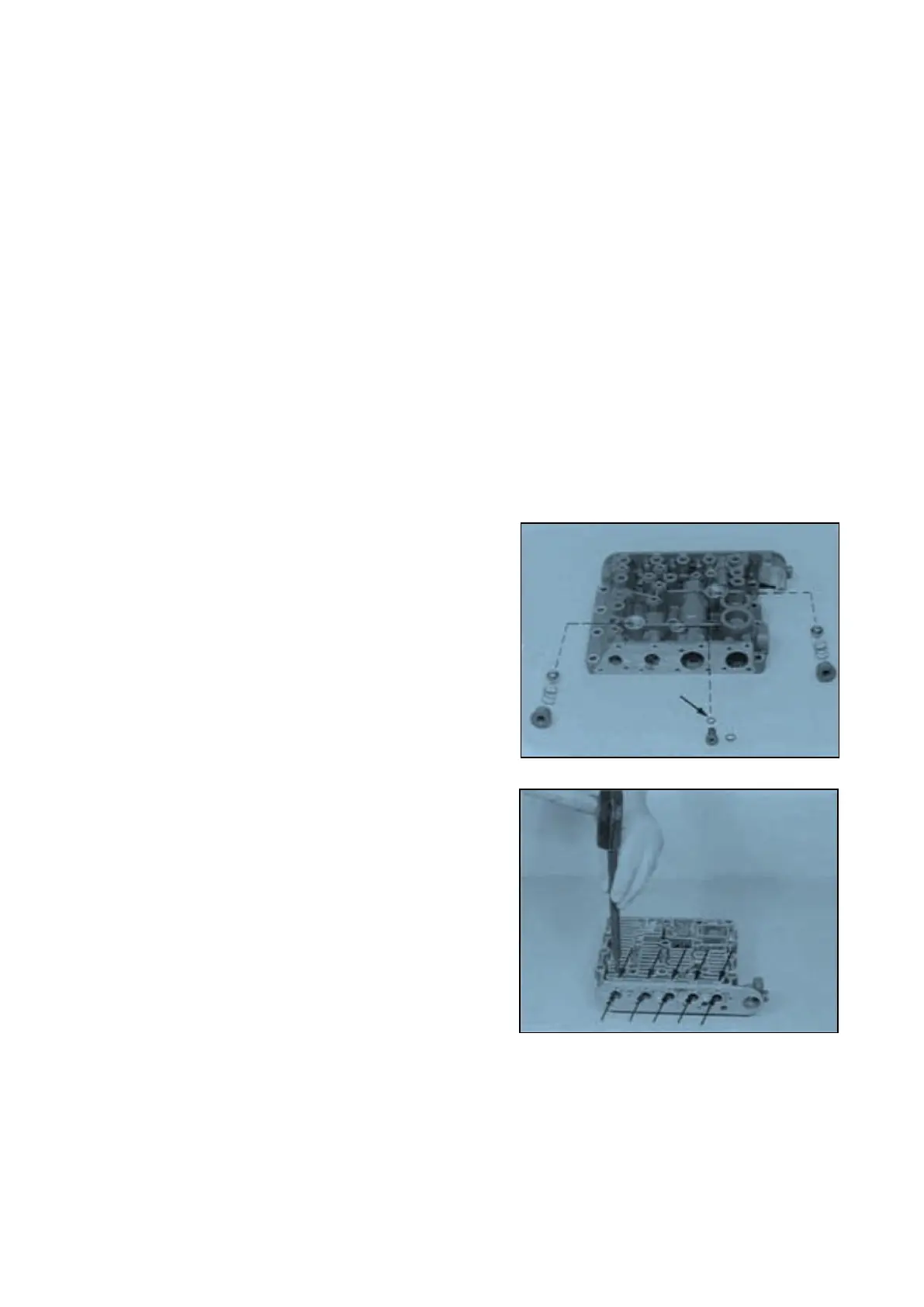

Install check valves and diaphragm (optional).
NOTE :
Mount new O-Rings !
Fasten O-Ring 6 x 1.5 mm (Arrow) with grease on
the end face of the diaphragm - makes the
reassembly easier !
Use only oil soluble grease for the reassembly !
Δ t1 is determined by the diaphragm
(pay attention to Notes, Page 12 … 14)!
Torque limit :
Screw plug Ml10x 1 20 Nm
Screw plug Ml8x1.5 35 Nm
Diaphragm 20 Nm
Close the bores by means of balls (10 pieces, Φ
4,50 mm).
