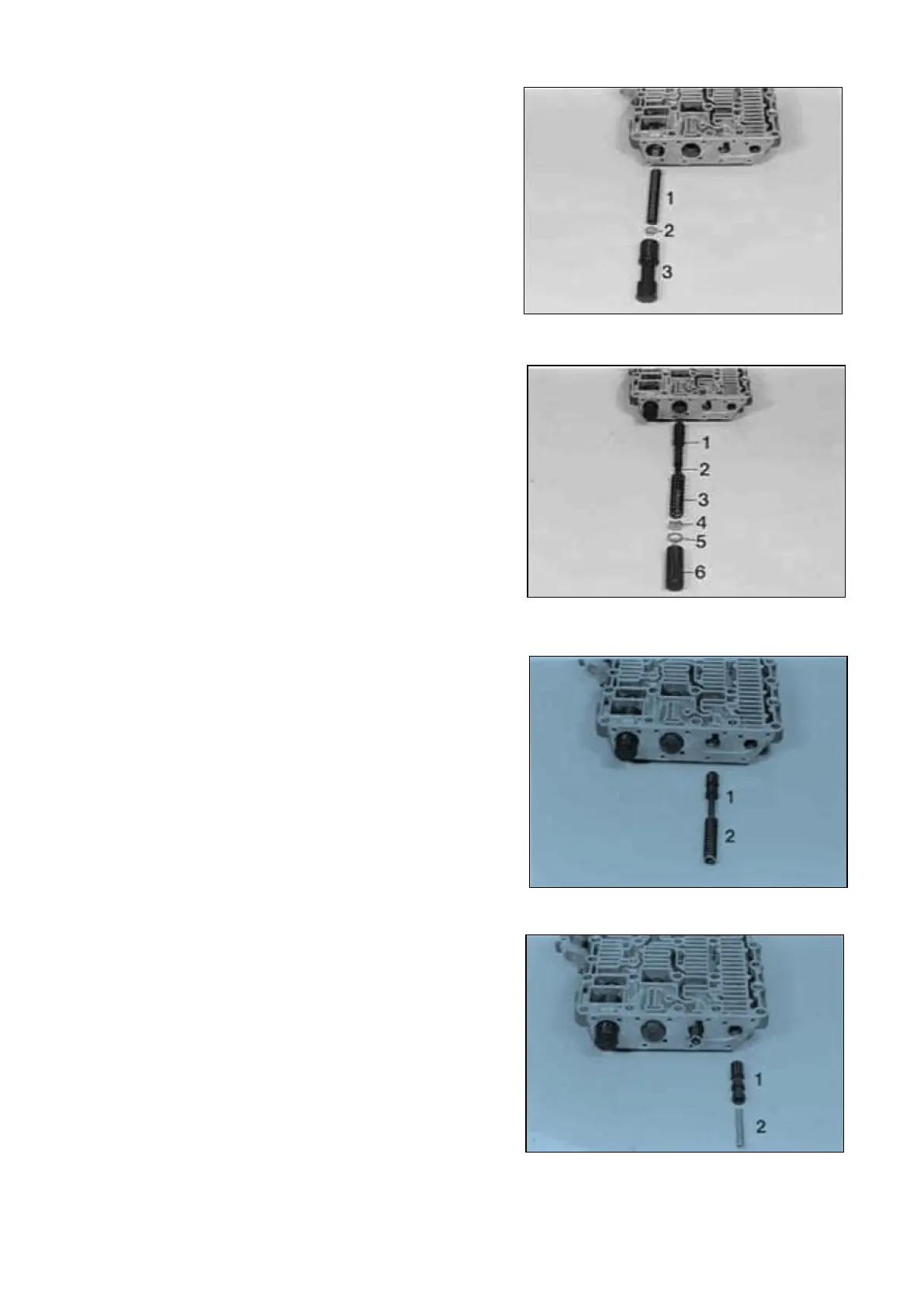

Control pressure valve :
Install components.
1 = Spring (L
0
= 96,20 mm)
2 = Disk(s) (optional)
3 = Spool
NOTE :
ps is determined by the disk
(pay attention to Notes, Page 12 ... 14) !
Pressure control valve :
Install components.
1 = Control spool
2 = Spring (L
0
= 124,10 mm)
3 = Spring (L
0
= 77,10 mm)
4 = Disk
5 = Disk(s) (optional)
6 = Displacement spool
NOTE ;
Install disk with the countersinking facing the
compressison spring !
P1 is determined by the disk 5
(pay attention to Notes Pages 12 ... 14) !
Reversing valve ;
Install components.
1 = Reversing spool
2 = Spring (L
0
= 5 6 , 3 0 mm)
Control spool KV :
Install components.
1 = Spool (total length = 55,50 mm)
2 = Spring (L
0
= 51,30 mm)
Transmission and Torque Converter SPC000007
Page 49
Figure 112
Figure 113
Figure 114
Figure 115
