Assemble gearbox control and fasten it by means of
socket head screws (8 pieces M8 x 65, 11 pieces
M8 x 35 and I piece M8 x 63mm).
Torque limit 20 Nm
NOTE :
Mount flat washers !

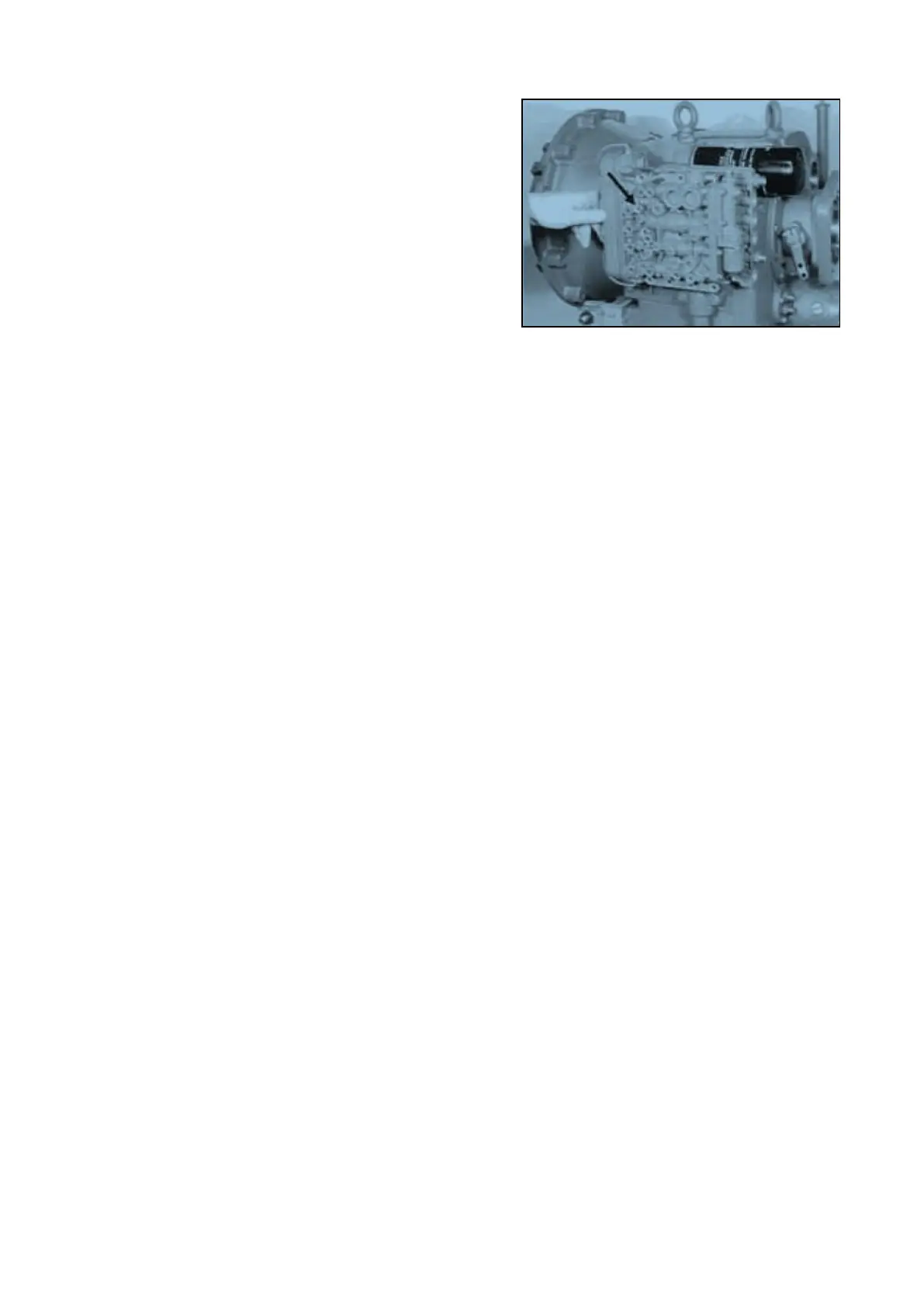

Position of the socket head screw M8 x 63 mm, see
Arrow !
Install delivery lines, see Perspective illustration in
the corresponding Spare Parts List !
SPC000007 Transmission and Torque Converter
Page 54
