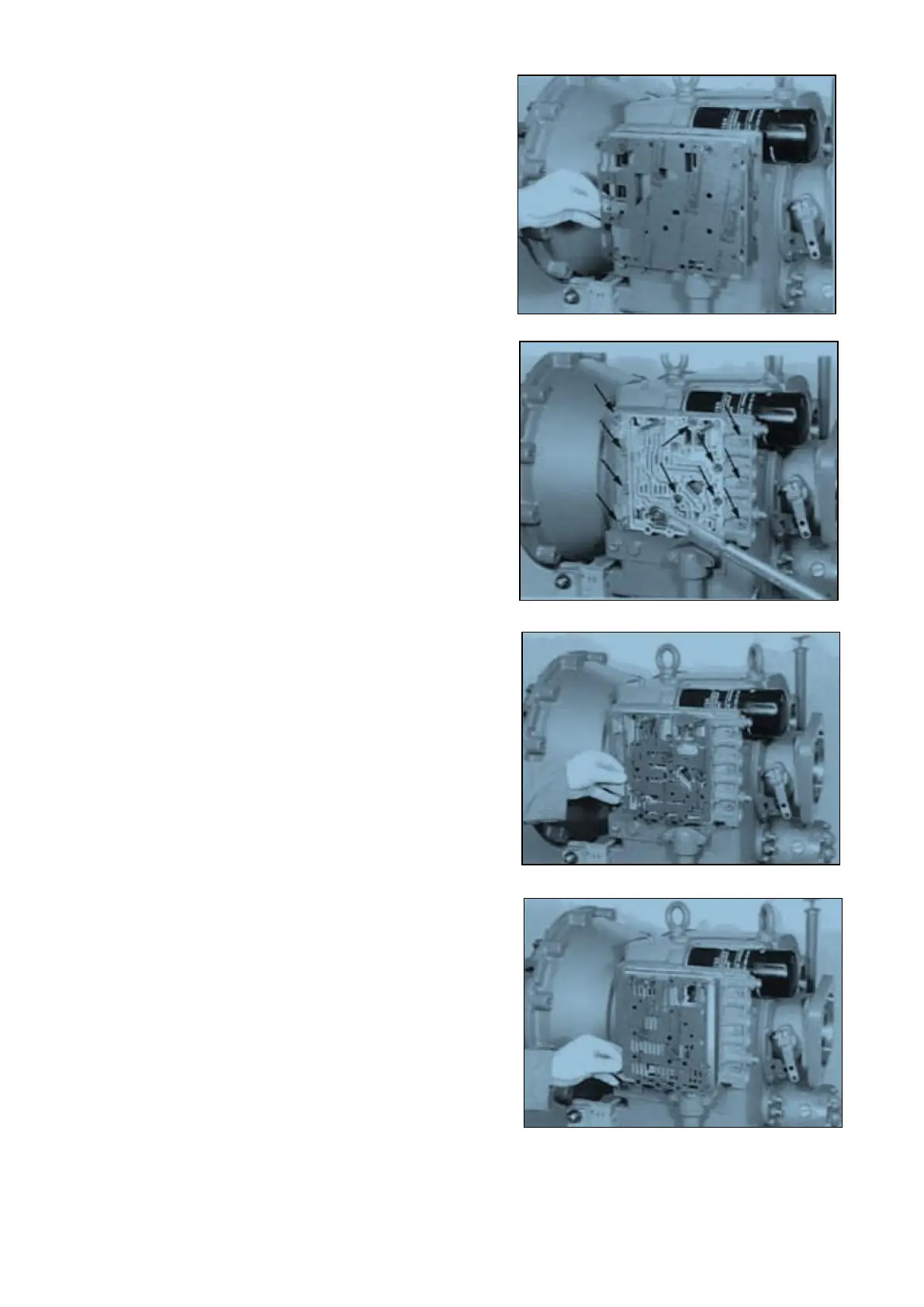

Install intermediate plate and 2nd gasket.
Assemble channel plate and fasten by means of
socket head screws (mount flat washers).
Torque limit 20 Nm
NOTE :
Use only socket head screws, M8 x 35, DIN 6912
(with low head) !
Position of screws, see Arrows !
Attach gearbox control (Figure 130 ... 132) :
Assemble 1st gasket.
NOTE :
Pay attention to the different gaskets, see Figure
130 and 131 !
Assemble intermediate plate and 2nd gasket.
Transmission and Torque Converter SPC000007
Page 53
Figure 129
Figure 130
Figure 131
Figure 128
