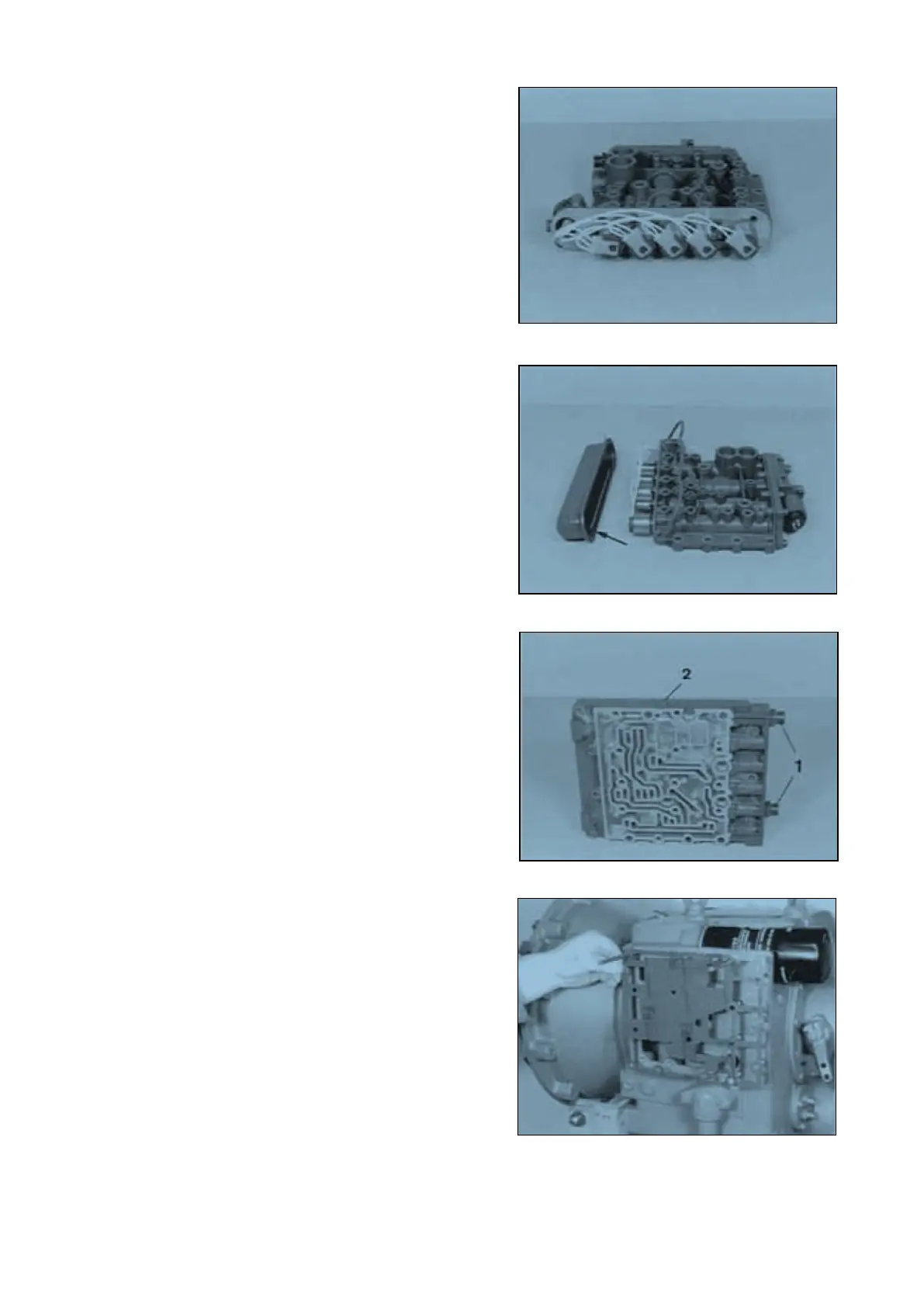

Connect solenoid valves according to the Figure on
the right.
Mount new O-Ring (Arrow) and fix cover by means
of clamping collar.
Pre-assemble and attach channel plate (Figure
126 ... 129) ;
Mount connecting pipe (1) and screw plug (2).
Install two adjusting screws and assemble housing
gasket.
NOTE :
Pay attention to the different gaskets, see Figure
127 and 128 !
( S ) Adjusting screws (M8) 5870 204 011
SPC000007 Transmission and Torque Converter
Page 52
