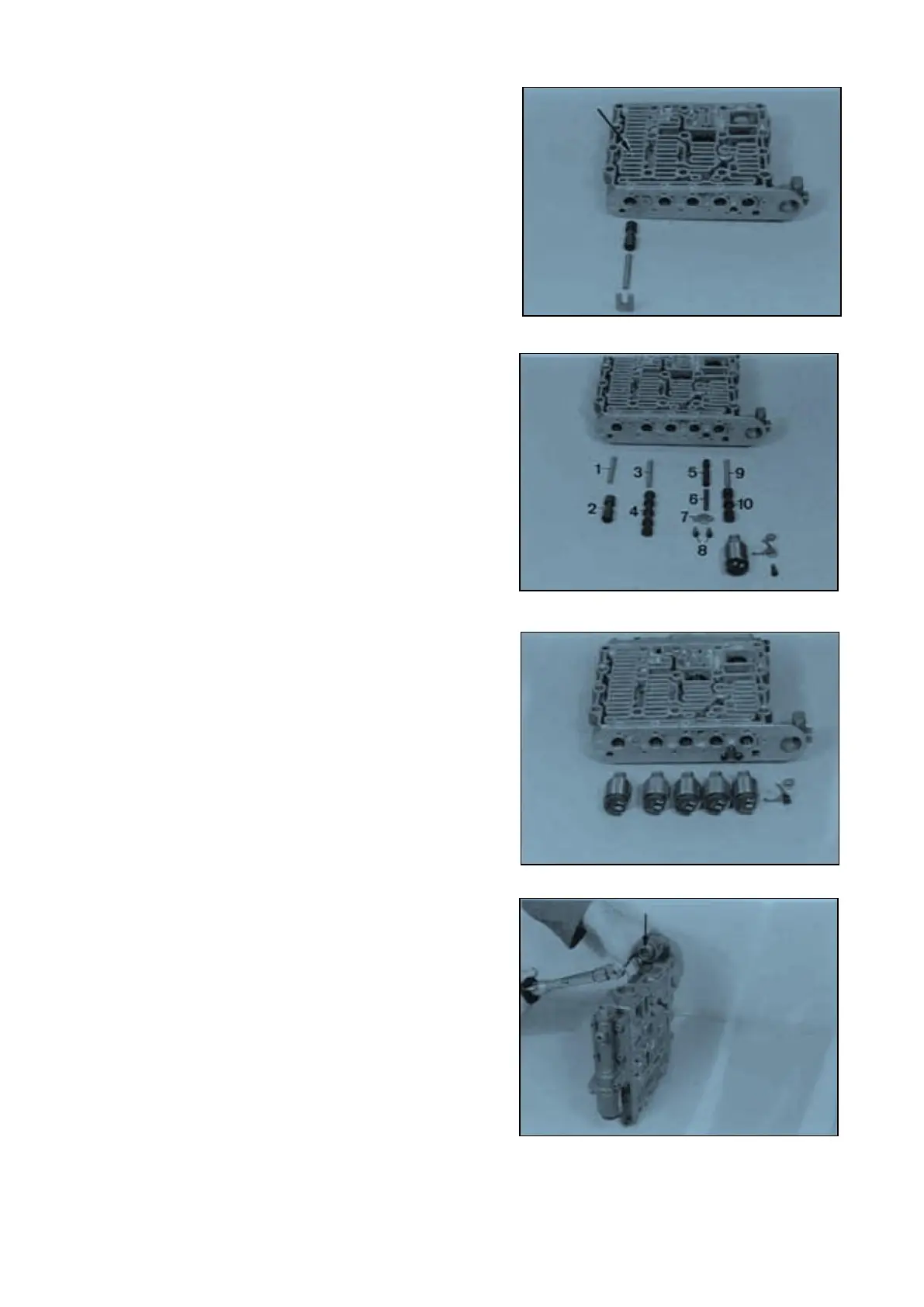

Introduce control spool (K4/KR) and compression
spring (Lo = 51.30 mm), and fix them by means of
stop plate.
NOTE :
Position of the stop plate, see Arrow !
Install components (1 ... 10) :
1 = Spring (L
o
= 51.30 mm)
2 = Control spool K4/KR
3 = Spring (L
o
= 51.30 mm)
4 = Control spool K 1 / K 2 / K 3
5 = Spool
6 = Spring (L
o
= 37.10 mm)
7 = Retaining plate
8 = Socket bead screws
9 = Spring (L
o
= 51.30 mm)
10 = Pilot spool (total length = 52.50 mm)
Insert solenoid valves and fix them by means of
disks, retaining plates and socket head screws.
Torque limit (M5/8.8) 5.5 Nm
NOTE :
Pay attention to the installation position of the disks
(mount between valve body and retaining plate),
see Arrow !
Pay attention to the radial installation position of the
solenoid valves, see also Figure 124 !
Install cable harness.
Torque limit (M6/8.8) 9.5 Nm
NOTE ;
Mount new gaskets !
Pay attention to the location of the plug nose see
Arrow !
Transmission and Torque Converter SPC000007
Page 51
