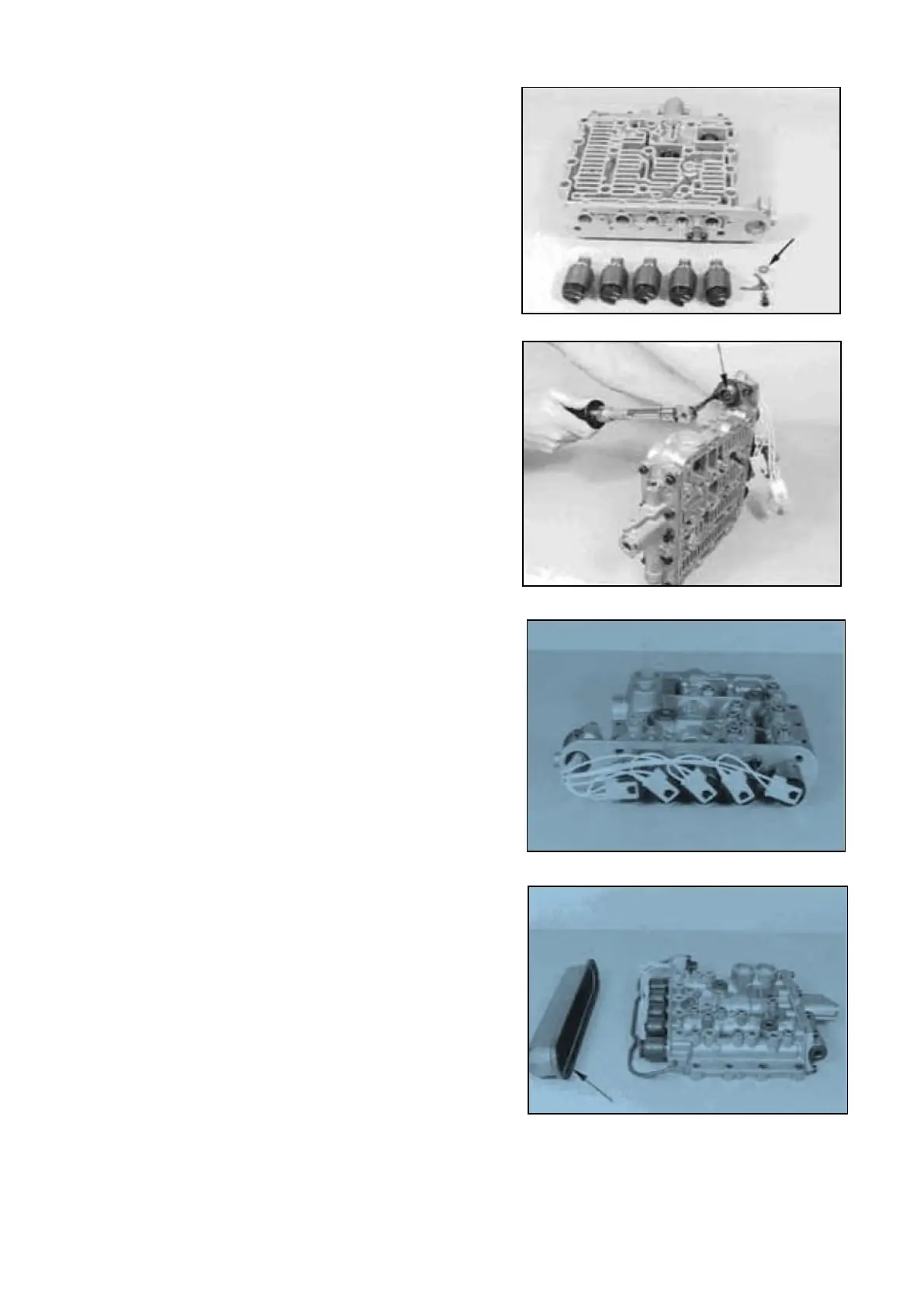

Insert the solenoid valves and fix them by means of
disks, retaining plates and socket head screws.
Torque limit (M5/8.8) 5,5 Nm
NOTE :
Pay attention to the installation position of the disk
(mount between valve body and retaining plate),
see Arrow !
Pay attention to the radial installation position of the
solenoid valves, see Figure 156 !
Install cable harness.
NOTE ;
Mount new gaskets !
Pay attention to the location of the plug nose, see
Arrow !
Connect the solenoid valves according to the
Illustration on the right.
Mount new O-Ring, see Arrow, and fix the cover by
means of clamping collar.
NOTE ;
The Reassembly of the channel plate as well as the
attachment of the gearbox control arc treated on
Page 52 ... 54 !
Pay attention to the Perspective Illustrations of the
corresponding Spare Parts List !
