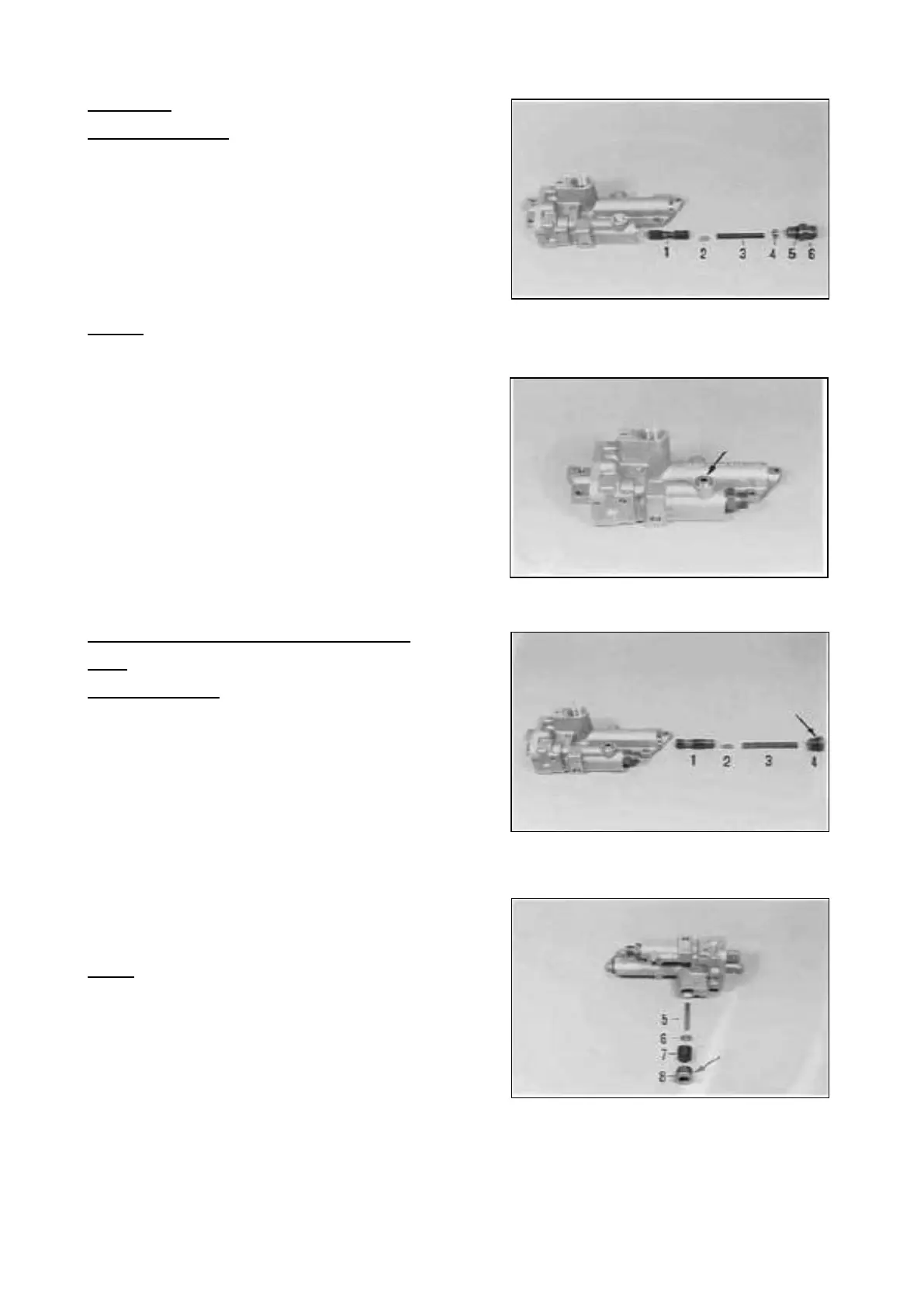

WK-Valve :
Install components ;
1 = Spool
2 = Disk(s) (optional)
3 = Spring (L o = 53,40 mm)
4 = Detent block
5 = O-Ring
6 = Connecting piece
NOTE ;
Install detent Mock with the countersinking facing
the spring !
p2 (WK) is determined by the disk 2
(pay attention to Notes, Page 12 ... 14) !
Install screw plug (Arrow).
NOTE :
Assemble new O-Ring !
Torque limit (M10x 1) 20 Nm
2-stage Pressure control valve (Figure 183 and
184) :
Install components
1 = Spool
2 = Disk(s) (optional)
3 = Spring (Lo = 70,90 mm)
4 = Screw plug
5 = Needle roller
6 = Ring(s) (total thickness s=5,00mm/
empirical value)
7 = Spool
8 = Screw plug
NOTE
Mount new O-Rings, see Arrows !
Δ t3 is determined by the disk 2
p3 is determined by the ring 6
(pay attention to Notes, Page 12 ... 14) !
SPC000007 Transmission and Torque Converter
Page 70
