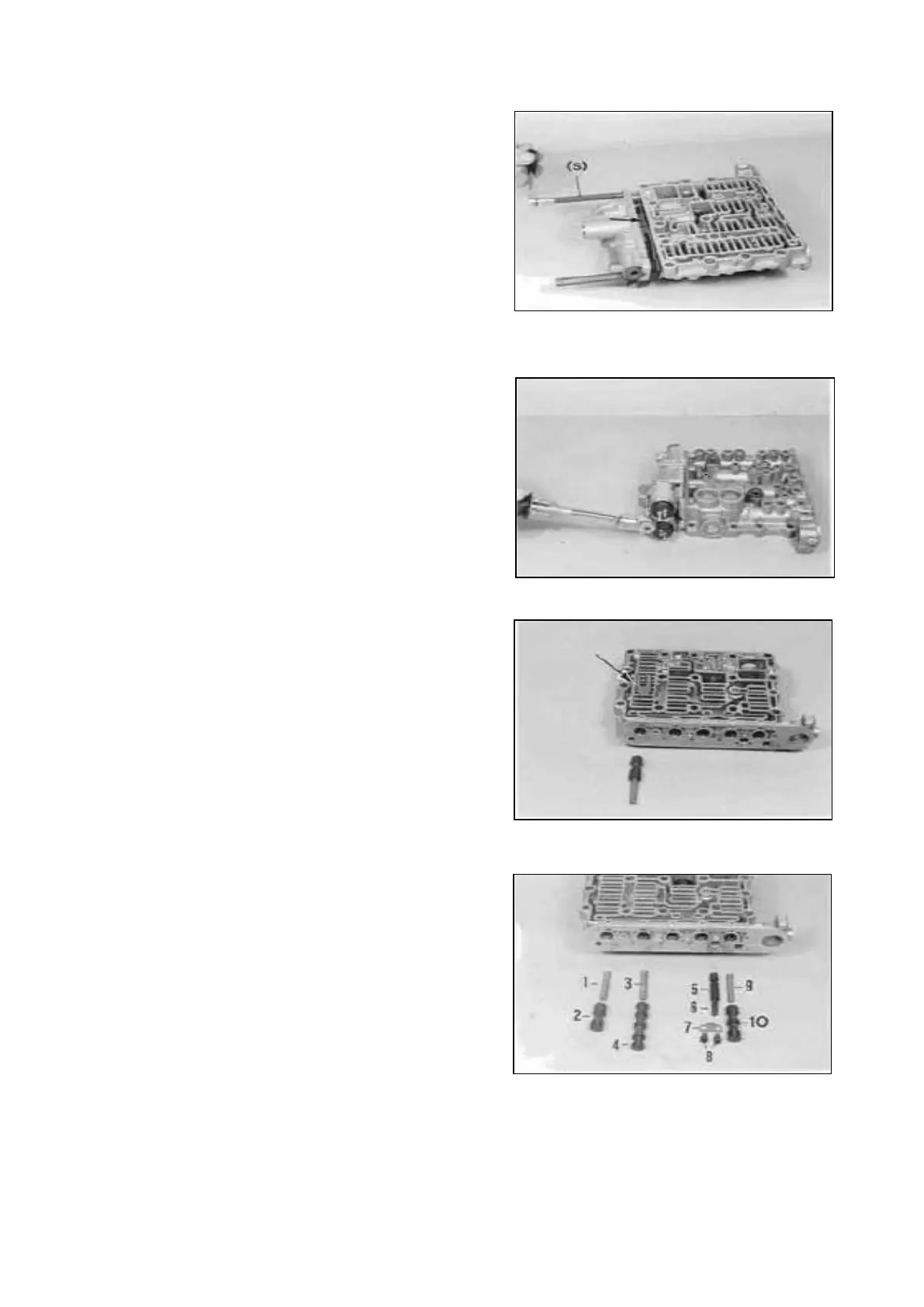

Install two adjusting screws ( S ) and assemble flat
gasket (Arrow).
Pull shift-control housing against shoulder, using
nuts ( S ).
Now, fasten shift-control housing by means of
socket head screws (mount flat washers).
Torque limit (M6/8.8) 9,5 Nm
( S ) Adjusting screws (M6) 5870 204 049
with nut
Fasten the two solenoid valves by means of socket
head screws.
Torque limit (M5/8.8) 5,5 Nm
Assemble control spool (K4/KR) and compression
spring (Lo = 51,30 mm) and fix them by means of
stop plate.
NOTE ;
Position of stop plate, see Arrow !
Install components :
1 = Spring (Lo = 51,30 mm)
2 = Control spool (K4/KR)
3 = Spring (Lo = 51,30 mm)
4 = Control spool (K1/K2/K3)
5 = Spool
6 = Spring (Lo = 3 7,1 0 mm)
7 = Retaining plate
8 = Socket head screws
9 = Spring (Lo = 51,30 mm)
10 = Pilot spool (total length = 52,50 mm)
Transmission and Torque Converter SPC000007
Page 71
