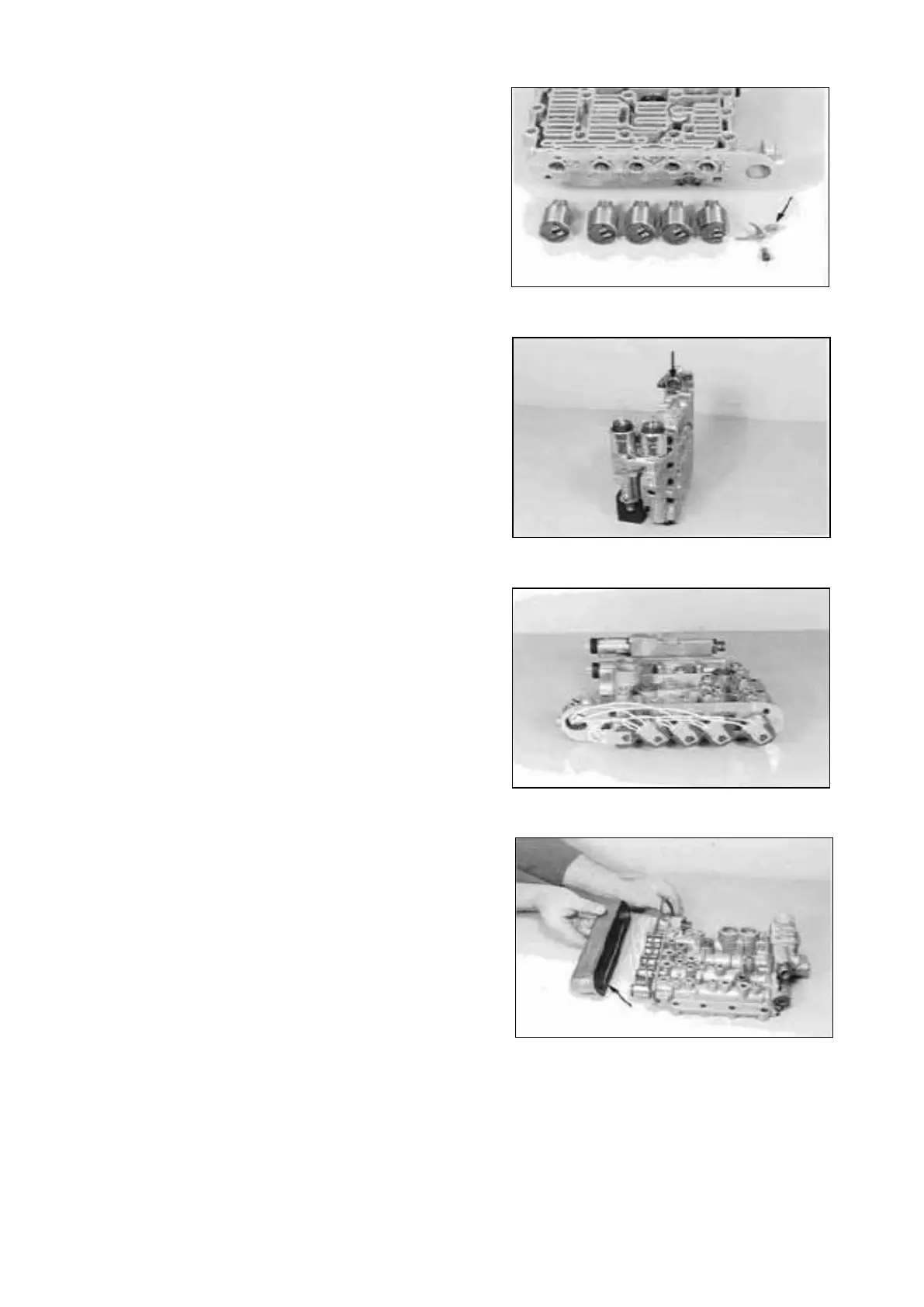

Insert solenoid valves and fix them by means
of disks, retaining plates and socket head screws.
Torque limit (M 5/8.8) 5,5 Nm
NOTE :
Pay attention to the installation position of the disks
(mount between valve body and retaining plate),
see Arrow !
Pay attention to the installation position of the
solenoid valves, see also Figure 191 !
Install cable harness.
Torque limit (M6/8.8) 9,5 Nm
NOTE :
Mount new gaskets !
Pay attention to the location of the plug nose see
Arrow !
Connect solenoid valves according to the illustration
on the right.
Mount new O-Ring (Arrow) and fix cover by means
of clamping collar.
NOTE :
The reassembly of the channel plate as well as the
attachment of the gearbox control, are treated on
Page 52 ... 54 !
Pay attention to the Perspective Illustration of the
corresponding Spare Parts List !
