Doosan DISD SD 310 - Page 314

3. GEARBOX
3.1 DISASSEMBLY
3.1.1 CONVERTER CHARGE PUMP and
CONTROL PRESSURE PUMP

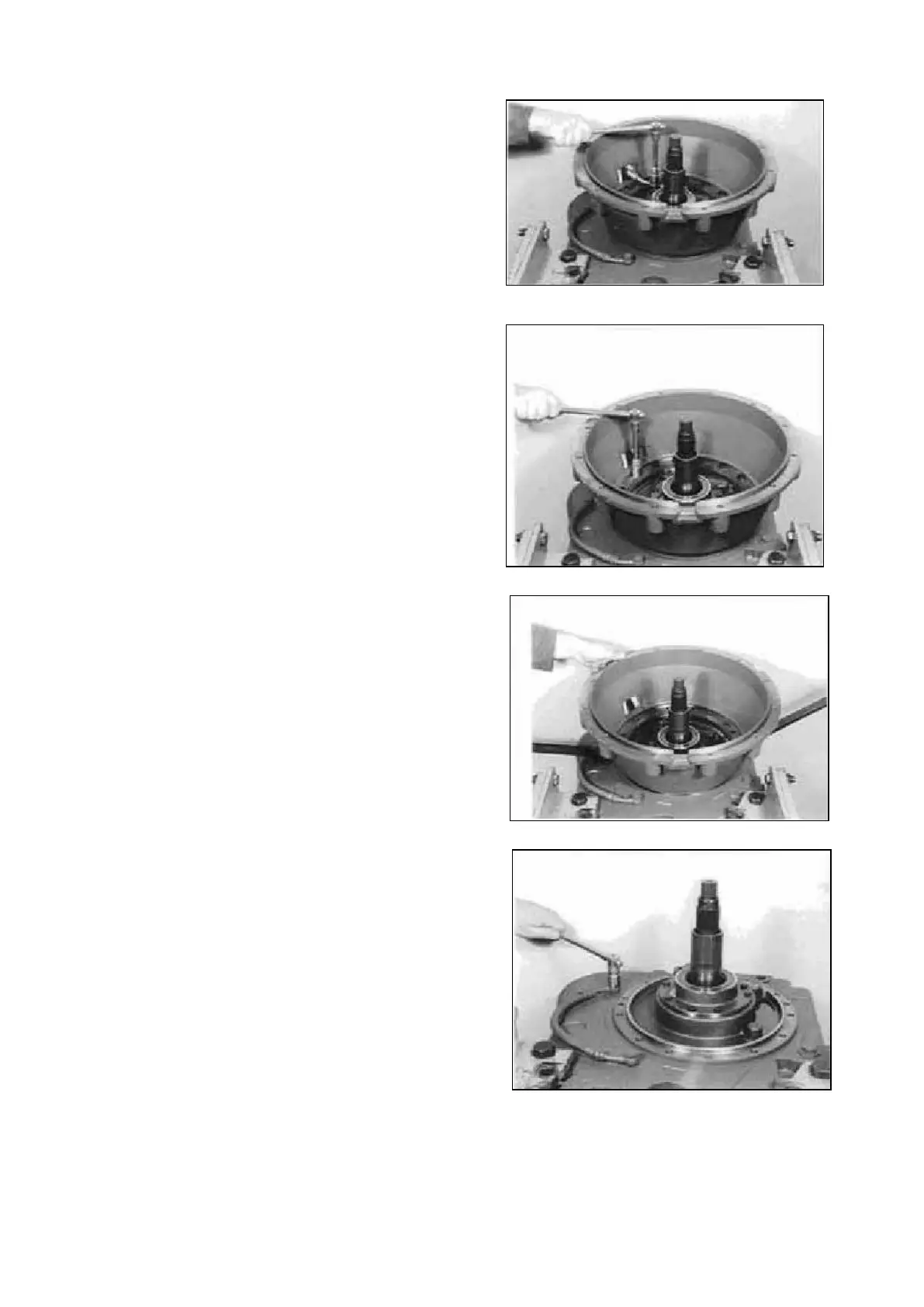

Loosen hollow screw and remove delivery line.
Loosen screwed connection (Figure 2) and separate
engine connecting case from gear case by means of
pry bars (Figure 3).
Loosen hollow screw and remove delivery line.
SPC000007 Transmission and Torque Converter
Page 86
Figure 1
Figure 2
Figure 3
Figure 4
