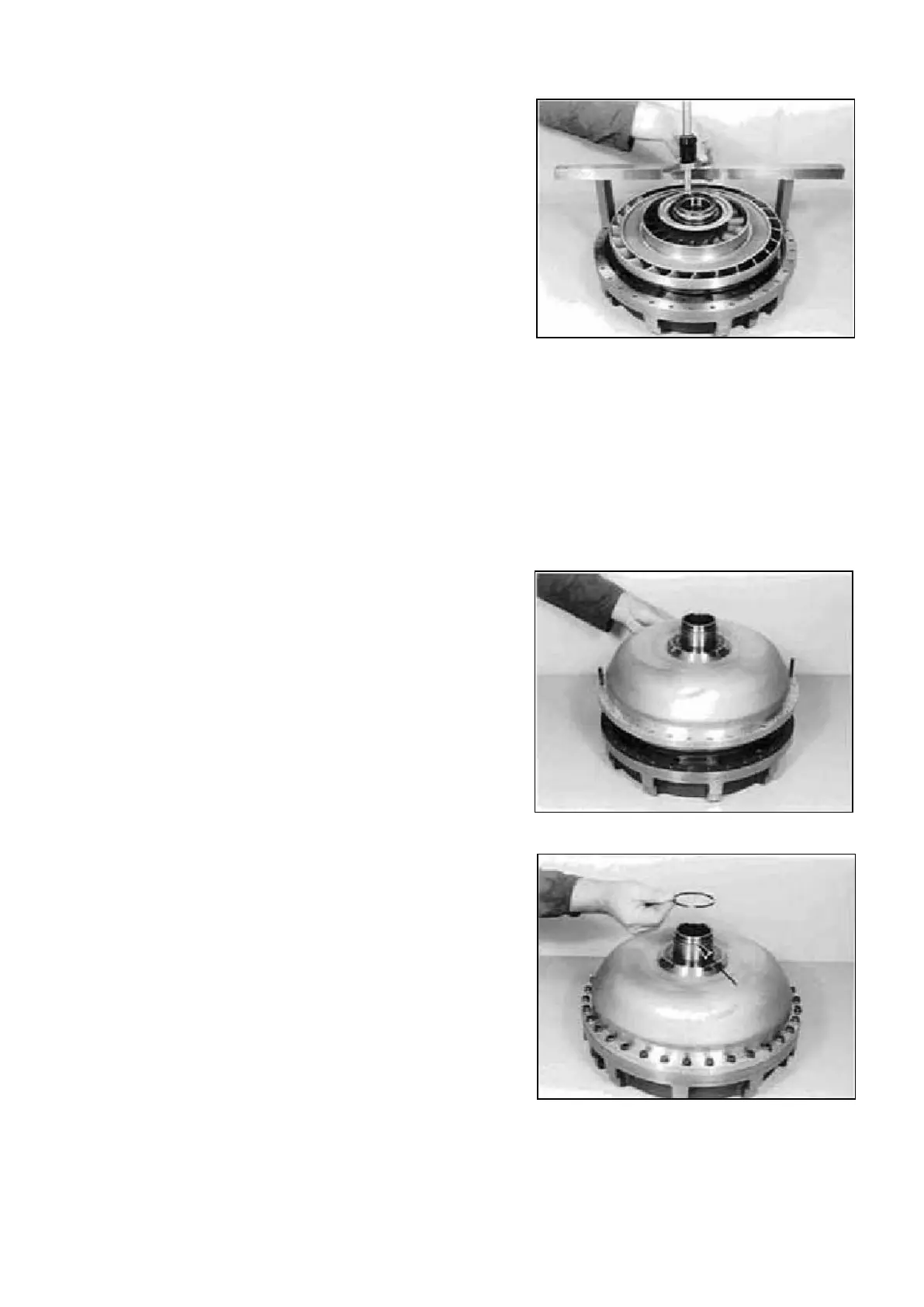

Measure Dimension from the flange-mounted
surface (converter impeller cover) to the housing
washer.
Dimension e.g. 87,95
mm
Example "B"
Dimension 88,05 mm
Dimension - 87,95 mm
Difference s End play 0,10 mm
NOTE:
In case of deviations from the permitted end play
(max. 0,2 mm) correct by means of corresponding
shin !
The shim is illustrated on Figure 34 !
Screw two adjusting screws into the converter
impeller cover and mount flat gasket.
Place impeller wheel against shoulder and fasten it
by means of hex. head screws.
Torque limit (M8x32/8.8) 23 Nm
NOTE:
Install flat washers !
Pay attention to the radial position, see markings !
(S) Adjusting screw (M8) 5870 204 011
Squeeze the rectangular ring into the annular
groove (Arrow) and engage it.
NOTE:
Install converter, see Page 163 !
Transmission and Torque Converter SPC000007
