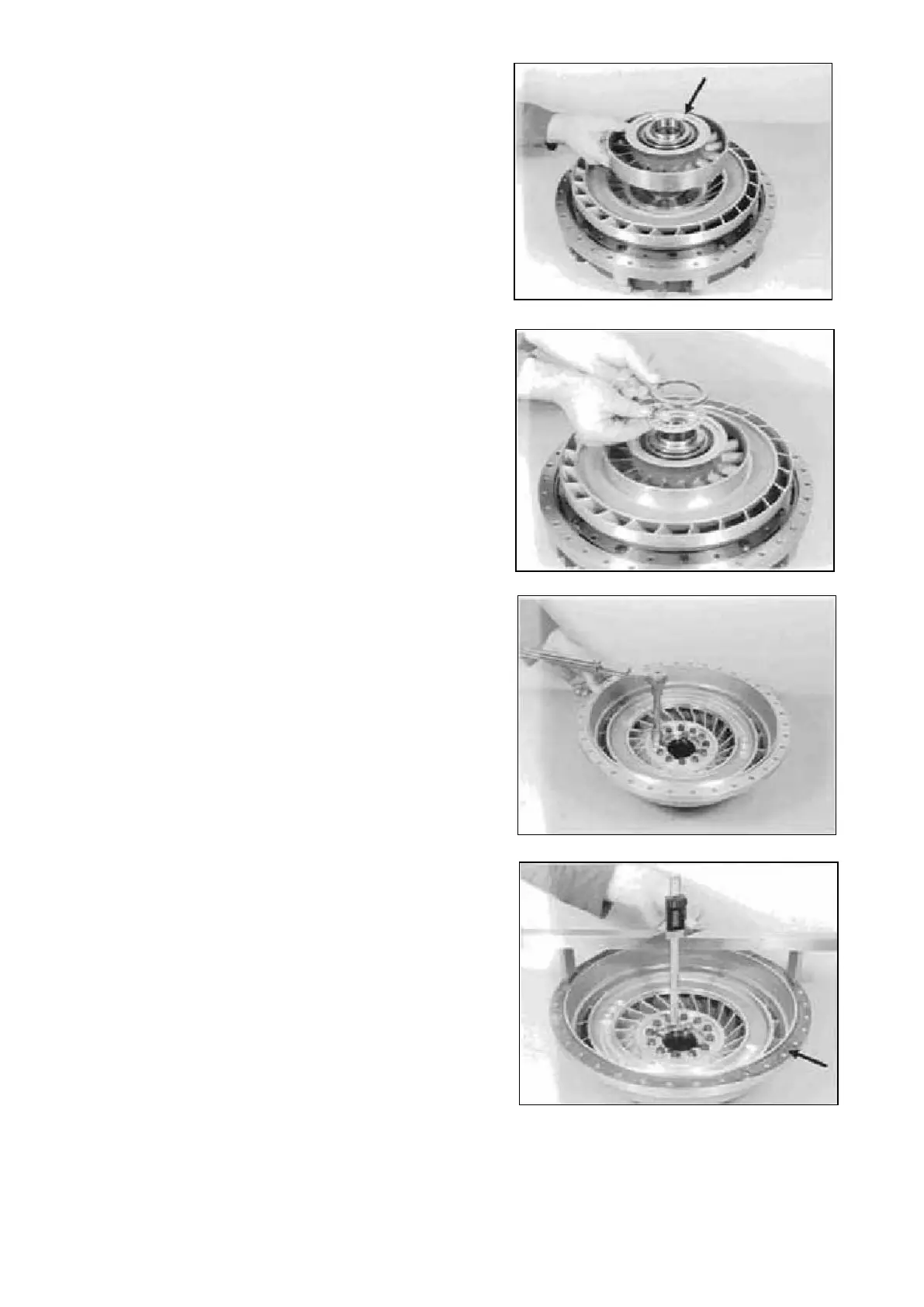

Insert stator with the reduced plane surface (Arrow)
showing upwards until contact is obtained.
Install axial roller bearing and housing washer
(62x85x4,75 mm).
Mount new flat gasket and fasten flange by means
of hex. head screws (mount flat washers) on the
impeller wheel.
Torque limit (M8xl8/8.8) 23 Nm
NOTE
Pay attention to the radial installation position !
Secure hex. Head screws with Loctite (Type-No.
270) !
Check end play - Stator max. 0,2 mm (Figure 39 ...
Example ―B‖)
Mount flat gasket (Arrow).
Determine Dimension from the flange mounted
surface (gasket) to the plane surface/impeller wheel
flange.
Dimension e.g. 88,05 mm
(S) Straightedge 5870 200 022
(S) Gauge blocks 5870 200 066
(S) Digital depth Gauge 5870 200 072
SPC000007 Transmission and Torque Converter
Page 84
