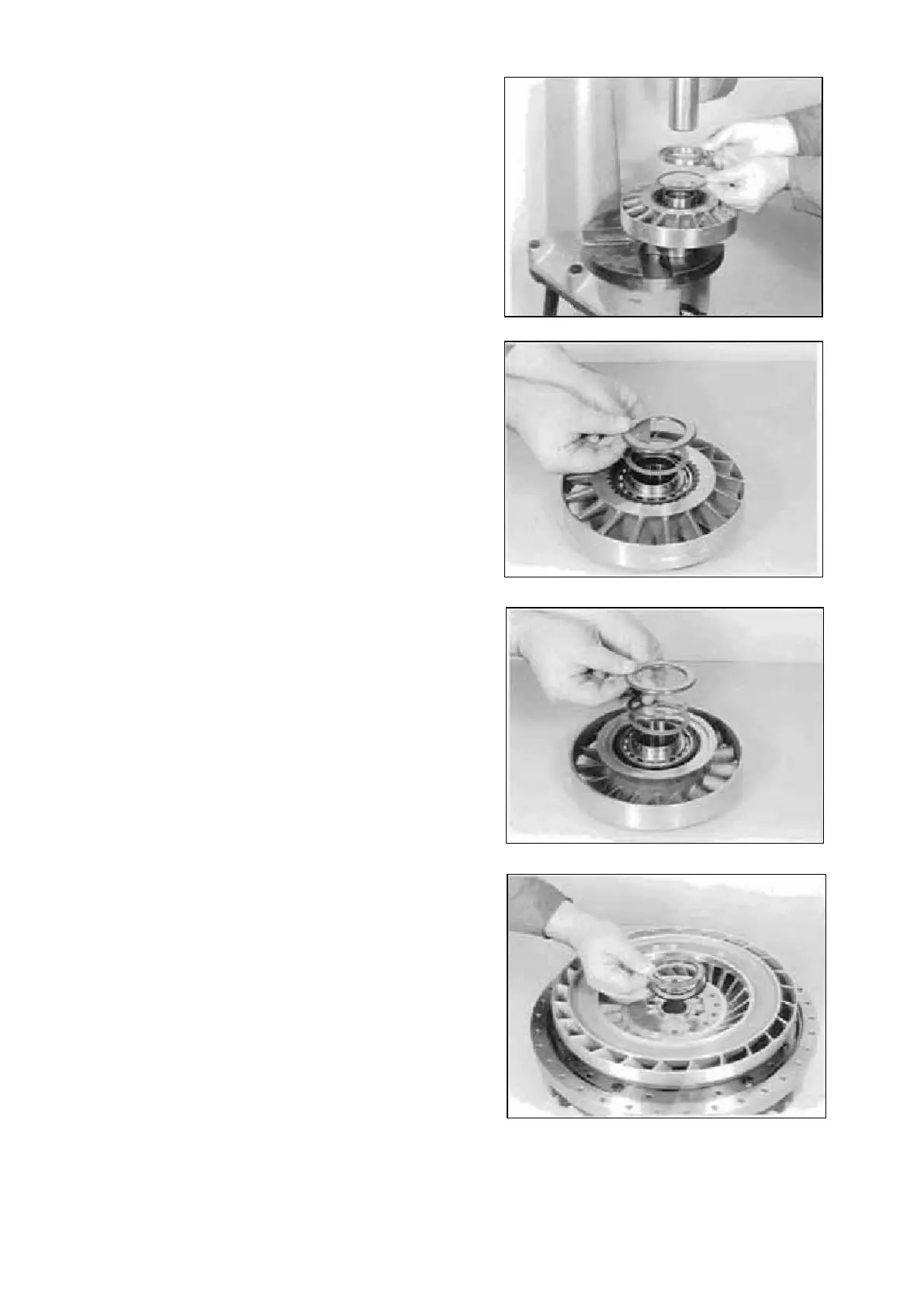

Mount thrust washer (3) s = 1,5 mm and press
bearing against shoulder.
Install shim (1) s = 1,0 mm and shaft washer
(60x85x4,75).
Opposite side :
Install shim (I) s = 1,0 mm, shim (10) (optional e.g. s
= 0,5 mm) and shaft washer (60x85x4,75).
NOTE :
The end play of the stator is determined by means
of shim (10) (e.g. s = 0,5 mm/empirical value) !
However, a later check (Figure 39 ... Example
"B") is absolutely essential !
Mount housing washer (62x85x4,75 mm) and axial
needle bearing (60x85x3 mm).
