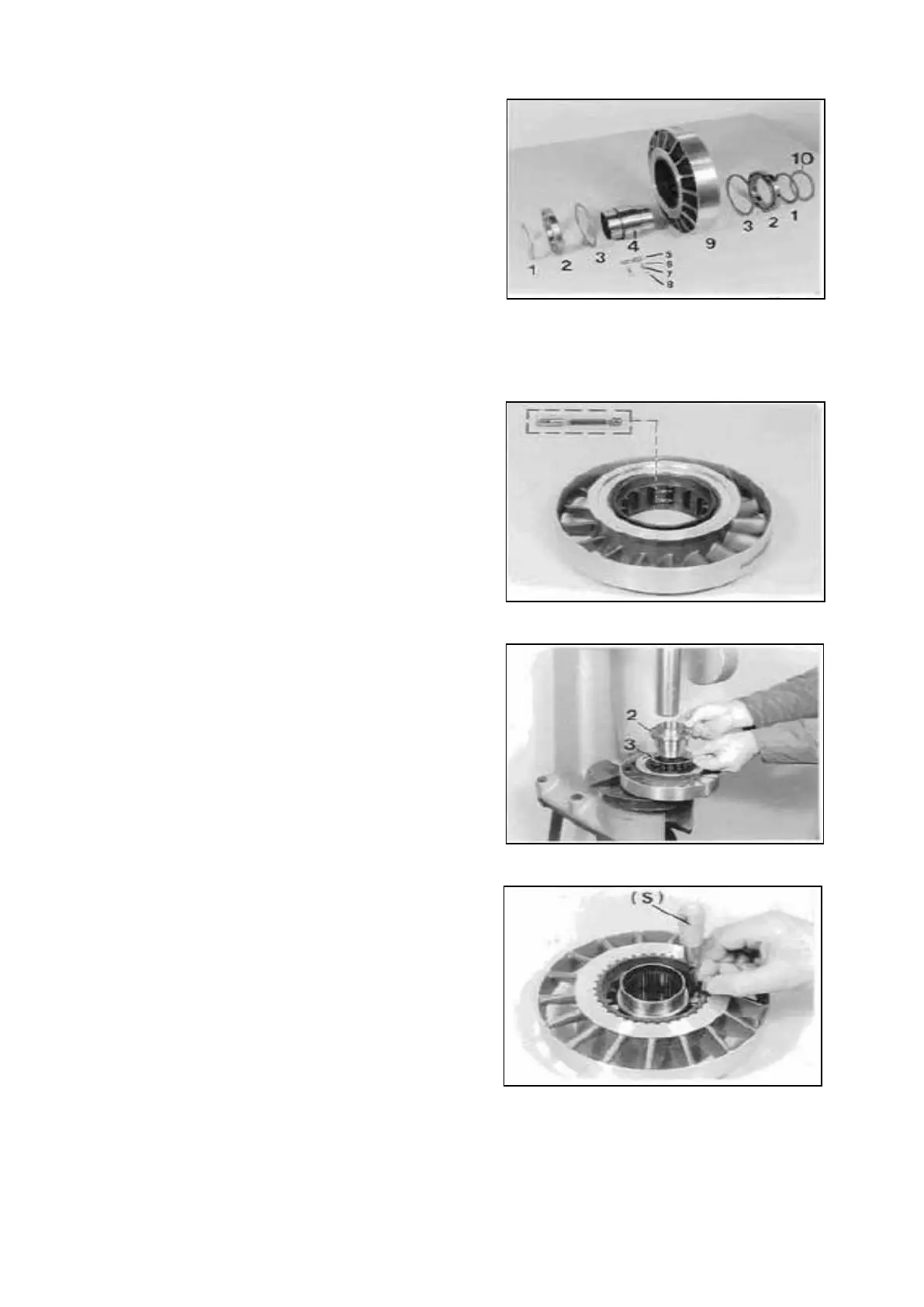

The Illustration on the left shows the components of
the stator.
1 = Shim (constant, s = 1,0 mm)
2 = Ball bearing
3 = Thrust washer (s = 1,5 mm)
4 = Free wheel inner ring
5 = Cylindrical rollers (28 pieces)
6 = Spring cap (28 pieces)
7 = Compression spring (28 pieces)
8 = Bearing roller (28 pieces)
9 = Stator
10 = Shim (optional, e.g. s = 0,2 mm)
NOTE ;
The stator end play is determined by means of shim
10, see Example "B"
Insert bearing rollers, springs and spring caps (8, 7,
and 6) according to the Illustration on the left with
grease into the bores of the free wheel hub.
Place ball bearing (2) on the long hub side (24 mm)
against shoulder, install thrust washer (3) s = 1,5
mm and press free wheel inner ring against
shoulder.
Press spring caps by means of guide plate ( S ) into
the free wheel ring until the cylindrical roller pairs (5)
can be installed.
NOTE :
The second roller pair has to be installed opposite to
the first roller pair - makes the installation of the
remaining roller pairs easier!
( S ) Guide plate 5870 345 020
