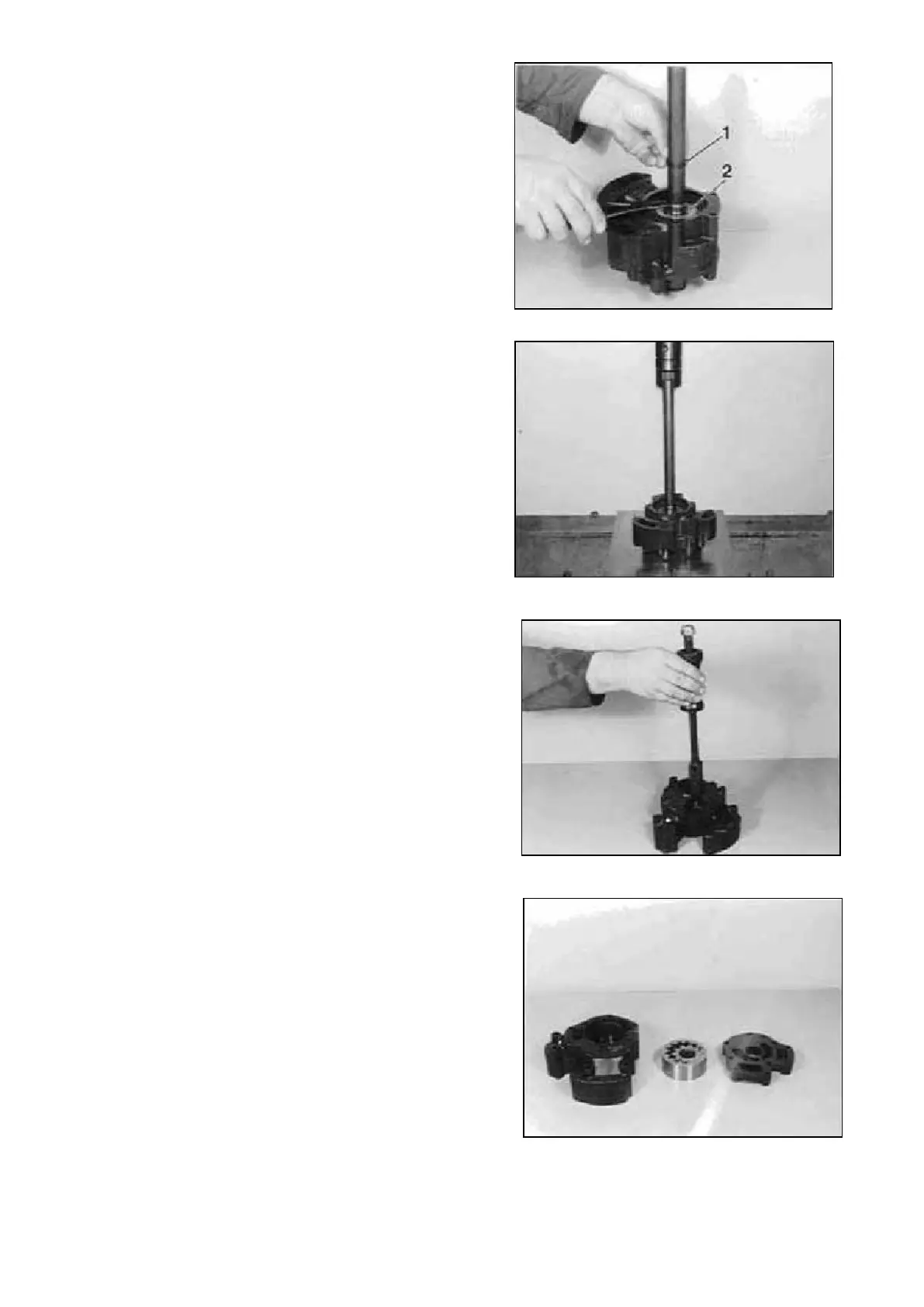

Remove rectangular ring (I) and circlip (2).
(S) Set of external 5870 900 016
snap ring pliers
Press shaft out of the pump case.
Check converter charge pump and control pressure
pump (Figure 11 ... 14):
Remove the two straight pins by means of striker
(Figure 11), loosen hex. head screws and remove
cover (Figure 12) !
(S) Striker 5870 650 001
NOTE :
If traces of wear should be encountered in the pump
case or on the housing cover, the complete pump
has to be renewed !
SPC000007 Transmission and Torque Converter
Page 88
