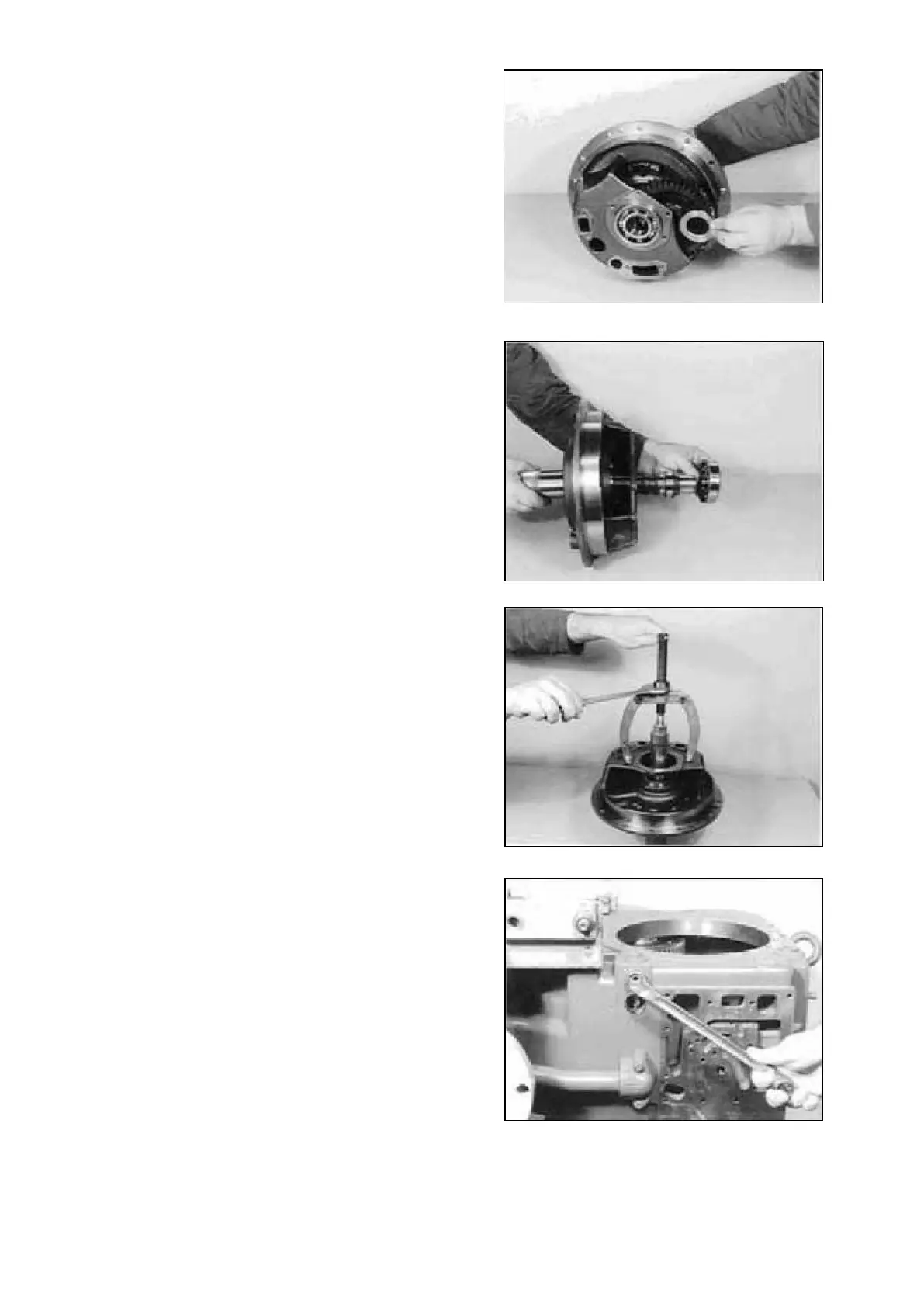

Remove disk and spur gear.
NOTE :
According to the Version, with or without disk see
corresponding Spare Parts List!
Remove ball bearing and drive shaft.
Pull roller bearing out of the bore.
(S) Internal puller 5870 300 014
(S) Back-up tool 5870 300 003
Remove temperature connection.
SPC000007 Transmission and Torque Converter
Page 90
