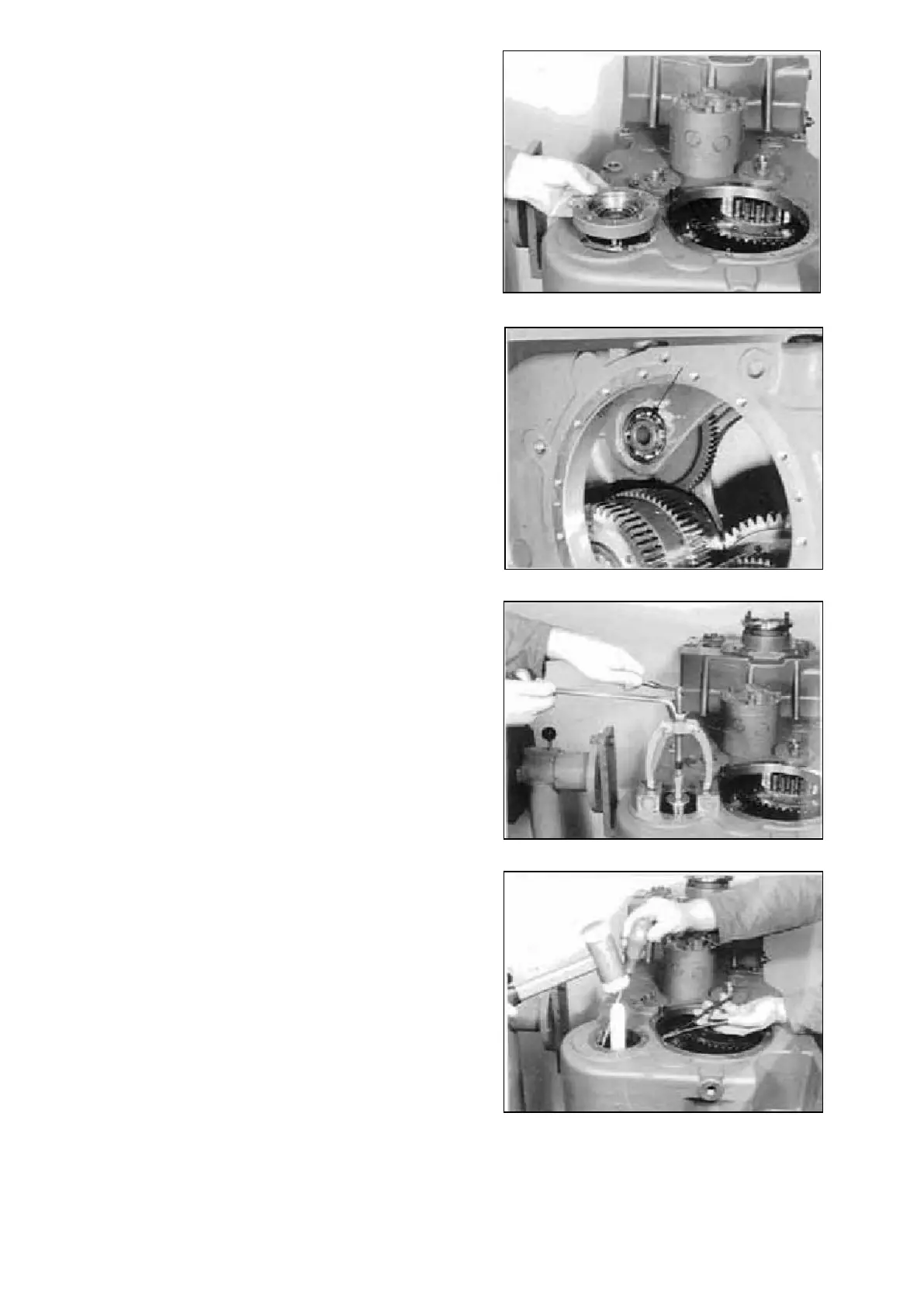

3.1.3 LATERAL POWER TAKE-OFF
Loosen socket head screws and remove pump
flange.
Squeeze out circlip (housing interior).
Pull drive dog, by means of internal puller out of the
ball bearing, resp. spur gear and remove released
spur gear.
(S) Internal puller 5870 300 006
(S) Back-up tool 5870 300 003
Expand snap rings, align them centrically, tap the
ball bearing loose and drive it out of the housing
bore.
NOTE:
Assistant necessary!
SPC000007 Transmission and Torque Converter
Page 94
