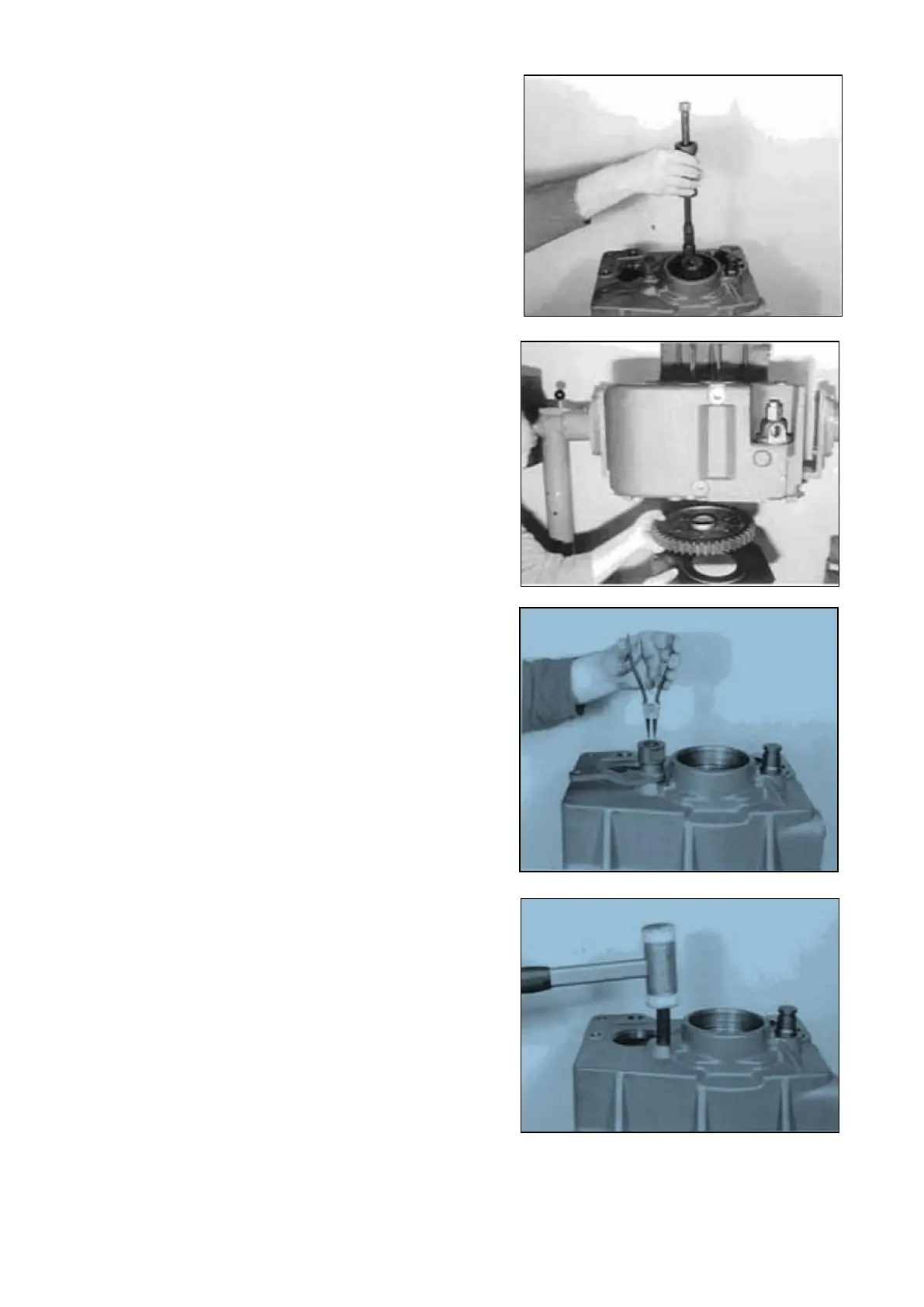

Drive output shaft by means of striker out of the
output gear and remove it.
ATTENTION
In case of the Version with a mechanical
speedometer, the speedometer-drive shaft
(complete) has to be removed prior to the
disassembly of the output shaft !
( S ) Puller 5870 023 017
( S ) Puller 5870 023 026
( S ) Striker 5870 650 001
Remove output gear and plate.
Squeeze out circlip and remove brake cam.
( S ) Set of external 5870 900 013
snap ring pliers
Drive the pin out of the housing bore and remove it.
Transmission and Torque Converter SPC000007
Page 103
