3.2.8 Lateral power take-off

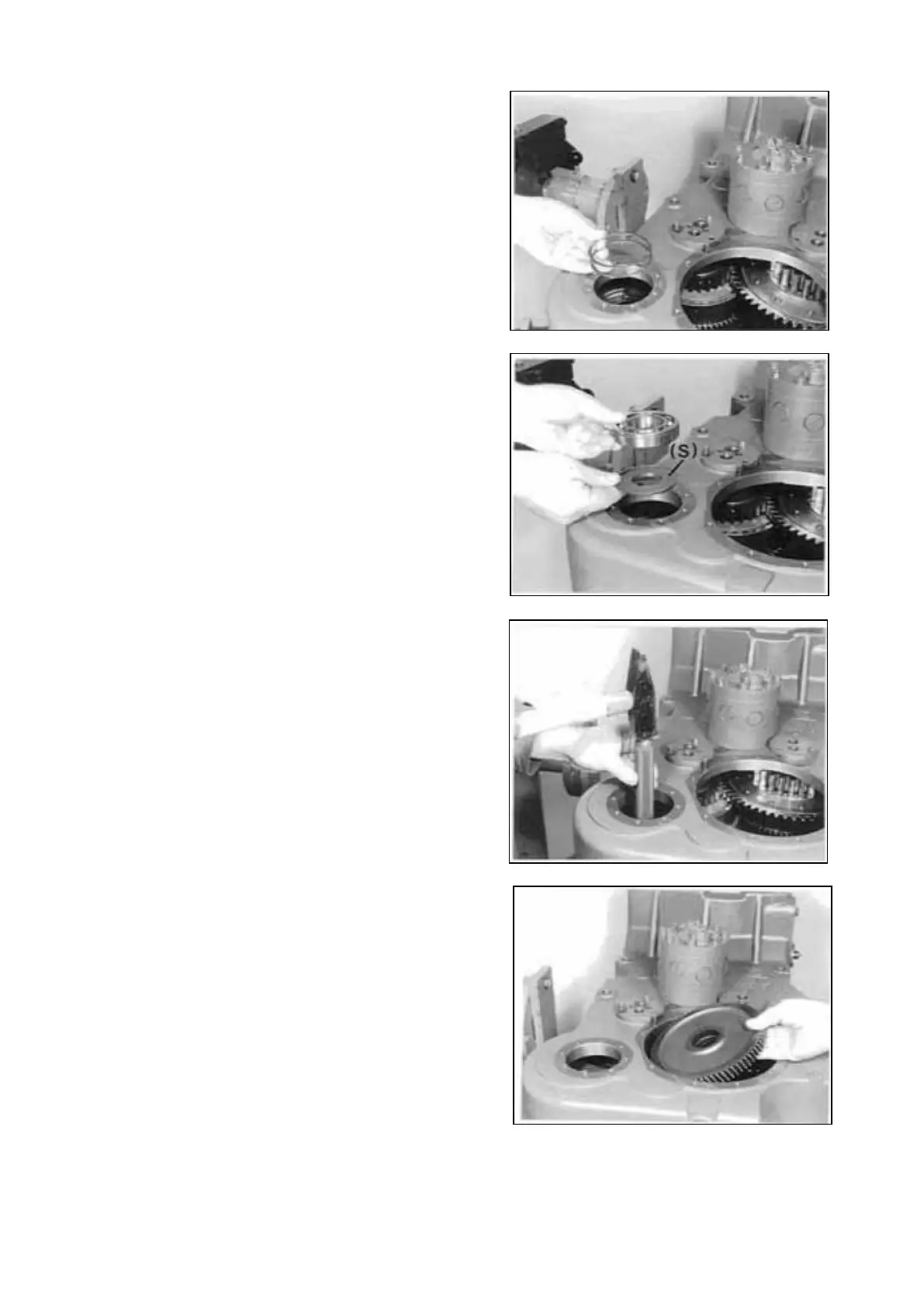

Squeeze the two snap rings into the groove of
the lower housing bore.
Lay expanding ring ( S ) upon the snap rings and
mount ball bearing, with the recess showing
upwards (Figure 217).
Now, tap and drive ball bearing in, until the upper
snap ring engages in the ball bearing groove (Figure
218).
( S ) Expanding ring 5870 345 038
Position spur gear with the long hub side showing
downwards.
Transmission and Torque Converter SPC000007
Page 147
Figure 216
Figure 217
Figure 218
Figure 219
