3.2.7 Emergency steering pump

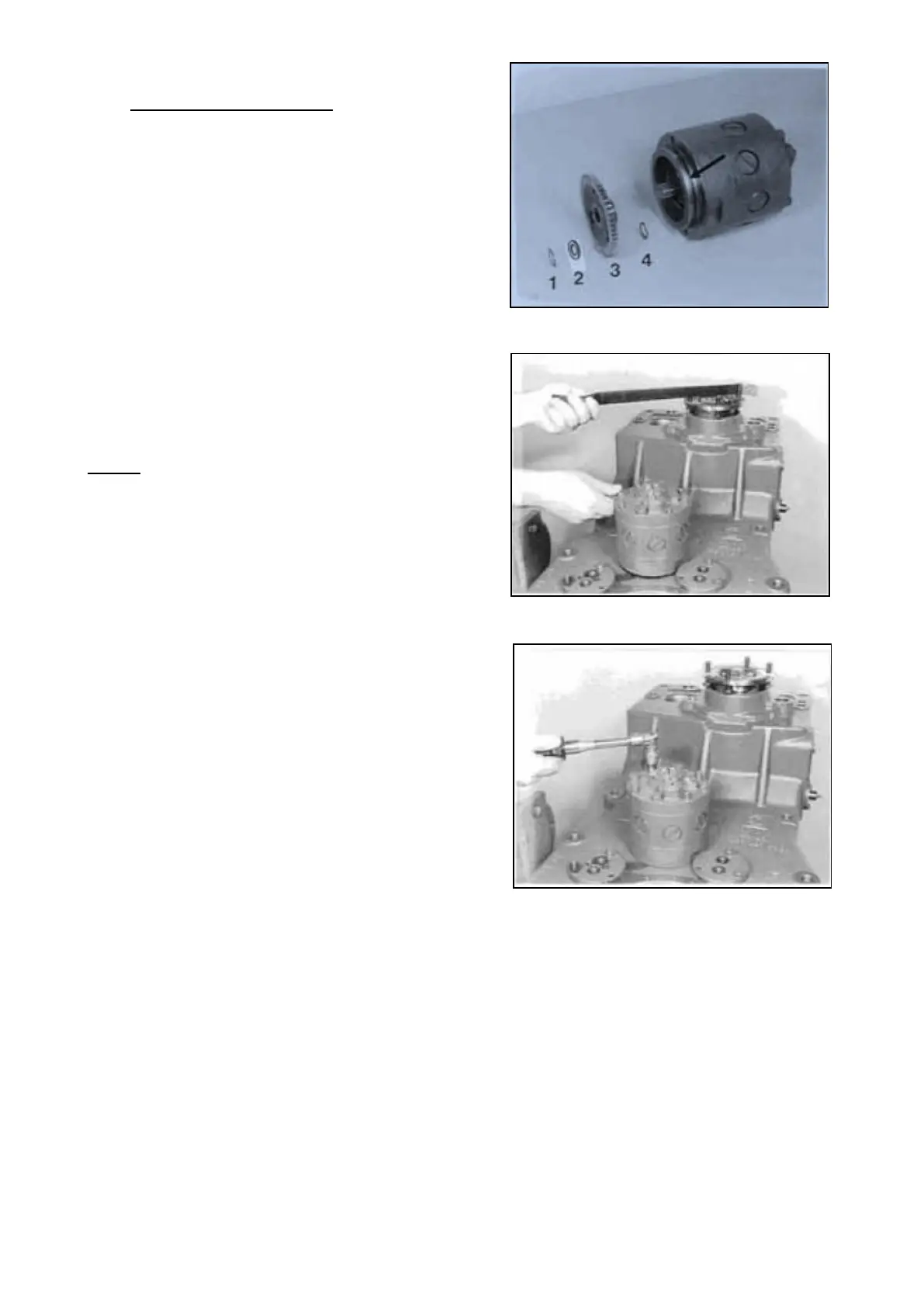

Squeeze in circlip (4), assemble spur gear (3) until
contact is obtained and fix it free of play by means
of disk (2) and circlip (1).
Introduce O-Ring into the annular groove (Arrow)
and grease it.
Insert studs (4 pieces) with Loctite (Type-No. 241)
and assemble emergency steering pump until
contact is obtained.
NOTE :
Pay attention to the radial installation position !
A slight rotation on the final drive makes the
threading up easier !
Fasten emergency steering pump by means of hex.
nuts.
Torque limit (M8/ 8) 23 Nm
SPC000007 Transmission and Torque Converter
Page 146
