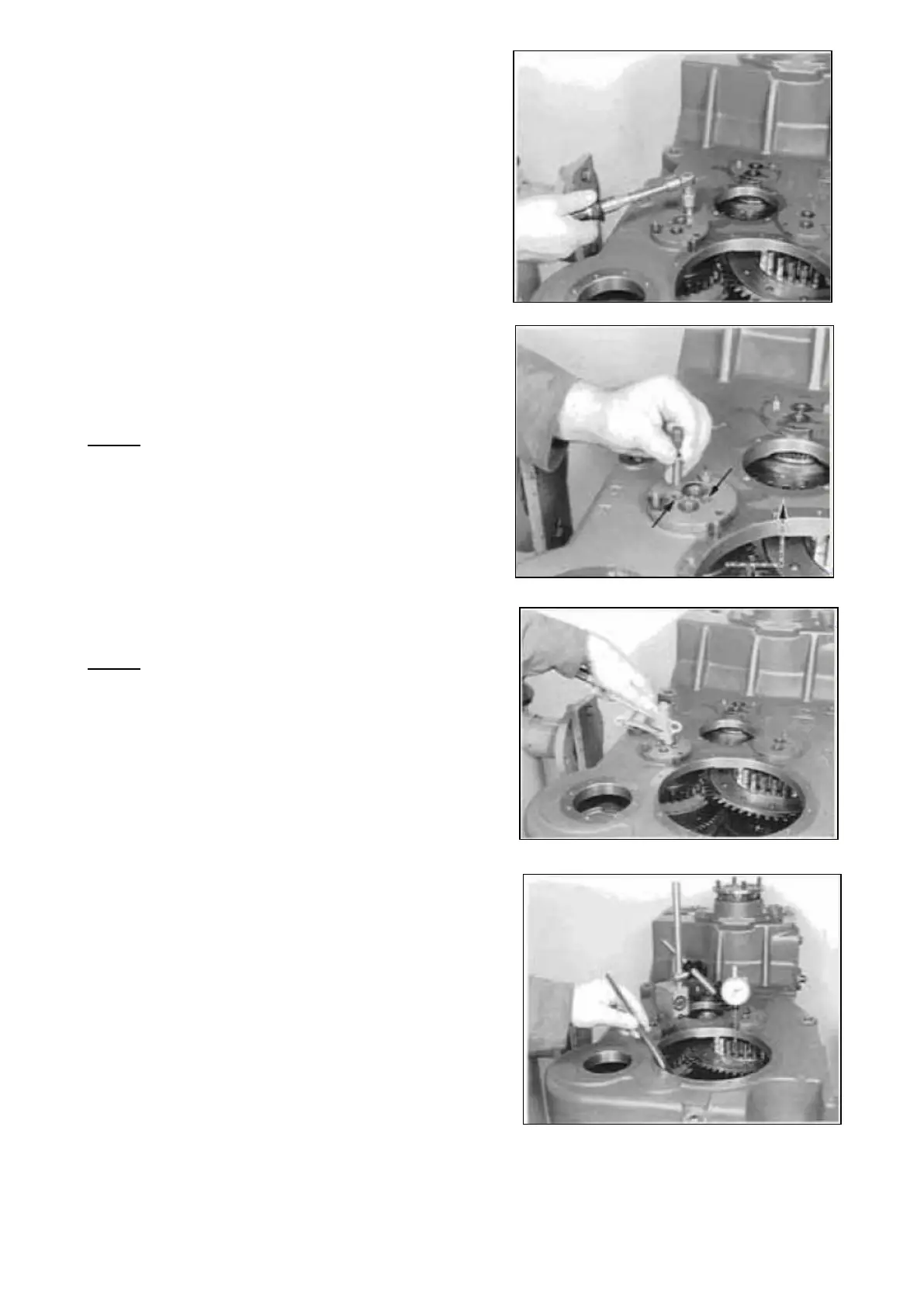

Fasten axle by means of hex. nuts (2 pieces).
Torque limit (M8/8) 23 Nm
Insert cylindrical rollers with the conical surface
showing downwards in the bores (Arrows), and fix
them by means of set screws.
Torque limit 10 Nm
NOTE :
To ensure the correct fixing of the spur gear, the
spur gear K1 must be lifted, at the uniform
tightening of the two set screws, in direction of the
Arrow !
Insert set screws with Loctite (Type-No. 241)!
Check operation of the clutches K1 and KV by
means of compressed air.
NOTE ;
If the components are correctly installed, the closing,
resp. opening of the clutches is clearly audible I
Check end play of the clutches 0,1 ... 0,3 mm again
and correct if necessary !
Transmission and Torque Converter SPC000007
Page 145
