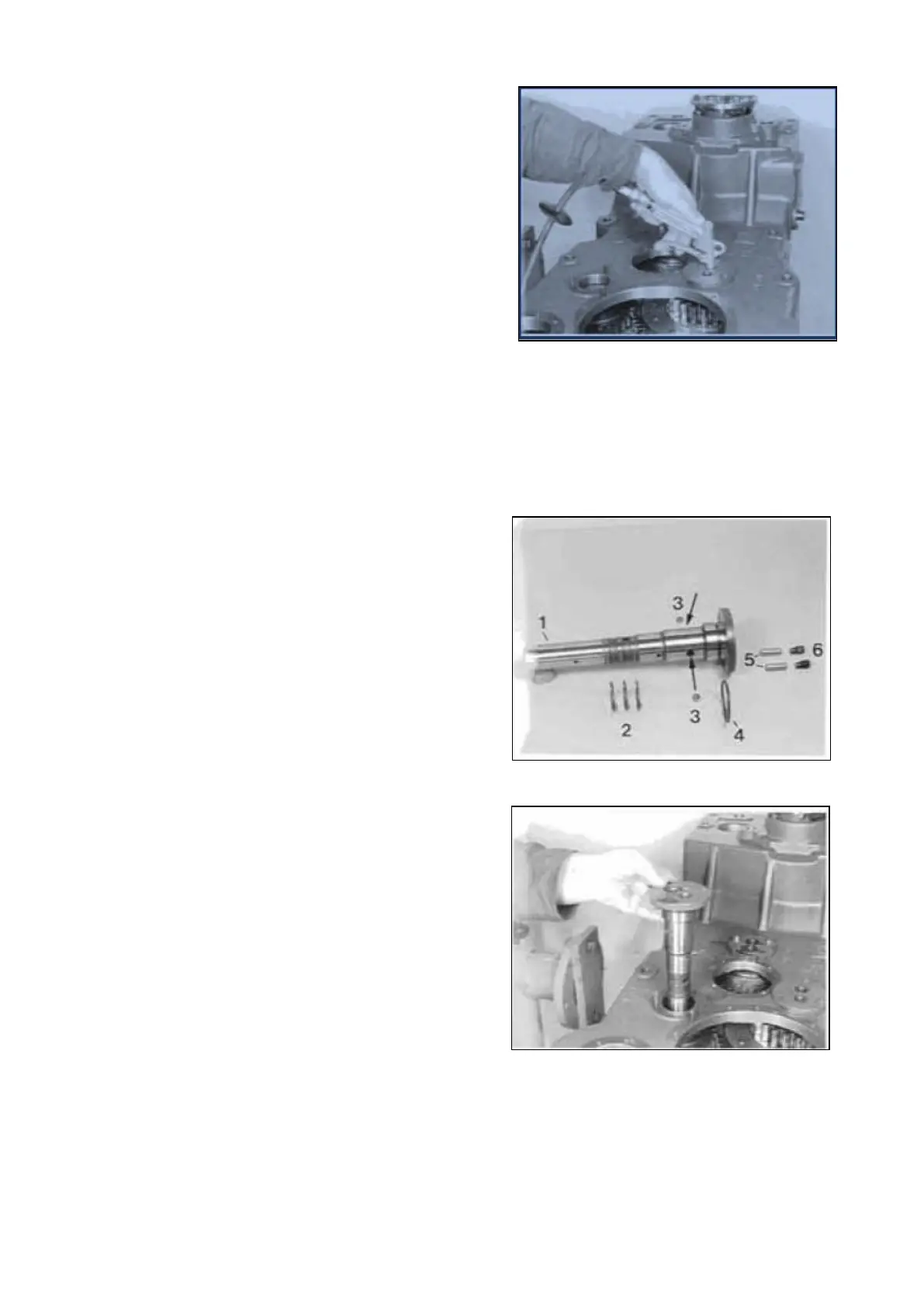

Check operation of clutches KR and K2 by means of
compressed air.
NOTE :
If the components are correctly installed, the closing,
resp. opening of the clutches is clearly audible !
Install axle KV/KI (Figure 207 ... 210)
NOTE :
The following steps (Figure 207 ... 210) are
describing the installation of the clutch axle for the
Version with internal Spur gear fixing K1 (see also
Figure 190 and 191) !
In case of the Version without Spur gear fixing,
install the clutch axle KV/KI accordingly as KR/K2
(Figure 202 ... 206).
The illustration on the left shows the components.
1= Clutch axle
2 = Rectangular rings (3 pieces)
3 = Ball (2 pieces)
4 = O-Ring
5 = Cylindrical roller (2 pieces)
6 = Set screw (2 pieces)
Squeeze in and engage rectangular rings. Install O-
Ring.
Insert the two balls with grease in the bores (Arrow).
NOTE ;
Cylindrical rollers and set screws will be installed
later !
Heat housing bore (about 90) and introduce the
pre-assembled axle until contact is obtained.
NOTE :
Crease and align rectangular rings centrically prior
to the introduction of the axle !
SPC000007 Transmission and Torque Converter
Page 144
