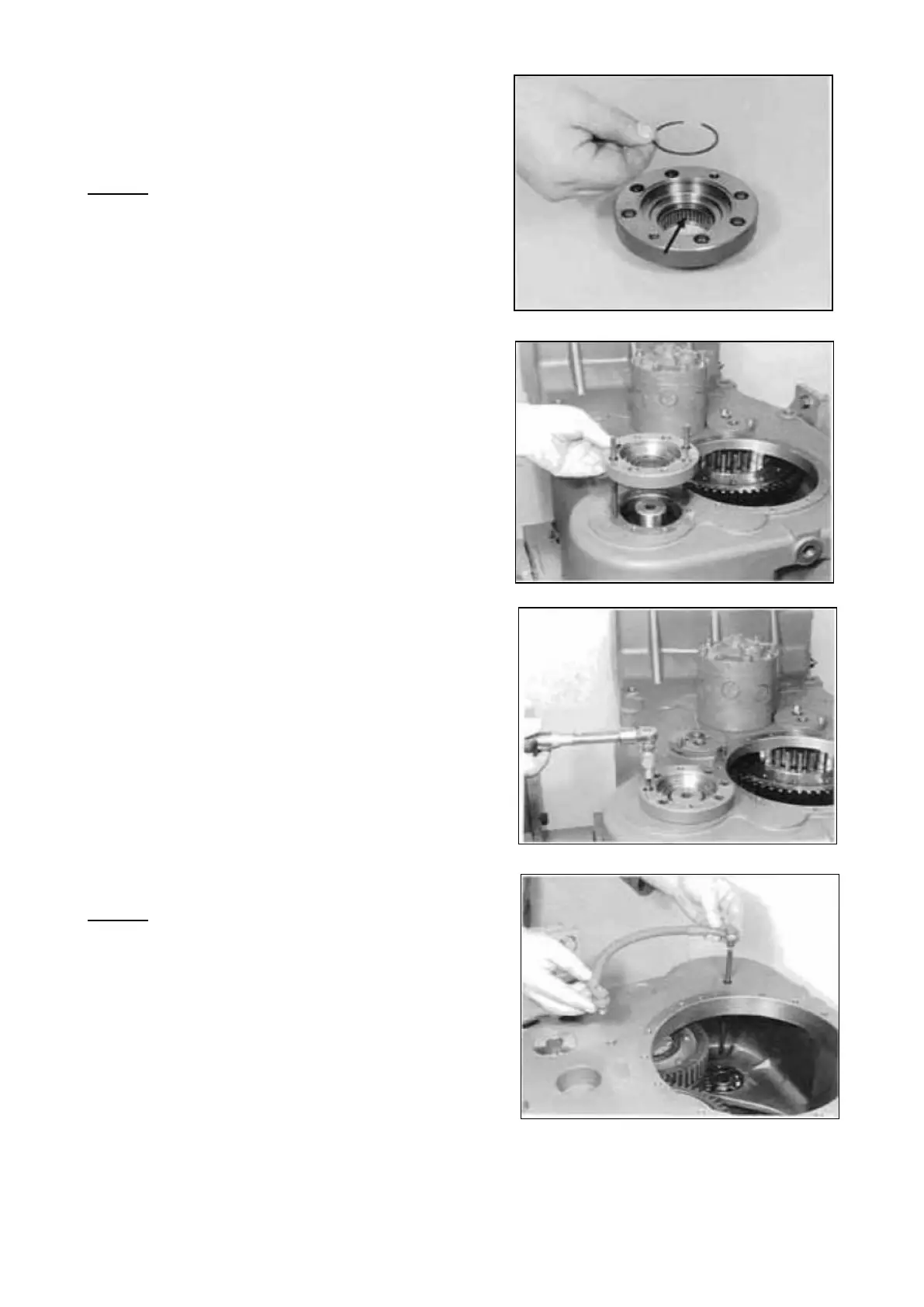

Press needle bush (Arrow) by means of drift into the
pump flange until contact is obtained and fix it by
engaging the snap ring.
NOTE ;
The needle bush is marked on one end face.
At the pressing in, the marking must be facing the
drift (upwards).
( S ) Drift 5870 506 060
Install two adjusting screws, mount flat gasket and
place pump flange against shoulder.
( S ) Adjusting screws (M8) 5870 200 011
Fasten pump flange by means of socket head
screws.
Torque limit (M8/8.8, DIN 6912) 16 Nm
Install oil supply - power take-off.
NOTE :
Use new sealing rings !
Transmission and Torque Converter SPC000007
