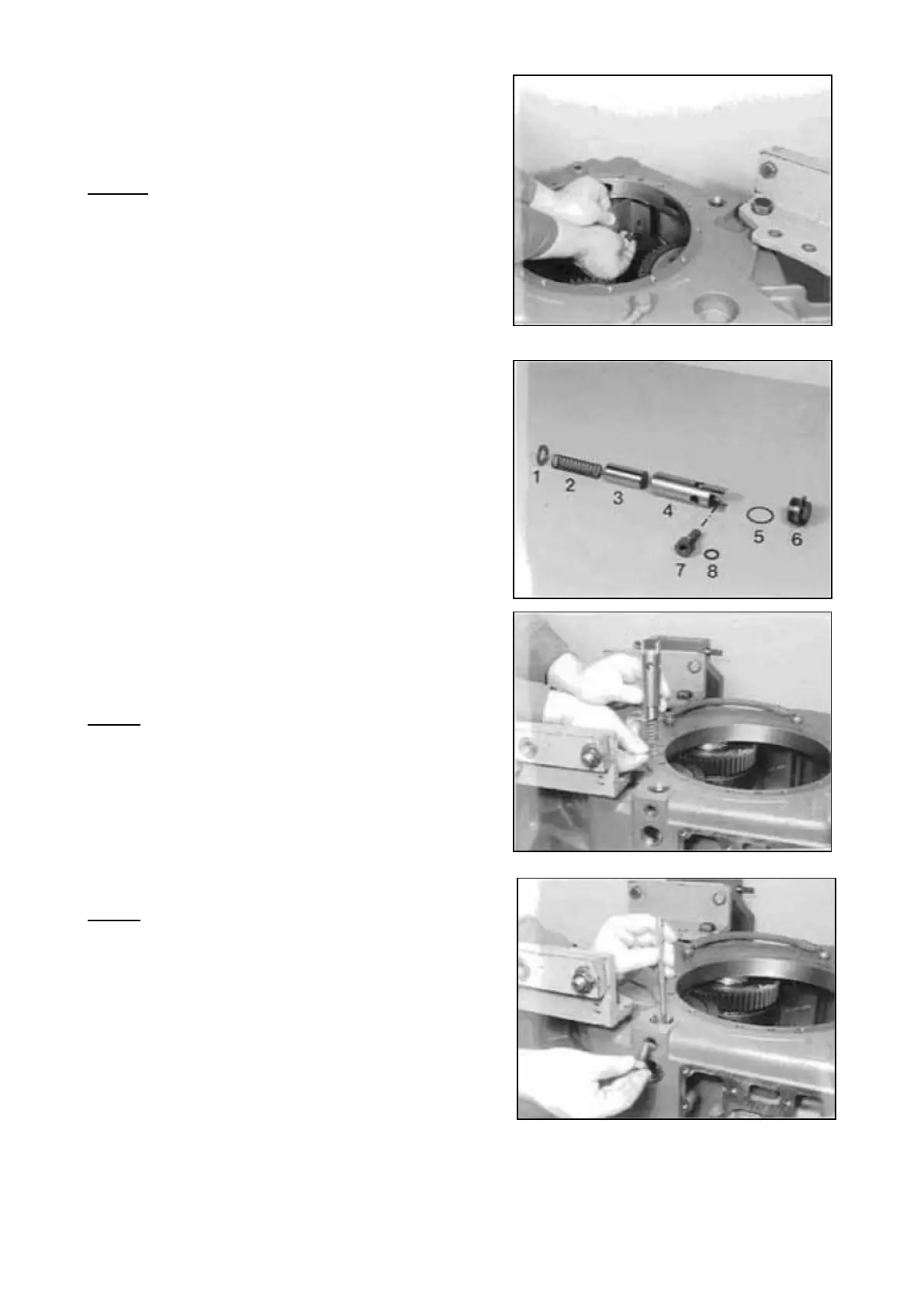

Fasten shield by means of hex. head screw (mount
flat washer).
Torque limit (M8/8.8) 23 Nm
NOTE :
Secure hex. head screw with Loctite (Type-No.
241) !
3.29 Converter control valve
Components :
1 = Disk
2 = Spring
3 = Spool
4 = Valve sleeve
5 = O-Ring
6 = Screw plug
7 = Connecting piece (temperature)
8 = O-Ring
Thread up disk, spring, spool and the valve
sleeve.
NOTE ;
Pay attention to the radial installation position of the
valve sleeve !
Install connecting piece.
NOTE :
Pay attention to the installation position, see Figure
229 !
SPC000007 Transmission and Torque Converter
Page 150
