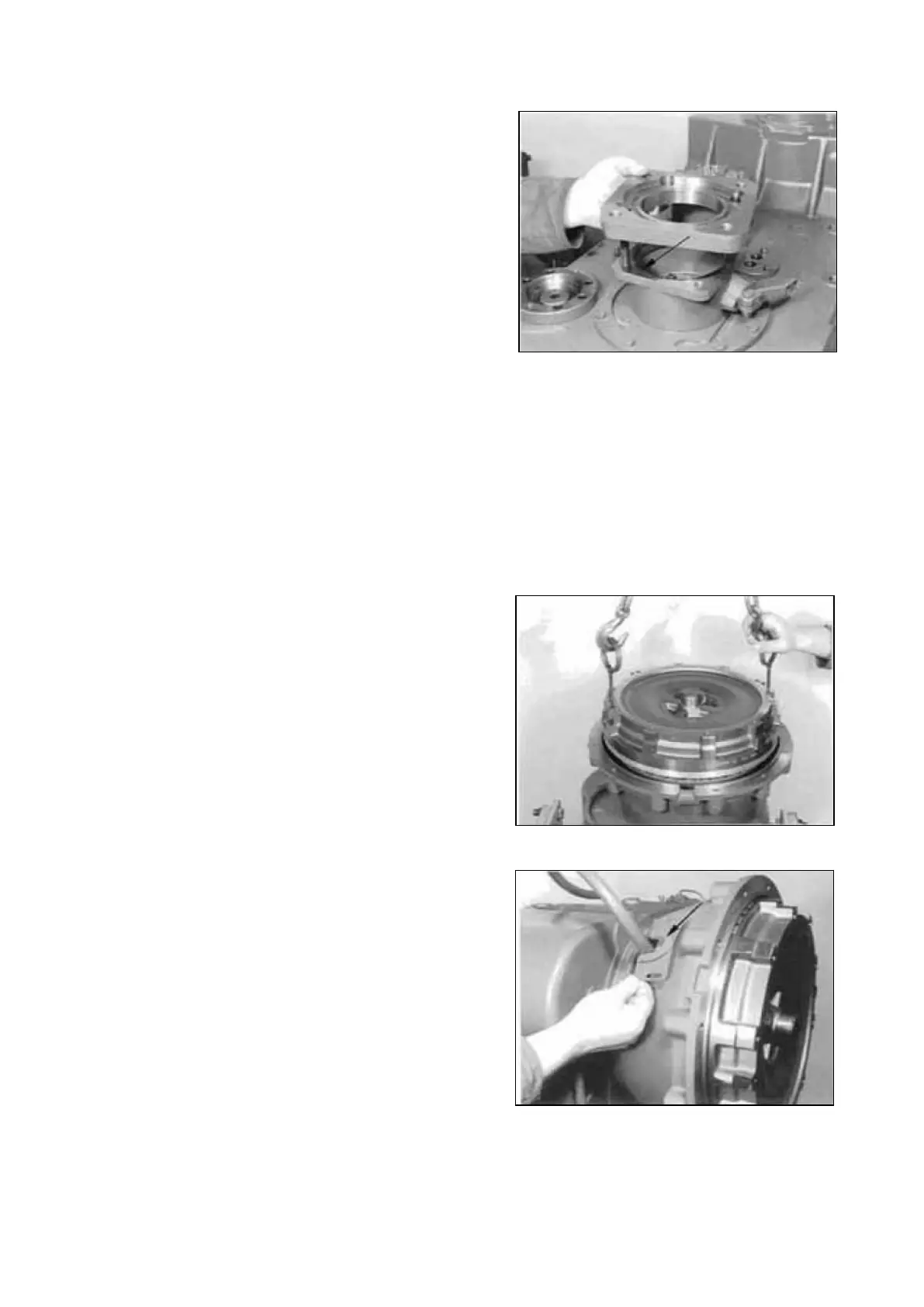

Insert O-Ring (Arrow), assemble pump flange and
fasten it by means of socket head screws.
Torque limit (Ml2/8.8 DIN 7984) 55 Nm
NOTE :
Pay attention to the radial installation position of the
pump flange !
Install sliding collar and sliding block prior to the
reassembly of the pump !
ATTENTION ;
The following Description and Illustrations show the
attachment and installation of different assemblies
and components, in relation to a specific
Transmission Variant.
Deviating steps of other possible Versions can be
carried out without difficulty by trained personnel.
In this connection, see also the Perspective
Illustration of the corresponding Spare Parts Lists.
Thread up torque converter by means of lifting
device until contact is obtained.
( S ) Set of eye bolts 5870 204 002
Mount edge protection (Arrow) and fasten cover
plate by means of hex. head screws (mount flat
washers).
Torque limit (M6/8.8) 9,5 Nm
Transmission and Torque Converter SPC000007
Page 163
