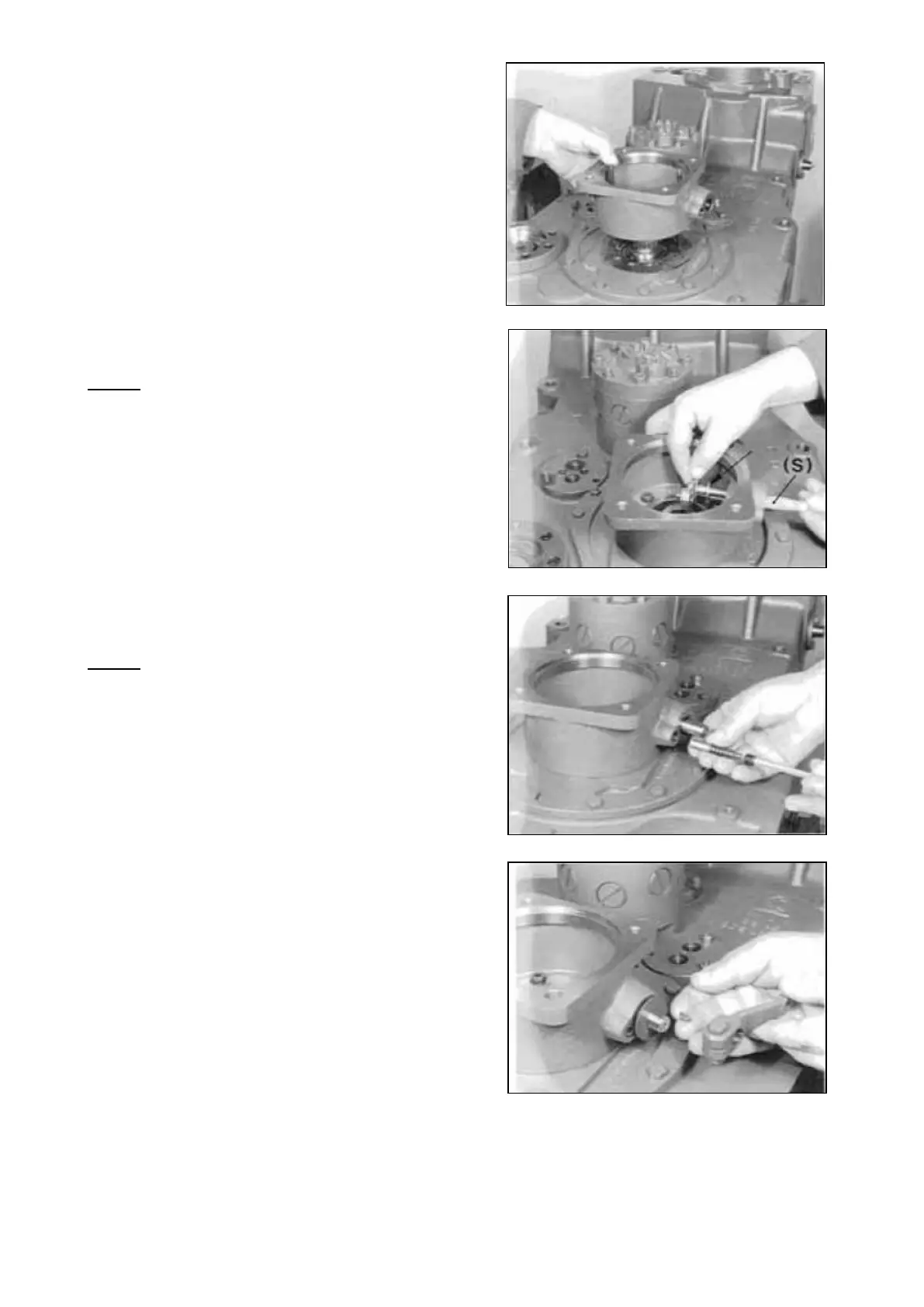

Install two adjusting screws and assemble flat
gasket.
Place housing against shoulder and fasten it by
means of socket head screws.
Torque limit (M8/I0.9) 34 Nm
Install shim (s = 3,0 mm), see Arrow and thread up
shift fork.
NOTE ;
Use installer ( S ) !
( S) Installer 5870 651 018
Thread up locking device composed of pin and two
compression springs, and fix it by means set screw.
NOTE ;
Insert the set screw with Loctite (Type-No. 242) !
Assemble shim (s = 1,5 mm) and install adjusting
spring.
Install shift lever free of pressure (a small end play
is permitted), and fix it by means of hex. head screw.
SPC000007 Transmission and Torque Converter
Page 162
