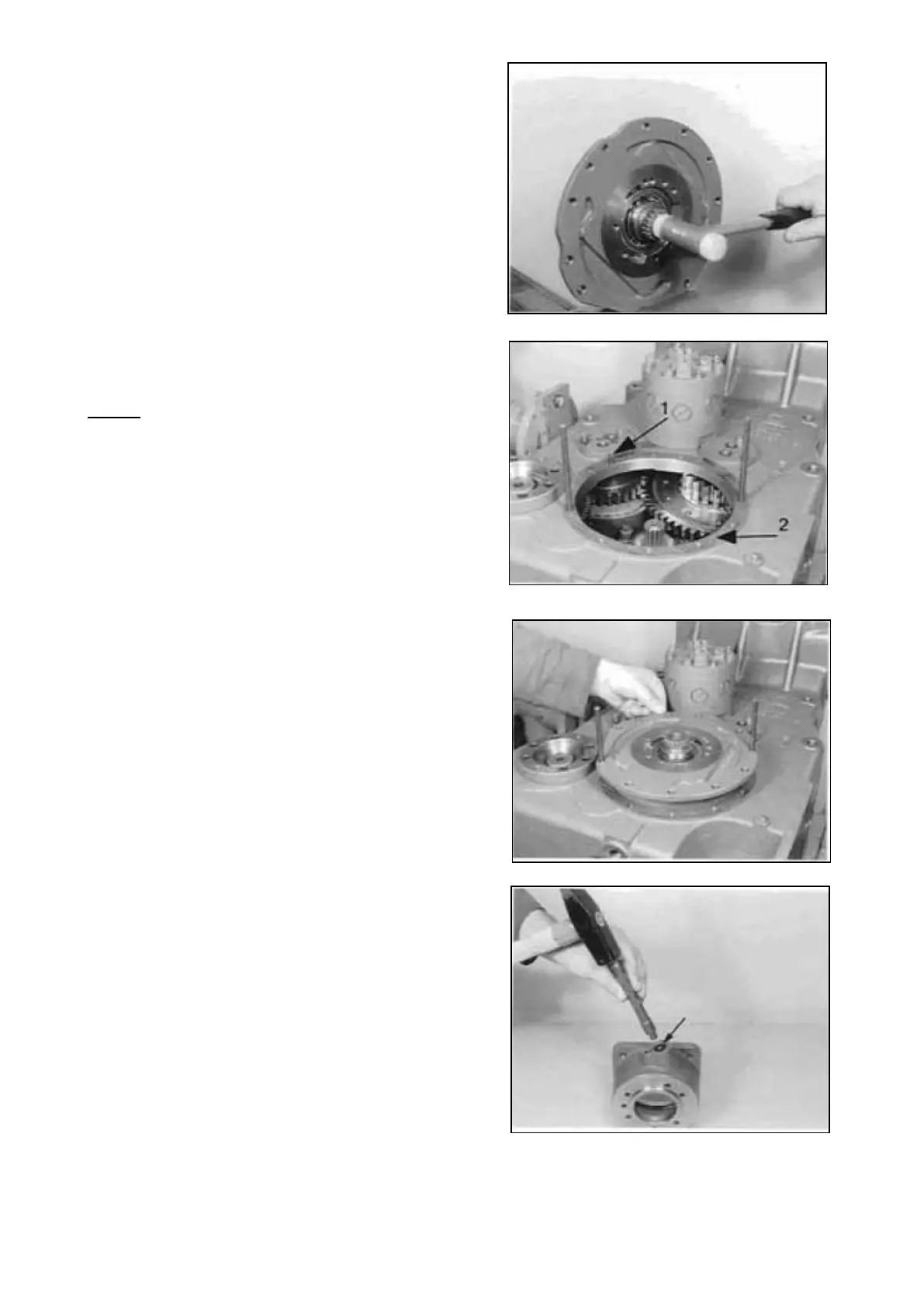

Relax the bearing by tapping.
Insert stud (Arrow 1), install two adjusting screws
and assemble flat gasket (Arrow 2).
NOTE ;
Insert stud with Loctite (Type-No. 242) !
Thread up pre-assembled power take-off and
fasten it by means of hex. head screws and hex.
nuts.
Torque limit (M8/8.8) 23 Nm
Install shaft seal (Arrow) flush-mounted with the
sealing lip showing inwards.
( S ) Driver 5870 048 074
Transmission and Torque Converter SPC000007
Page 161
